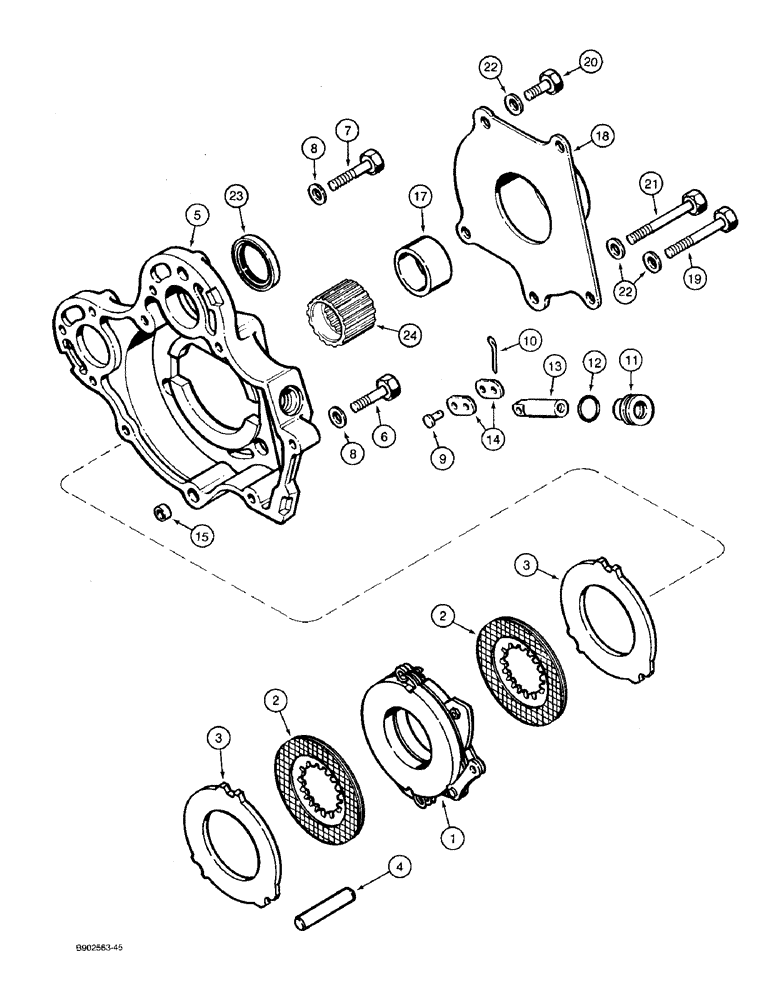

Запчасти Case 590 (7-04) - TRANSAXLE ASSEMBLY, PARKING BRAKE (07) - BRAKES

1

A158090

BRAKE ASSY.

BRAKE - emergency parking

1шт.

2

1341170C1

BRAKE DISC

PLATE - friction

2шт.

3

A178856

BACK PLATE

PLATE - backing

2шт.

4

A183228

PIN

- brake locating

3шт.

5

A188025

HOUSING

- brake

1шт.

6

826-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

5шт.

7

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

6шт.

9

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

2шт.

10

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

11

A190099

PLUG

ADAPTER - brake actuator

1шт.

Ref. #11 has an external O-ring 237-6012.

1шт.

12

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

1шт.

13

A190100

SHAFT

- brake actuator

1шт.

14

A186973

LINK

- parking brake

2шт.

15

A188330

SLEEVE

- dowel

2шт.

16

1995134C1

SPACER

- pinion shaft, 4 wheel drive, not shown (replaces A175481 spacer)

1шт.

17

1345869C1

SPACER

- pinion shaft, 2 wheel drive

1шт.

This part used on 2 wheel drive models only.

1шт.

18

A188960

COVER ASSY

COVER - parking brake

1шт.

This part used on 2 wheel drive models only.

1шт.

19

826-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12 - 1.75 x 90 mm, class 10.9

3шт.

This part used on 2 wheel drive models only.

1шт.

20

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

This part used on 2 wheel drive models only.

1шт.

21

828-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, 12 - 1.75 x 100 mm, class 10.9

1шт.

This part used on 2 wheel drive models only.

1шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

5шт.

This part used on 2 wheel drive models only.

1шт.

23

A158371

OIL SEAL,50.72mm ID x 66.77mm OD x 8.33mm Thk

- oil, input shaft

1шт.

24

A186646

GEAR

HUB - parking brake

1шт.
