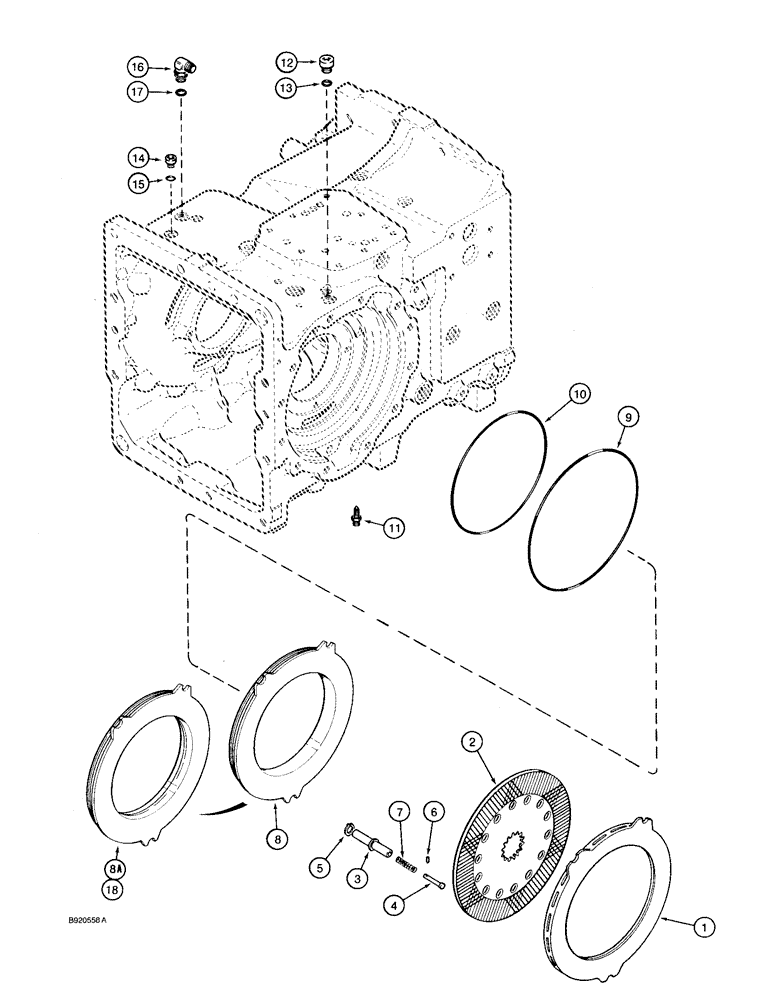

Запчасти Case 590 (7-02) - TRANSAXLE ASSEMBLY, DIFFERENTIAL BRAKE (07) - BRAKES

1

1995365C1

PLATE

- backing, brake (replaces A188736 plate)

2шт.

2

A188412

PLATE

- friction, brake

2шт.

1345810C1

DOWEL

TUBE ASSEMBLY - brake adjuster, Includes: Ref. 3 - 7

6шт.

3

A186555

TUBE

- brake adjuster

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER - brake adjuster

1шт.

5

100-1462

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - brake adjuster

1шт.

7

A190295

SPRING

- piston return

1шт.

8

1341069C1

PISTON

- brake, without internal groove, no longer used, order 1995361C1 piston, Ref. 8A

2шт.

8a

1995361C1

PISTON

- brake, with internal groove, see Ref. 18 for service replacement on transaxles with damage to brake piston bores

2шт.

9

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

Brake piston (Replaces A178873 O-ring) -277, 70 Duro, 11.484" ID x .139" Thk

2шт.

10

238-5273

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

Brake piston (Replaces A178874 O-ring) -273, 70 Duro, 9.734" ID x .139" Thk

2шт.

11

A188637

BLEEDER

VALVE - brake bleeder

2-4шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

87035062

PLUG,Hex, 1/2"-20 ORB

Includes Ref. 15 Hex Soc, 1/2"-20 ORB

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj., 3/4-16 inch flare x O-ring boss, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

121039A1S

PISTON

- brake, oversize with internal grove, use as service replacement for Ref. 8, 1341069C1, or Ref. 8A, 1995361C1, pistons on transaxles that have incurred damage to brake piston bores

2шт.

15

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
