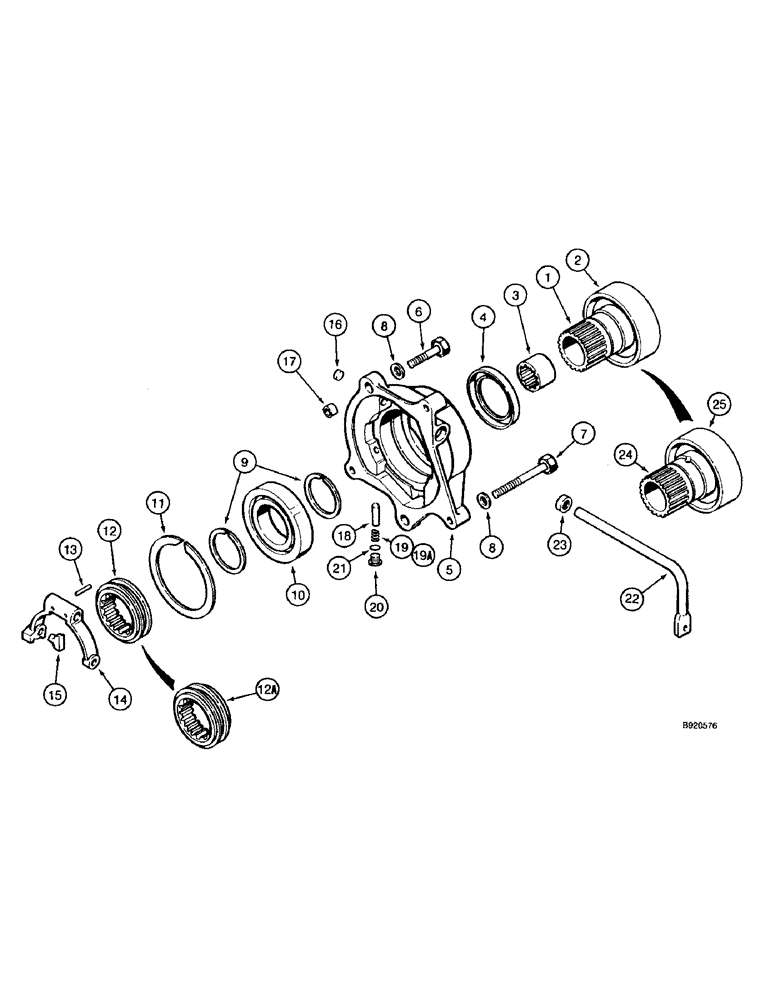

Запчасти Case 590 (6-66) - TRANSAXLE ASSEMBLY, SHIFT MECHANISM OUTPUT SHAFT, 4-WHEEL DRIVE MODELS (06) - POWER TRAIN

1

A188864

FLANGE

YOKE - output, four-wheel drive, without lube port, no longer used, order 1995266C1 yoke, Ref. 24, Includes: Ref. 2

1шт.

2

A188865

SLINGER

- yoke

1шт.

3

1995134C1

SPACER

- pinion shaft (replaces A175481 spacer)

1шт.

Part of lube service kit P/N 1995265C1.

1шт.

4

A186909

OIL SEAL,72.95mm ID x 101.88mm OD x 9.91mm Thk

SEAL - oil

1шт.

Part of lube service kit P/N 1995265C1.

1шт.

5

A188304

HOUSING

- four-wheel drive

1шт.

6

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

1шт.

7

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

- hex, 12 - 1.75 x 110 mm, class 10.9

4шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

5шт.

9

100-11275

SNAP RING,#275, Ext

Ring, Snap, , ball bearing (Replaces A31227) #275, Ext

2шт.

10

ST273A

BALL BEARING,70 mm ID x 125 mm OD x 24 mm

BEARING - ball, four-wheel drive output, replaces A186910

1шт.

11

100-21500

SNAP RING,5.00", Int, #500

Ring, Snap, (Replaces T38110) 5.00", Int, #500

1шт.

12

A190322

RING

COLLAR - four-wheel drive shift, with lip flange, no longer available, order 1995025C1 collar, Ref. 12A

1шт.

12a

1995025C1

RING,16T

COLLAR - four-wheel drive shift, grooved both sides

1шт.

13

138-2067

PIN,3/16" x 1", Coiled

2шт.

14

A188334

FORK

- front drive engagement

1шт.

15

A188527

FINGER

- differential lock collar

2шт.

16

41-1610

PLUG,Cup, 5/8", Stainless

- cup, 5/8 inch

1шт.

17

A188330

SLEEVE

- dowel

2шт.

18

A188074

PIN,9.53mm OD x 39mm L

- shift fork

1шт.

19

G47039

SPRING

- shift fork pin, 25/64 inch hole, 19/32 inch compressed length, if used

1шт.

19a

1995200C1

SPRING

- shift fork pin, 3/8 inch hole, 11/16 inch compressed length, if used

1шт.

20

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 21 Hex Soc, 9/16"-18 ORB

1шт.

22

A190448

CONTROL LEVER

LEVER - engagement, front drive

1шт.

23

A178864

OIL SEAL,15.88mm ID x 25.4mm OD x 6.35mm Thk

- oil, engagement lever

1шт.

24

1995266C1

FLANGE

YOKE - output, 4 wheel drive, with lube port, Includes: Ref. 25

1шт.

Part of lube service kit P/N 1995265C1.

1шт.

25

A188865

SLINGER

- yoke

1шт.

1995265C1

SERVICE KIT

KIT - service, lube, Includes: Ref. 3, 4 and 24 on this figure plus Ref. 22 shims on figure 6-56 and 1345879C1 bolt, Ref. 25, on figure 6-56

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
