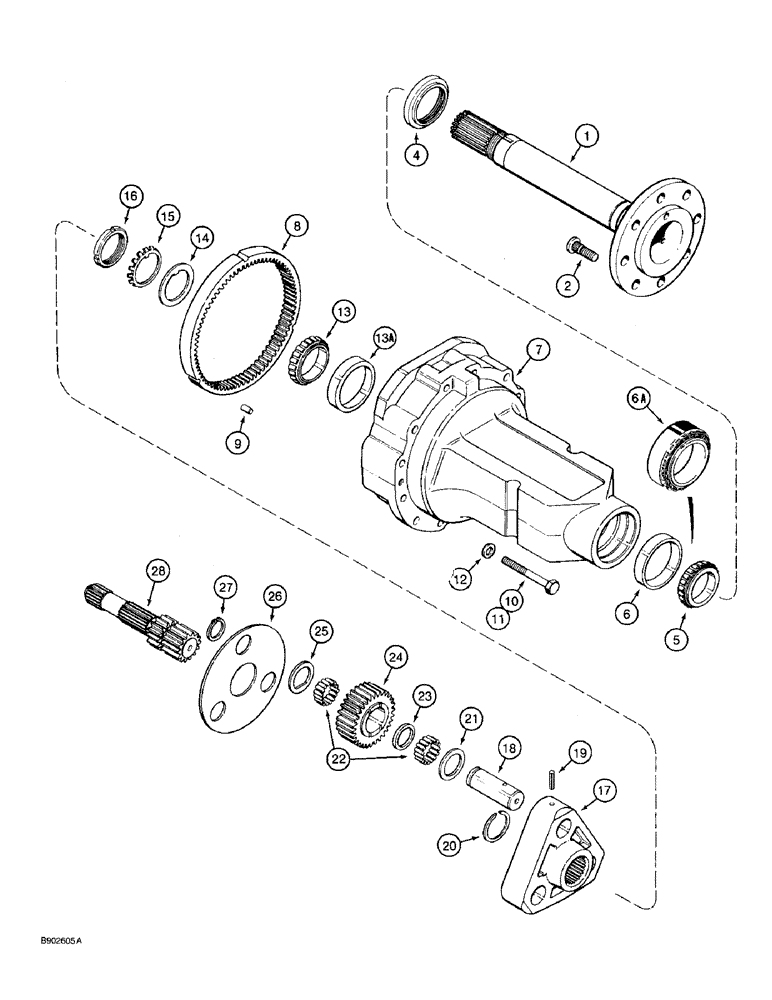

Запчасти Case 590 (6-64) - TRANSAXLE ASSEMBLY, TRANSAXLE REAR AXLE AND PLANETARY GEARS (06) - POWER TRAIN

1995094C1

SHAFT ASSY.

SHAFT ASSEMBLY - flanged, rear axle (replaces A188556 shaft), Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - rear axle

1шт.

2

3220372R2

STUD,M20 x 1.5 x 58mm, Cl 30

BOLT - rear axle

8шт.

4

A183953

OIL SEAL

SEAL - axle shaft

2шт.

5

102161H

BEARING ASSY,68.262mm ID x 21.996mm

BEARING - tapered roller, outer, production only, order Ref. 6A, 1997134C1 bearing assembly for service after August 1994

2шт.

6

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, production only with Ref. 5, outer bearing, for service of the outer cup and bearing, order Ref. 6A, 1997134C1, bearing assembly

2шт.

6a

1997134C1

BEARING ASSY,68.26mm ID x 110.03mm OD x 22.2mm W

BEARING - tapered roller, includes cup, service replacement for Ref. 5, bearing and Ref. 6, cup (not available until August 1994)

2шт.

7

A190130

AXLE CARRIER

HOUSING - rear axle, Includes: Ref. 8 and 9

2шт.

IS MOUNTED TO THE CHASSIS USING THE HARDWARE SHOWN ON FIGURE 6-24

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - planetary ring, (was part number A175955 which is no longer serviced separately, order A190130 housing)

2шт.

9

A175335

PIN,12.02mm OD x 25mm L

- planetary ring gear

6шт.

10

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

- hex, 16 - 2 x 130 mm, class 10.9

2шт.

11

828-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

- hex, 16 - 2 x 140 mm, class 10.9

22шт.

12

96-31066

WASHER,0.66" ID x 1.31" OD x 0.19" Thk

24шт.

13

190585R91

TAPERED BEARING,66.68 mm ID x 22.2 mm

BEARING - tapered roller, inner

2шт.

13a

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, (replaces A26744 bearing cup)

2шт.

14

A175230

WASHER, THRUST

WASHER - thrust bearing

2шт.

15

192-364

LOCK WASHER

WASHER - bearing lock, SAE No. TW-113

2шт.

16

131-1064

BEARING LOCK NUT

- tapered roller bearing, TN13

2шт.

17

A186686

CARRIER

ASSEMBLY - planetary gear, Includes: Ref. 18 and 19

2шт.

18

A186685

PIN

- planetary gear carrier

3шт.

19

135-376

GROOVED PIN,3/8" x 1 1/2", Type F

Pin, Grooved, 3/8" x 1 1/2", Type F

3шт.

20

A175241

RING, SNAP

RING - retaining, carrier to rear axle

2шт.

21

A186642

WASHER

- carrier pin

6шт.

22

A178187

ROLLER

BEARING - roller

384шт.

23

A178189

SEPARATOR

SPACER - roller bearing separator

6шт.

24

A178193

GEAR

- planetary, 28 teeth

6шт.

25

A175338

WASHER

D-WASHER - carrier pin

6шт.

26

A186651

DISC

SHIELD - planetary gear

2шт.

27

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Planet gear (Replaces D25280) #175, Ext

6шт.

28

A188558

SHAFT

- sun gear, right-hand

1шт.

29

A188559

SHAFT

- sun gear, left-hand, not shown

1шт.
