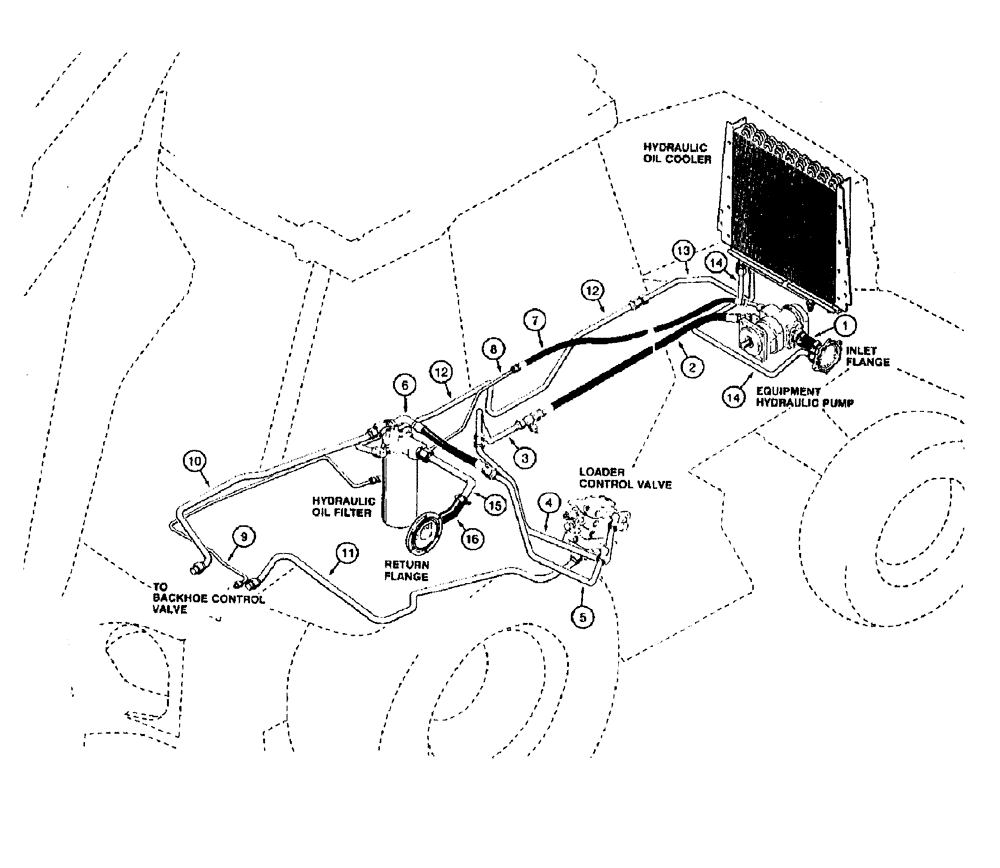

Запчасти Case 590 (1-10) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYDRAULIC PUMP TO OIL FILTER AND CONTROL VALVES (00) - PICTORIAL INDEX

1

Hose at equipment hydraulic pump inlet to inlet adapter flange on chassis, Page 8-3

1шт.

2

Hose at equipment hydraulic pump large section outlet, Page 8-3

1шт.

3

Tube from pump outlet hose to loader valve, Page 8-5

1шт.

4

Tube from pump outlet at loader valve inlet, Page 8-5

1шт.

5

Return tube to filter from loader valve outlet, Page 8-5

1шт.

6

Hose from loader valve return to filter, Page 8-5

1шт.

7

Hose at equipment hydraulic pump small section outlet, Page 8-7

1шт.

8

Tube at small pump section hose to backhoe control valve swing section inlet tube, Page 8-7

1шт.

9

Tube to backhoe control valve swing section inlet, Page 8-7

1шт.

10

Backhoe return tube to filter, Page 8-7

1шт.

11

Tube at backoe valve inlet section from loader valve power beyond tube, Page 8-7

1шт.

12

Oil filter tube to cooler inlet tube, Page 8-9

1шт.

13

Oil cooler inlet tube, Page 8-9

1шт.

14

Oil cooler return to reservoir tube, Page 8-9

1шт.

15

Return to tank tube at hydraulic oil filter, Page 8-9

1шт.

16

Return to tank hose at return flange on chassis, Page 8-9

1шт.
