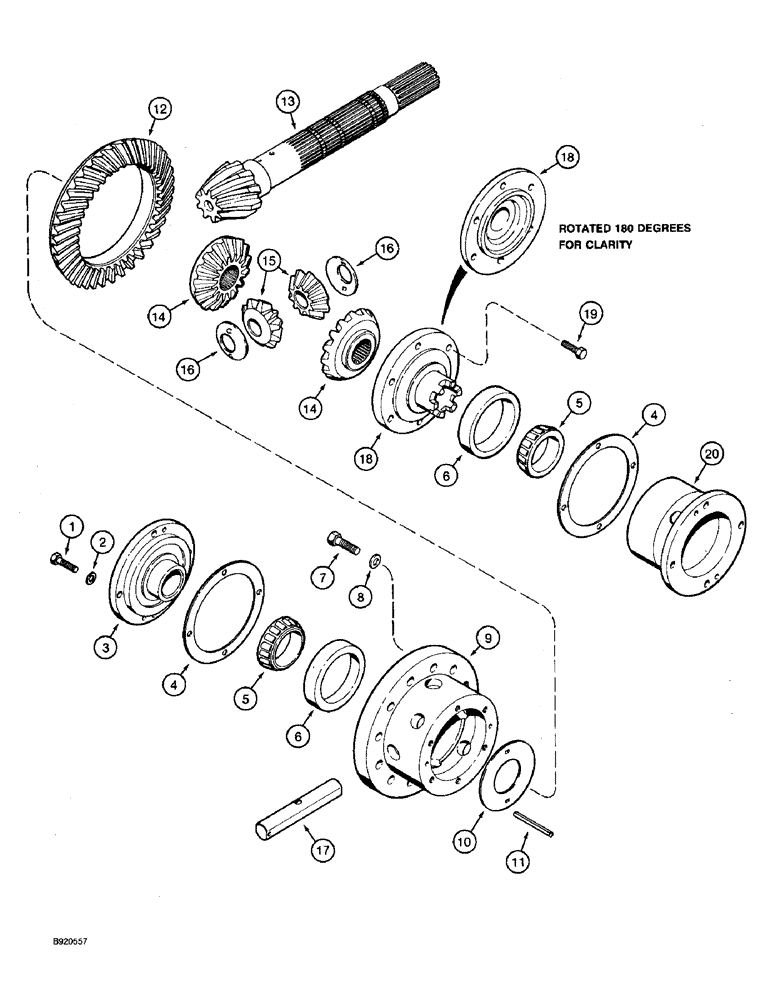

Запчасти Case 590 (6-60) - TRANSAXLE ASSY., TRANSAXLE DIFFERENTIAL, TRANSAXLE SN JKA0202074 AND AFTER (06) - POWER TRAIN

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

2

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened

8шт.

3

1345865C1

DIFF CARRIER & GEARS

CARRIER - bearing, differential, left-hand

1шт.

4

A175236

SHIM,0.08mm Thk

Bearing carrier (0.003") 0.08mm Thk

1шт.

4

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

Bearing carrier (0.007") 0.18mm Thk

1шт.

4

A175238

SHIM,0.25mm Thk

Bearing carrier (0.010") 0.25mm Thk

1шт.

4

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

Bearing carrier (0.025") 0.63mm Thk

1шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

BEARING - tapered roller, replaces ST2007A

2шт.

6

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - tapered roller bearing, replaces 13363D

2шт.

7

826-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

- hex, 12 - 1.75 x 45 mm, class 10.9

12шт.

8

396-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

9

1345864C1

CASE

CARRIER - differential, flanged half, with internal groove

1шт.

10

A183870

WASHER, THRUST

WASHER - thrust, flat, replaces 1345640C1

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

11

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

PIN, LOCK, (Replaces 138-147 pin) 1/4" x 3 1/4", Slotted

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

A190330

GEAR, BEVEL

GEAR ASSEMBLY - ring and pinion, matched set, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

13

NSS

NOT SOLD SEPARAT

PINION - bevel

1шт.

14

1345894C1

GEAR

- side, 16 teeth

2шт.

Part of differential service kit P/N 1345909C1.

1шт.

15

A188633

GEAR

- pinion, 10 teeth

2шт.

Part of differential service kit P/N 1345909C1.

1шт.

16

1345639C1

THRUST WASHER

WASHER - thrust, spherical

2шт.

Part of differential service kit P/N 1345909C1.

1шт.

17

1345893C1

PIN,28.57mm OD x 171mm L

- differential spider

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

18

129905A1

CASE

CARRIER - bearing, right-hand, (replaces 1345866C1 carrier)

1шт.

Part of differential service kit P/N 1345909C1.

1шт.

19

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

20

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER - differential, right-hand

1шт.

1345909C1

KIT

- differential service, Includes: Ref. 10, 11 and 14 - 18

1шт.
