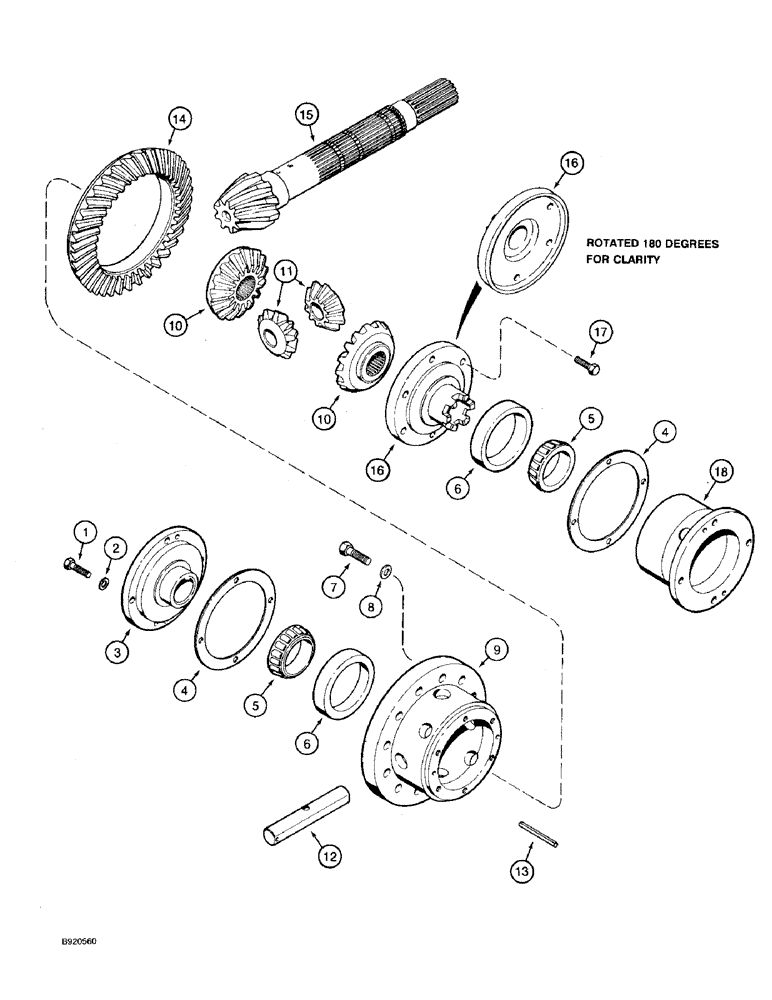

Запчасти Case 590 (6-58) - TRANSAXLE ASSY., TRANSAXLE DIFFERENTIAL, PRIOR TO TRANSAXLE SN JKA0202074 (06) - POWER TRAIN

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

2

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened

8шт.

3

A175200

CARRIER,180 mm ID x 45 mm OD x 53 mm

- bearing, differential, left

1шт.

This part is no longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Refs. 3, 9, 10, 12, 16 and 14-18 on Figure 6-60

1шт.

4

A175236

SHIM,0.08mm Thk

Bearing carrier (0.003") 0.08mm Thk

1шт.

4

A175237

SHIM,138mm ID x 180mm OD x 0.2mm Thk

Bearing carrier (0.007") 0.18mm Thk

1шт.

4

A175238

SHIM,0.25mm Thk

Bearing carrier (0.010") 0.25mm Thk

1шт.

4

A175239

SHIM,138mm ID x 180mm OD x 0.69mm Thk

Bearing carrier (0.025") 0.63mm Thk

1шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

CONE - bearing, replaces A37160

2шт.

6

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - bearing, replaces A7890

2шт.

7

826-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

- hex, 12 - 1.75 x 45 mm

12шт.

8

396-21053

WASHER,17/32" x 1 1/16" x .134"

Replaces 26273R1 17/32" x 1 1/16" x .134"

12шт.

9

A178135

CAGE

CARRIER - differential, flanged half

1шт.

This part is no longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Refs. 3, 9, 10, 12, 16 and 14-18 on Figure 6-60

1шт.

10

A186833

GEAR

- side, 16 tooth

2шт.

This part is no longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Refs. 3, 9, 10, 12, 16 and 14-18 on Figure 6-60

1шт.

11

A188633

GEAR

- pinion, 10 tooth

2шт.

12

A178132

PIN

- differential spider

1шт.

This part is no longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Refs. 3, 9, 10, 12, 16 and 14-18 on Figure 6-60

1шт.

13

38-11652

LOCK PIN,6.35mm OD x 82.55mm L, Slotted

PIN, LOCK, 1/4" x 3 1/4", Slotted

1шт.

A190010

GEAR, BEVEL

PINION AND RING GEAR - matched set, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

15

NSS

NOT SOLD SEPARAT

PINION - bevel

1шт.

16

A186835

CAGE

CARRIER - differential half

1шт.

This part is no longer available, for service order 1345865C1 bearing carrier, 1345864C1 differential carrier, and 1345909C1 kit, Refs. 3, 9, 10, 12, 16 and 14-18 on Figure 6-60

1шт.

17

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

18

A175242

BEARING CARRIER,98 mm ID x 180 mm OD x 109.75 mm

CARRIER - bearing, differential, right

1шт.
