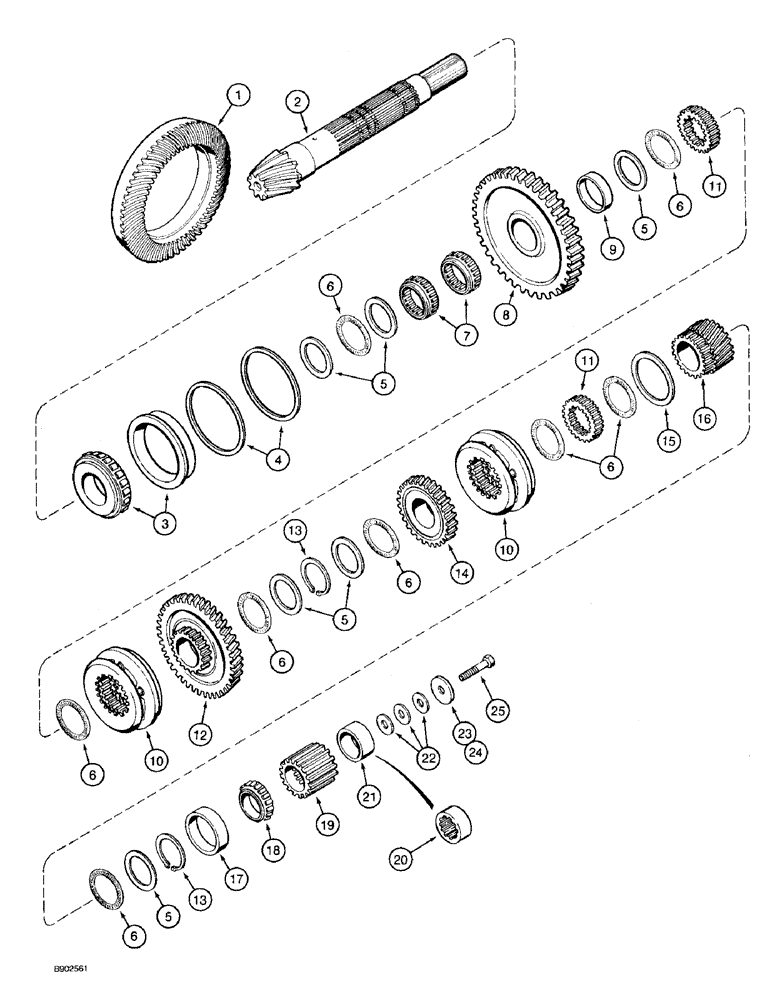

Запчасти Case 590 (6-56) - TRANSAXLE ASSEMBLY, TRANSAXLE COUNTERSHAFT (06) - POWER TRAIN

A190330

GEAR, BEVEL

GEAR ASSEMBLY - ring and pinion, matched set, includes bearing assembly, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel

1шт.

3

A190455

BEARING ASSY,63.5mm ID x 138.25mm OD x 36.54mm W

BEARING ASSEMBLY - cup and tapered roller bearing, rear cover

1шт.

4

A188020

SHIM,130.75mm ID x 139mm OD x 0.09mm Thk

Pinion adjusting 0.08mm Thk

1шт.

4

A188021

SHIM,130.75mm ID x 139mm OD x 0.2mm Thk

Pinion adjusting 0.18mm Thk

1шт.

4

A188022

SHIM,130.75mm ID x 139mm OD x 0.28mm Thk

Pinion adjusting 0.25mm Thk

1шт.

4

A188023

SHIM,130.75mm ID x 139mm OD x 0.55mm Thk

Pinion adjusting 0.51mm Thk

1шт.

5

A150067

WASHER, THRUST,57.33mm ID x 75.7mm OD x 3.16mm Thk

WASHER - thrust, needle bearing

6шт.

6

K620185

THRUST BEARING

BEARING - needle, thrust

8шт.

7

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING - needle, radial, replaces A175430

2шт.

8

A190077

PINION

GEAR - driven, first, 64 teeth

1шт.

9

A175708

SPACER

- bearing

1шт.

10

A188592

SYNCHRONIZER

- countershaft

2шт.

11

A188630

HUB

- sliding collar, synchronizer

2шт.

12

A190335

PINION

GEAR - driven, second, 54 teeth

1шт.

13

103-11225

SNAP RING,#225, Ext

Ring, Snap, (Replaces F40807) #225, Ext

2шт.

14

A190338

PINION

GEAR - driven, third, 36 teeth

1шт.

15

A183747

WASHER, THRUST,83.05mm ID x 105mm OD x 4.49mm Thk

WASHER - fourth gear

1шт.

16

A190339

PINION

GEAR - driven, fourth, 37 teeth

1шт.

17

181251C1

CUP,84mm OD x 22.2mm Thk

- tapered roller bearing

1шт.

18

181250C91

ROLLER BEARING,50mm ID x 22.2mm Thk

BEARING - tapered roller, front cover

1шт.

19

A186646

GEAR

HUB - parking brake

1шт.

20

1995134C1

SPACER

- pinion shaft, 4 wheel drive only (replaces A175481 spacer)

1шт.

21

1345869C1

SPACER

- pinion shaft, 2 wheel drive only

1шт.

22

A188344

SHIM,17.11mm ID x 41mm OD x 0.05mm Thk

Pinion shaft spacer 0.051mm Thk

1шт.

22

A188345

SHIM,17.11mm ID x 41mm OD x 0.13mm Thk

Pinion shaft spacer 0.127mm Thk

1шт.

22

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

Pinion shaft spacer 0.305mm Thk

1шт.

22

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

Pinion shaft spacer 1.016mm Thk

1шт.

23

A186924

WASHER, THRUST

WASHER - pinion shaft, 4 wheel drive only

1шт.

24

A188584

WASHER, THRUST

WASHER - pinion shaft, 2 wheel drive only

1шт.

25

828-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16 - 2.0 x 110 mm, class 10.9, 2 wheel drive only

1шт.

25

1345879C1

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9, Drilled

BOLT - hex, 16 - 2 x 110 mm, class 10.9, 4 wheel drive only, (replaces 826-16110 bolt on 4 wheel drive models)

1шт.
