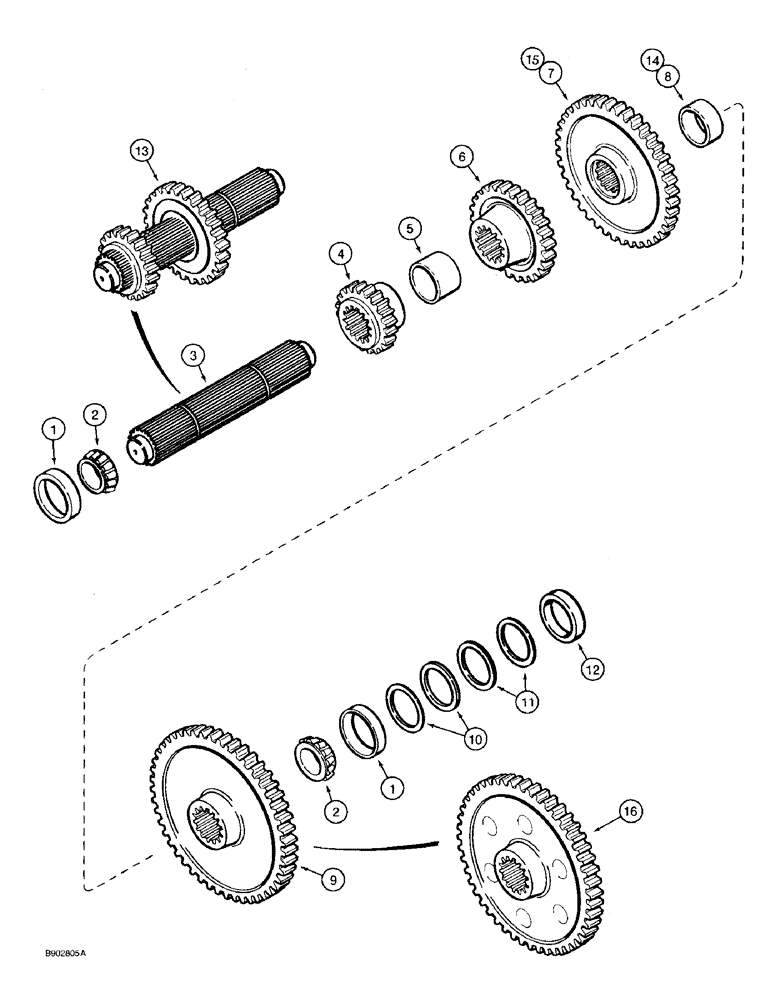

Запчасти Case 590 (6-54) - TRANSAXLE ASSEMBLY, TRANSAXLE INTERMEDIATE SHAFT (06) - POWER TRAIN

1

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

- Tapered roller (Replaces G57451 cup)

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, (replaces G57452 bearing)

2шт.

3

A183911

SHAFT

- intermediate, transaxle, if used

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

4

A190078

PINION

GEAR - drive, first, 25 teeth

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

5

A186385

SPACER

- first and second gear

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

6

A190087

GEAR WHEEL

GEAR - drive, second, 35 teeth

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

7

A190086

PINION

GEAR - drive, third, 53 teeth

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

8

A186384

SPACER

- 1-3/4 inch ID, third and fourth gear

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

9

A190085

PINION

GEAR - drive, fourth, 97 teeth, no longer available, order (1) each of Ref. 13, shaft, 14, spacer, 15 and 16, gears

1шт.

Ref. 4 through 9 must be used with Ref. 3, A183911, shaft. Individual parts are not interchangeable with Ref. 13 - 16

1шт.

10

A175453

SHIM,0.178mm Thk

Bearing adjusting 0.178mm Thk

1шт.

10

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

Bearing adjusting 0.508mm Thk

1шт.

11

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

Bearing adjusting 0.076mm Thk

1шт.

11

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

Bearing adjusting 0.127mm Thk

1шт.

12

A175689

SPACER

- intermediate shaft

1шт.

13

A190304

SHAFT

- intermediate, with first and second drive gears, transaxle, if used

1шт.

Ref. 14 - 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9

1шт.

14

A190327

SPACER

- 1-21/32 inch ID, third and fourth gear

1шт.

Ref. 14 - 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9

1шт.

15

A190310

PINION

GEAR - drive, third, 53 teeth

1шт.

Ref. 14 - 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9

1шт.

16

A190312

PINION

GEAR - drive, fourth, 97 teeth

1шт.

Ref. 14 - 16 must be used with Ref. 13, A190304, shaft. Individual parts are not interchangeable with Ref. 3 - 9

1шт.
