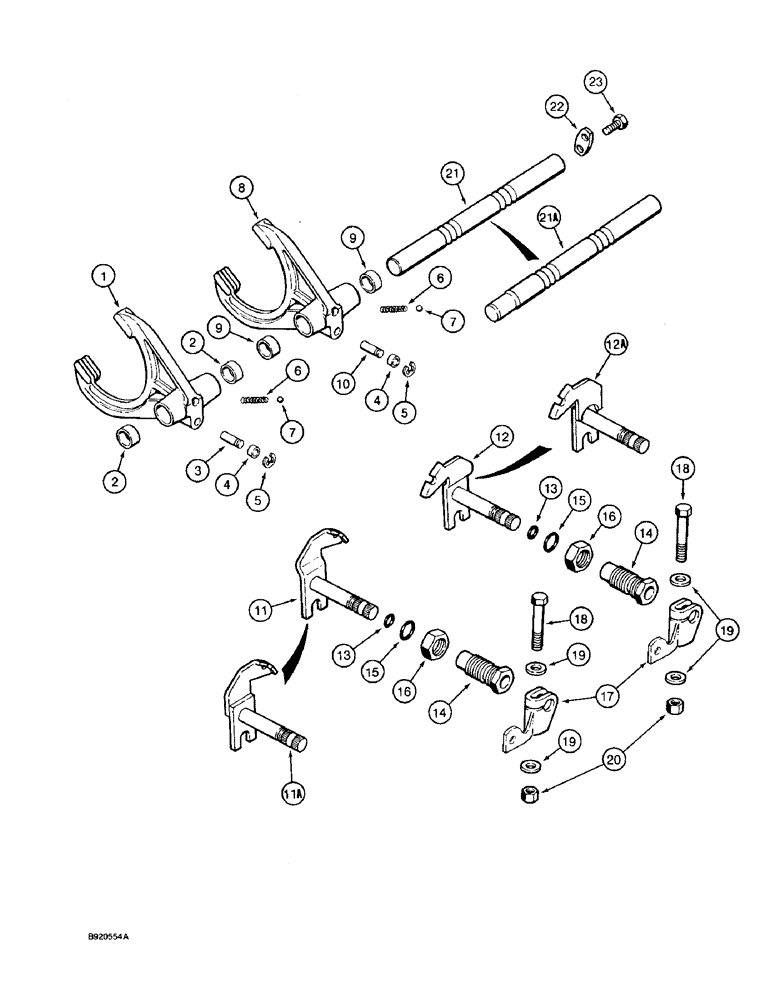

Запчасти Case 590 (6-52) - TRANSAXLE ASSEMBLY, TRANSAXLE SHIFTER MECHANISM (06) - POWER TRAIN

1

A183009

FORK

ASSEMBLY - gear shift, first and second, Includes: Ref. 2 and 3

1шт.

2

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

- shift fork

2шт.

3

A183146

SPLIT PIN/SAFETY PIN

PIN - shift fork

1шт.

4

A178954

SLEEVE

- shift fork pin

2шт.

5

381478R1

SNAP RING,#X43, .375" Dia, E-Type

Ring, Retaining, , shift fork pin, replaces A183147 #X43, .375" Dia, E-Type

2шт.

6

A175971

SPRING

- detent

2шт.

7

211-212

BALL

- 7/16 inch, grade 50, chrome alloy steel

2шт.

8

A183009

FORK

ASSEMBLY - gear shift, third and fourth, Includes: Ref. 9 and 10

1шт.

9

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

- shift fork

2шт.

10

A183146

SPLIT PIN/SAFETY PIN

PIN - shift fork

1шт.

11

A190285

LEVER

ARM - gear shift, first and second, no longer available, order (1) Ref. 11A, 1964326C1 and (1) Ref. 12A, 1964325C1 arms

1шт.

11a

1964326C1

LEVER ASSY.

ARM - gear shift, first and second

1шт.

12

A190286

LEVER

ARM - gear shift, third and fourth, no longer available, order (1) Ref. 11A, 1964326C1 and (1) Ref. 12A, 1964325C1 arms

1шт.

12a

1964325C1

LEVER ASSY.

ARM - gear shift, third and fourth

1шт.

13

A178252

O-RING,1.8mm Thk x 15mm ID, Cl 5, 75 Duro

- acuator shaft

2шт.

14

A188301

BUSHING,18.05mm ID x 27.1mm OD x 77.1mm L

- shift mechanism

2шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

16

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, self-locking, 1-1/16 inch NF

2шт.

17

1995109C1

LEVER

- shaft actuating

2шт.

18

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex head, 12 - 1.75 x 70 mm

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

21

A188348

RAIL

- shifter fork, used with A183561 housing, Ref. 1 on figure 6-48, prior to transaxle SN 202016, if used

1шт.

21a

1995142C1

SLIPPER

RAIL - shifter fork, used with 1995141C1 housing, Ref. 1A on figure 6-48, transaxle SN 202016 and after, if used

1шт.

22

A178279

SEALING STRIP

PLATE - shift rail lock

1шт.

23

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

2шт.
