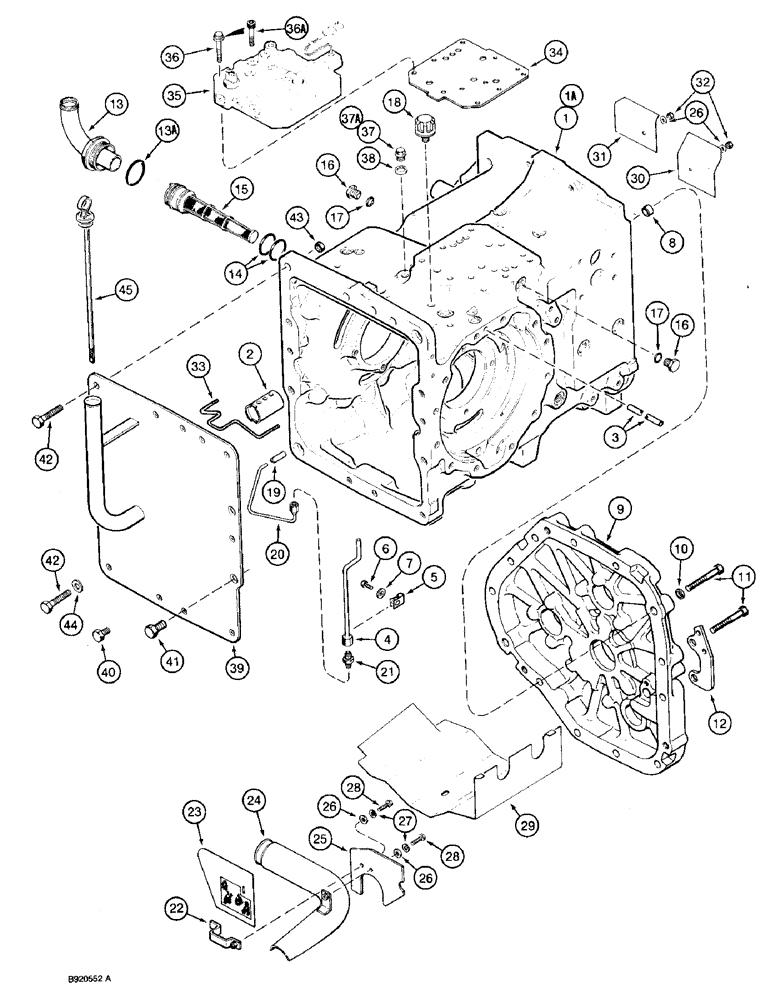

Запчасти Case 590 (6-48) - TRANSAXLE ASSEMBLY, TRANSAXLE TRANSMISSION HOUSING, TWO AND FOUR WHEEL DRIVE (06) - POWER TRAIN

1

A183561

HOUSING

ASSEMBLY - transaxle, prior to transaxle SN 202016, no longer available, order 1995141C1 housing, Ref. 1A and 1995142C1 shift rail, Ref. 21A on figure 6-521995142C1 shift rail, Ref. 21A on figure 6-52, Includes: Ref. 2 - 7

1шт.

1a

1995141C1

HOUSING ASSY.

HOUSING ASSEMBLY - transaxle, SN 202016 and after, used with 1995142C1 shift rail, Ref. 21A on figure 6-52, Includes: Ref. 2 - 7

1шт.

2

A183013

BUSHING

SLEEVE - wear, shuttle clutch shaft

1шт.

3

A188564

TUBE

- cooling, brake

1шт.

4

A188001

TUBE

- pinion lubrication

1шт.

5

A183210

CLAMP

- tube

1шт.

6

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

8

A175944

DOWEL,22.1mm OD x 13.5mm L

SLEEVE - dowel, front housing

2шт.

9

A188903

COVER

- housing, front

1шт.

10

96-31066

WASHER,0.66" ID x 1.31" OD x 0.19" Thk

11шт.

11

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

13шт.

12

A186976

BRACKET

- parking brake cable

1шт.

13

A188031

ELBOW

- hose fitting, Includes: Ref. 13A

1шт.

13a

218-5013

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

- elbow

1шт.

14

238-6135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 6, 90 Duro

2шт.

15

A188034

SCREEN

FILTER - oil suction inlet

1шт.

16

214389

PLUG,3/4" - 16 ORB

Drain, Includes Ref. 17 Hex Hd, 3/4"-16 ORB

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

1971726C1

BREATHER,1/4" - 18

- housing

1шт.

19

A190247

HALF-BUSHING

BUSHING - pinion lubrication tube

1шт.

20

A186996

TUBE ASSY.

TUBE - pinion lubrication

1шт.

21

A188454

ADAPTER

- lube tube

1шт.

22

A186733

SUPPORT

BRACKET - lower baffle

1шт.

23

A186606

FILTER SCREEN

BAFFLE - with screen

1шт.

24

A188032

TUBE

- suction, oil pick-up

1шт.

25

A186993

BAFFLE

- lower right

1шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

28

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

29

A186612

BAFFLE

- main

1шт.

30

A186602

BRACKET

BAFFLE - upper right

1шт.

31

A186603

PLATE

BAFFLE - upper left

1шт.

32

832-41306

NUT,M6 x 1, Cl 10

NUT - hex, self-locking, 6 mm - 1, class 10, prevailing torque

2шт.

33

A186601

BRACKET

RETAINER - threaded, upper baffle

1шт.

34

1341102C1

GASKET,0.81mm Thk

-, Serial Range: valve-housing

1шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - power shuttle, for correct assembly and components, see figures 6-16 and 6-18

1шт.

36

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

- hex, 10 - 1.5 x 60 mm, class 10.9

7-8шт.

36a

861-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 60 mm, class 10.9, if used

1шт.

37

J924147

PLUG,M18 x 1.5

- magnetic, oil drain, if used, replaces J911638

1шт.

37a

934164R1

PLUG,Hex Soc, M18 x 1.5

- 18 mm, non-magnetic, oil drain, if used

1шт.

38

J920773

SEALING WASHER

WASHER - sealing (replaces J900216 washer)

1шт.

39

A190137

COVER ASSY

COVER - housing, rear

1шт.

40

806-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9

- hex, 16 - 2 x 25 mm, class 10.9

5шт.

41

628-20030

SCREW,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

BOLT - hex, 20 - 2.5 x 30 mm, class 10.9

4шт.

42

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

43

829-1316

NUT,M16, Cl 10

- hex, 16 mm

5шт.

44

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

lower LH and upper RH corner of rear housing cover 11/16" x 1 1/2" x .134", HDN

2шт.

45

A183331

DIPSTICK

- oil level

1шт.
