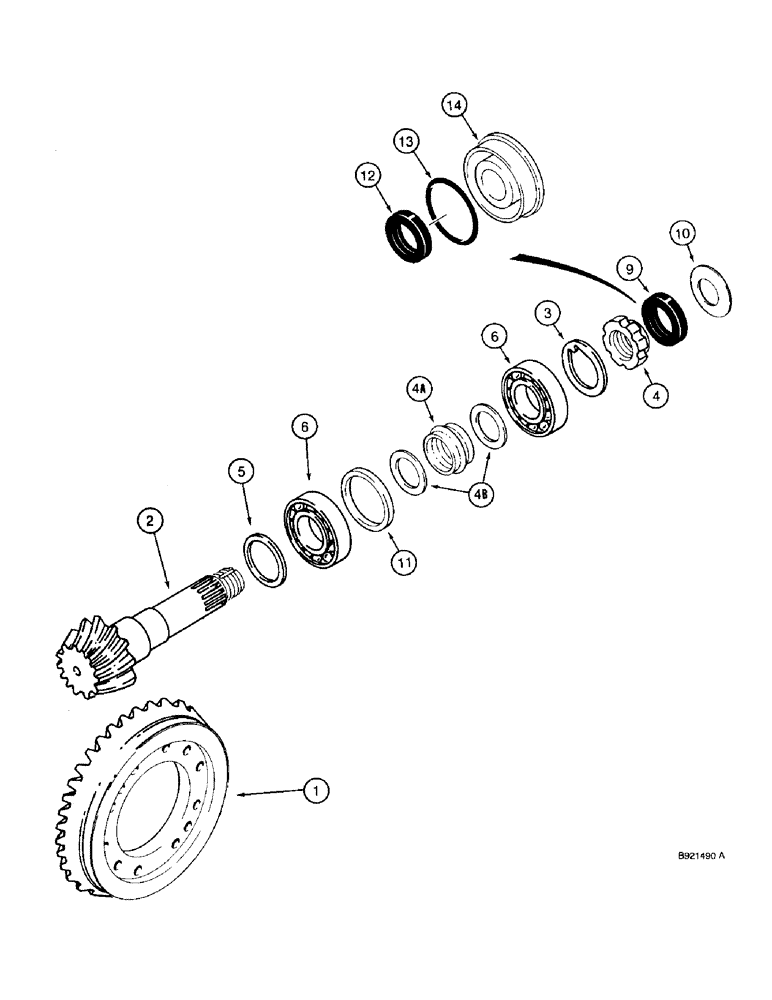

Запчасти Case 590 (6-46) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY - front drive, Carraro No. 127085, parts list figures 6-34 - 6-46, does not includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, purchase separately, if used, Includes: Ref. 1 - 14

1шт.

127767A1

AXLE

ASSEMBLY - front drive, Carraro No. CAV91-767, parts list figuress 6-34 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, (replaces 109937A1 axle), if used, Includes: Ref. 1 - 14

1шт.

CASD150216

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - front dive axle, also includes Ref. 7-8 on figure 6-34 and Ref. 1-15 on figure 6-44, Includes: Ref.1 - 14

1шт.

D149266

GEAR, BEVEL

GEAR - set, ring and pinion, Includes: Ref.1 - 4B

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

K261065

LOCK WASHER

- special, replaces N7536

1шт.

4

K261014

RING NUT,M40 x 1.5

RING - nut, pinion gear, (replaces K261852 ring)

1шт.

4a

1349058C1

SPACER

- collapsible

1шт.

4b

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

- spacer

2шт.

5

K965280

SHIM,2.50mm Thk

1шт.

5

K965282

SHIM,2.60mm Thk

1шт.

5

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

1шт.

5

K965286

SHIM,2.85mm Thk

1шт.

5

K965288

SHIM,2.90mm Thk

1шт.

5

K965290

SPACER

SHIM - 3.00 mm thick

1шт.

5

K965292

SHIM,3.10mm Thk

1шт.

5

K965294

SHIM,3.20mm Thk

1шт.

5

K965296

SHIM,3.30mm Thk

1шт.

5

K965298

SHIM,3.40mm Thk

1шт.

6

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

9

D149731

OIL SEAL,16mm W, 35mm ID x 52mm OD

SEAL - oil, used with Ref. 10, D149732 cover, no longer available, order Ref. 12, K262143 seal, 13, 238-5152 O-ring and 14, 128570A1 cover

1шт.

10

D149732

SHROUD

COVER - differential, does not require an O-ring, used with Ref. 9, D149731 seal, if used

1шт.

11

N14405

SPACER

- bearing cup, included with D149266 gear set

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil, used with Ref. 14, 128570A1 cover

1шт.

13

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

used with Ref. 14, 128570A1 cover -152, 70 Duro, 3.237" ID x .103" Thk

1шт.

14

128570A1

FLANGE

COVER - differential, used with Ref. 12, K262143 oil seal and 13, 238-5152 O-ring

1шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, differental cover to differential carrier, not shown (order B17575) (order B17575)

1шт.
