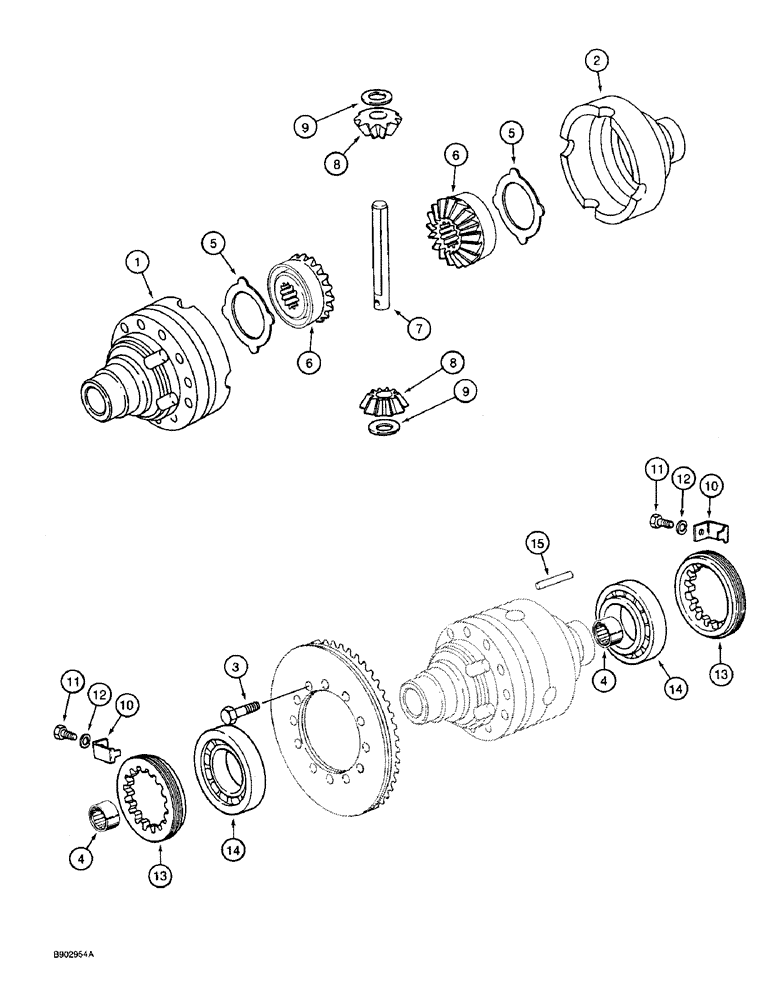

Запчасти Case 590 (6-44) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
D149673
AXLE
ASSEMBLY - front drive, Carraro No. 127085, parts list pages 6-34 - 6-46, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, purchase separately, if used, Includes: Ref. 1 - 15
1шт.
127767A1
AXLE
ASSEMBLY - front drive, Carraro No. CAV91-767, parts list figures 6-34 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, (replaces 109937A1 axle), if used, Includes: Ref. 1 - 15
1шт.
CASD150216
DIFFERENTIAL ASSY
DIFFERENTIAL ASSEMBLY - front drive axle, also includes Ref. 7-8 on figure 6-34 and Ref. 1-11 on figure 6-46, Includes: Ref. 1 - 15
1шт.
D150215
HOUSING ASSY.
HOUSING ASSEMBLY - differential, with bushings, no longer available, order 109686A1 housing, Includes: Ref. 1 - 4
1шт.
109686A1
HOUSING ASSY.
HOUSING ASSEMBLY - differential, without bushings, order Ref. 4 bushing separately, Includes: Ref. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - differential, flange half
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - differential, plain half
1шт.
3
827-10075
BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9
- hex, 10 - 1.5 x 75 mm, class 10.9
12шт.
4
1967625C1
BUSHING
- D150215 housing
2шт.
5
1967003C1
THRUST WASHER
WASHER - thrust, differential housing, (replaces N13618 washer)
2шт.
6
N14407
GEAR
- side, differential
2шт.
7
K395087
SHAFT
- Pinion gear
1шт.
8
N14408
SUN GEAR
GEAR - pinion, differential
2шт.
9
K395075
THRUST WASHER
WASHER, THRUST, Pinion gear
2шт.
10
K261869
LOCK
BRACKET - lock
2шт.
11
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
Replaces K261871 bolt Hex, M6 x 12, 8.8
2шт.
12
892-11006
LOCK WASHER,M6
WASHER, LOCK, , (Replaces K261870 Washer) M6
2шт.
13
1966559C1
NUT
RING, LOCKING (Replaces K261868 ring)
2шт.
15
K395086
PIN
- dowel
1шт.
M20704
ADHESIVE
SEALANT - 3 oz. (89 ml) of sealant in a tube, bolt to differental housing, not shown (order B17575)
1шт.
Выбрано товаров: 21
