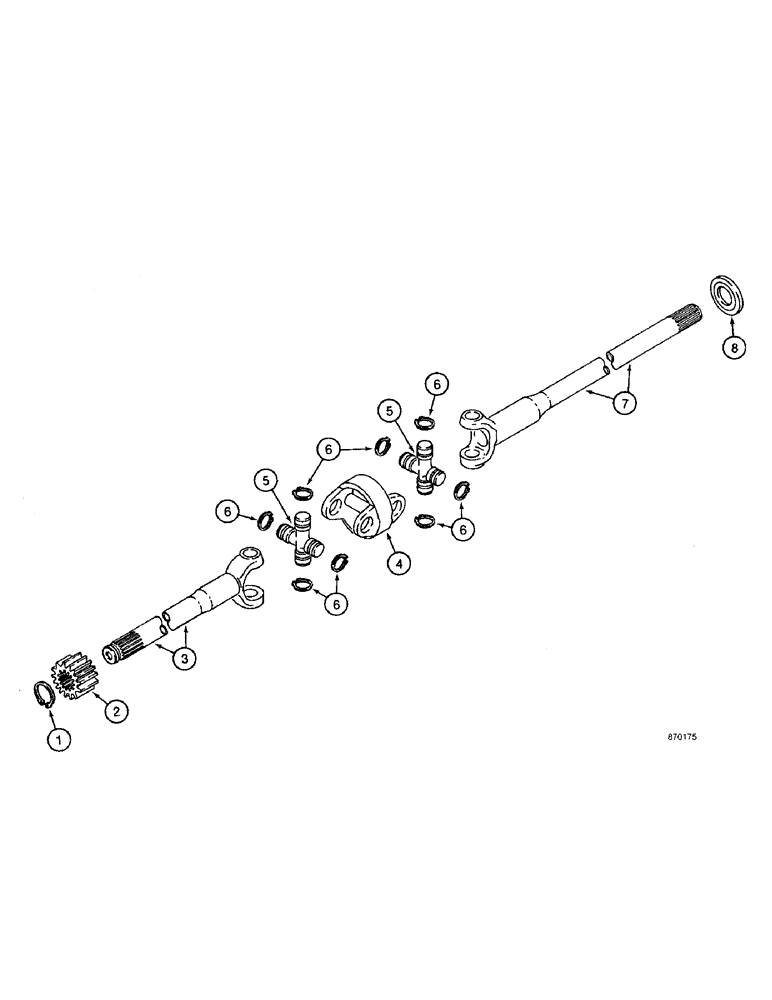

Запчасти Case 590 (6-40) - FRONT DRIVE AXLE, AXLE SHAFTS (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY - front drive, Carraro No. 127085, parts list figures 6-34 - 6-46, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, purchase separately, if used, Includes: Ref. 1 - 8

1шт.

127767A1

AXLE

ASSEMBLY - front drive, Carraro No. CAV91-767, parts list figures 6-34 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, (replaces 109937A1 axle), if used, Includes: Ref.1 - 8

1шт.

1

K261897

RING, SNAP

RING - snap, axle shaft

2шт.

2

K395114

GEAR

- pinion, axle shaft

2шт.

3

N14409

SHAFT

- axle, wheel side, short

2шт.

4

N14412

BODY

- connecting

2шт.

5

N14411

U-JOINT SPIDER

JOINT - universal, axle shaft, cross

4шт.

6

N14410

RING

- snap, universal joint

16шт.

7

D149735

SHAFT

- axle, differential side, long

2шт.

8

1966164C1

OIL SEAL

SEAL - oil, axle shaft, replaces K395103

2шт.
