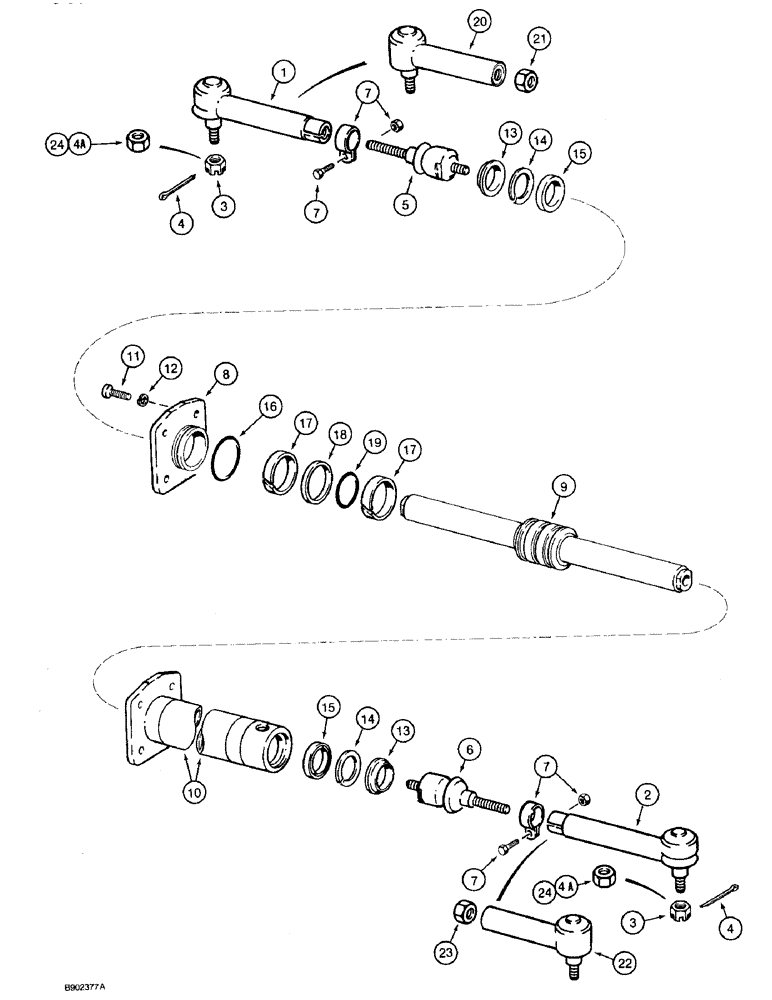

Запчасти Case 590 (6-38) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY - front drive, Carraro No. 127085, parts list figures 6-34 - 6-46, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, purchase separately, if used, Includes: Ref. 1 - 24

1шт.

127767A1

AXLE

ASSEMBLY - front drive, Carraro No. CAV91-767, parts list pages 6-34 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, (replaces 109937A1 axle), if used, Includes: Ref.1 - 24

1шт.

D149730

BALL JOINT

JOINT ASSEMBLY - ball, left-hand, Includes: Ref. 1, 3, and 4, no longer available, order Ref. 20 ball joint, 21 and 24 nuts, Includes: Ref. 1 - 4A

1шт.

D149728

BALL JOINT

JOINT ASSEMBLY - ball, right-hand, Includes: Ref. 2 - 4, no longer available, order Ref. 22 ball joint, 23 and 24 nuts, Includes: Ref.1 - 4A

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT - ball, left-hand, used with Ref. 7, D142924 clamp

1шт.

2

NSS

NOT SOLD SEPARAT

JOINT - ball, right-hand, used with Ref. 7, D142924 clamp

1шт.

3

N14380

JAM NUT

- hex, slotted, 20 x 1.5 mm, ball joint, if used

1шт.

4

733-4036

COTTER PIN,M4 x 36

PIN - cotter, 4 x 36 mm, used with Ref. 3, N14380 nut (replaces 632-656 pin)

1шт.

4a

107070A1

LOCK NUT

NUT - self-locking, 20 x 1.5 mm, ball joint, if used

1шт.

5

N14388

BALL JOINT

ROD - tie, steering, adjuster, left-hand

1шт.

6

N14377

ARTICULATION

ROD - tie, steering, adjuster, right-hand

1шт.

7

D142924

CLAMP

- ball joint to tie rod, includes hardware

2шт.

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

CYLINDER - steering, order D149739 kit to service seals, see below, Includes: Ref. 8 - 10

1шт.

8

D149737

GLAND

- cylinder

1шт.

9

D149736

ROD

- piston

1шт.

10

D149738

STEERING CYLINDER

TUBE - cylinder

1шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

(Replaces D142929 bolt) Hex, M12 x 50, 8.8

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Steering Cylinder, Replaces K965425 washer M12

4шт.

13

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

17

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - expander

1шт.

Part of steering cylinder seal kit P/N D149739.

1шт.

20

126144A1

BALL JOINT

JOINT - ball, left-hand, used with Ref. 21, 126141A1 nut

1шт.

21

126141A1

NUT

NUT - hex, self-locking, used with Ref. 20, 126144A1 ball joint

1шт.

22

126145A1

BALL JOINT

JOINT - ball, right-hand, used with Ref. 23, 126143A1 nut

1шт.

22

126145A1GV

TIE-ROD

JOINT - ball, right-hand, used with Ref. 23, 126143A1 nut

1шт.

23

126143A1

NUT

NUT - hex, self-locking, used with Ref. 22, 126145A1 ball joint

1шт.

24

107070A1

LOCK NUT

NUT - self-locking, 20 x 1.5 mm, ball joint

2шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, cylinder flange to cylinder, not shown (order B17575)

1шт.

D149739

SEAL PACKAGE

KIT - seal, steering cylinder, for rod, gland, and piston, Includes: Ref. 13 - 19

1шт.
