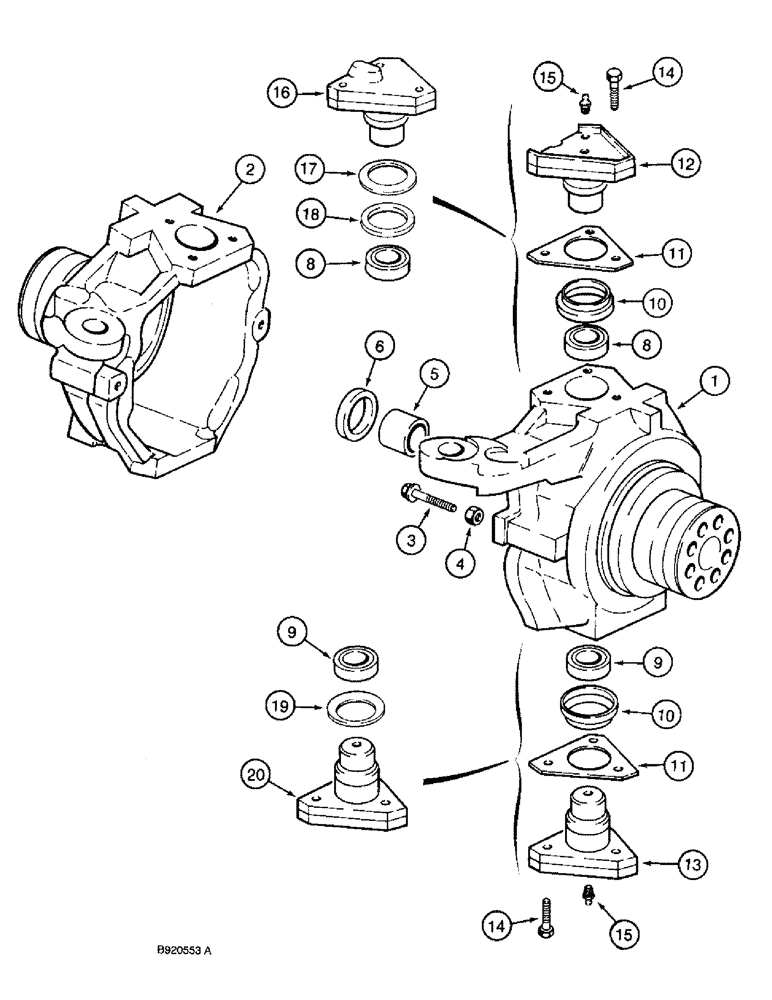

Запчасти Case 590 (6-36) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY - front drive, Carraro No. 127085, parts list figures 6-34 - 6-46, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, purchase separately, if used, Includes: Ref.1 - 20

1шт.

127767A1

AXLE

ASSEMBLY - front drive, Carraro No. CAV91-767, parts list figures 6-36 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, (replaces 109937A1 axle), if used, Includes: Ref.1 - 20

1шт.

1

D150204

HOUSING

- swivel, right-hand

1шт.

2

D150203

HOUSING

- swivel, left-hand

1шт.

3

F3333050

SCREW

BOLT - 14 mm, steering stop, special, replaces D142907

4шт.

4

K395148

NUT

- hex, 14 mm, special, (replaces D142908 nut)

4шт.

5

1967535C1

BUSHING

- swivel housing, (replaces K395033 bushing)

2шт.

6

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil, swivel housing

2шт.

8

N14372

BUSHING

BEARING - swivel cap, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

9

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - swivel cap, lower, two-piece bearing

2шт.

10

K395039

SEAL

- bearing

4шт.

Used on axles prior to Carraro S/N CAR/4253

1шт.

11

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel cap 0.10mm Thk

1шт.

Used on axles prior to Carraro S/N CAR/4253

1шт.

11

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel cap 0.19mm Thk

1шт.

Used on axles prior to Carraro S/N CAR/4253

1шт.

11

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel cap 0.35mm Thk

1шт.

Used on axles prior to Carraro S/N CAR/4253

1шт.

12

N14376

PIN

PIN - king, swivel housing cap, upper

2шт.

If swivel housing has a two-piece upper bearing, you must order both N14372 upper bearing and N14376 upper king pin.

1шт.

Used on axles prior to Carraro S/N CAR/4253

1шт.

13

N13504

PIVOT

PIN - king, swivel housing cap, lower

2шт.

Used on axles prior to Carraro S/N CAR/4253

1шт.

14

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - hex head, 14 - 2 x 35 mm, self-locking, special

12шт.

15

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel cap, Replaces K965246 fitting M6 x 1, 16mm lg

4шт.

16

122260A1

PIVOT

PIN - king, swivel housing cap, upper

2шт.

Used on axles Carraro S/N CAR/4253 and after

1шт.

17

122262A1

BELLEVILLE WASHER

- Belleville, upper

2шт.

Used on axles Carraro S/N CAR/4253 and after

1шт.

18

144611A1

SHIM

SPACER - bearing to upper king pin

2шт.

Used on axles Carraro S/N CAR/4253 and after

1шт.

19

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

- Belleville, lower, see

2шт.

Used on axles Carraro S/N CAR/4253 and after

1шт.

20

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

PIN - king, swivel housing cap, lower

2шт.

Used on axles Carraro S/N CAR/4253 and after

1шт.

M20704

ADHESIVE

SEALANT - 3 oz. (89 ml) of sealant in a tube, wear ring to swivel housing, not shown (order B17575)

1шт.
