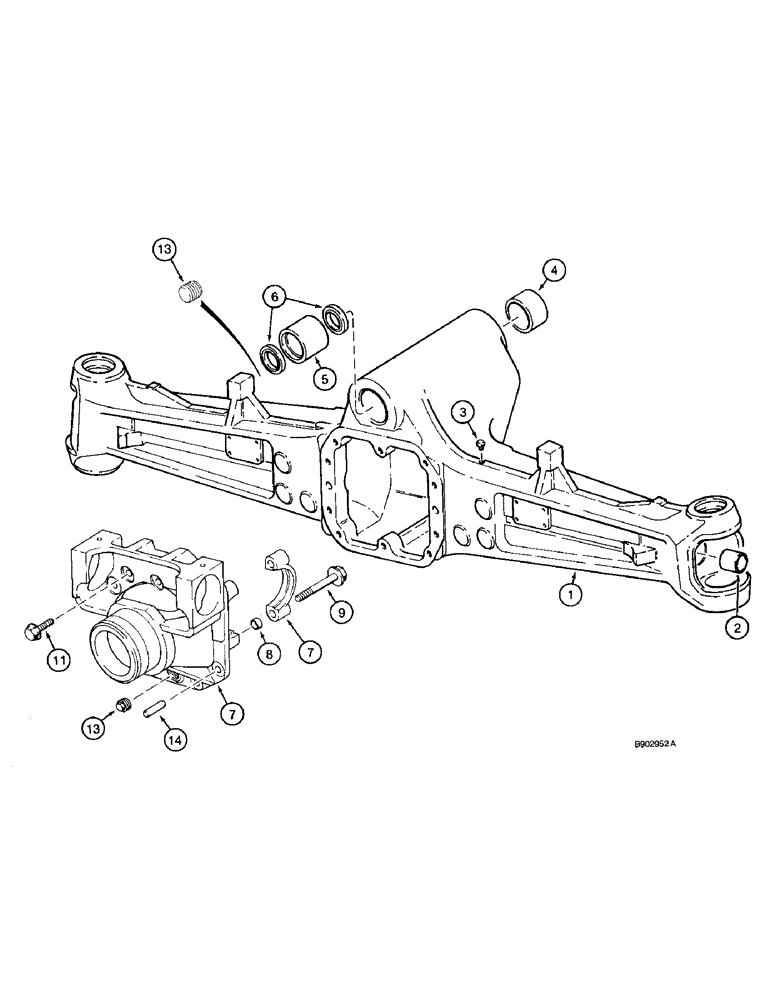

Запчасти Case 590 (6-34) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

D149673

AXLE

ASSEMBLY - front drive, Carraro No. 127085, parts list figures 6-34 - 6-46, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, purchase, Includes: Ref. 1 - 14

1шт.

127767A1

AXLE

ASSEMBLY - front drive, Carraro No. CAV91-767, parts list figures 6-34 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16 on figure 6-30, (replaces 109937A1 axle), if used Includes: Ref. 1 - 14

1шт.

1

D149727

HOUSING

- front axle

1шт.

2

K395019

BUSHING

- housing

2шт.

3

1966149C1

BREATHER

- axle housing, (replaces K965231 breather)

1шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

- front pivot

1шт.

5

D149725

BUSHING,59.75 OD x 54mm L

- rear pivot

1шт.

6

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

- rear bushing

2шт.

D149714

SUPPORT

CARRIER ASSEMBLY - differential, for 3-1/32 inch (77 mm) O.D. steering cylinder, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

8

K965259

RING

BUSHING - centering, carrier

4шт.

9

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Carrier Hex Flg, M14 x 75, 12.9

4шт.

11

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Carrier to housing Hex Flg, M12 x 33, 12.9

10шт.

13

A156873

PLUG, DRAIN,M22 x 1.5

1-2шт.

14

K965252

PIN

- dowel, Serial Range: housing-carrier

2шт.

M20704

ADHESIVE

SEALANT - 3 oz. (89 ml) of sealant in a tube, differential carrier to axle housing, not shown (order B17575)

1шт.
