(6-32) - 1349244C1 DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSAXLE

Запчасти Case 590 (6-32) - 1349244C1 DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSAXLE (06) - POWER TRAIN

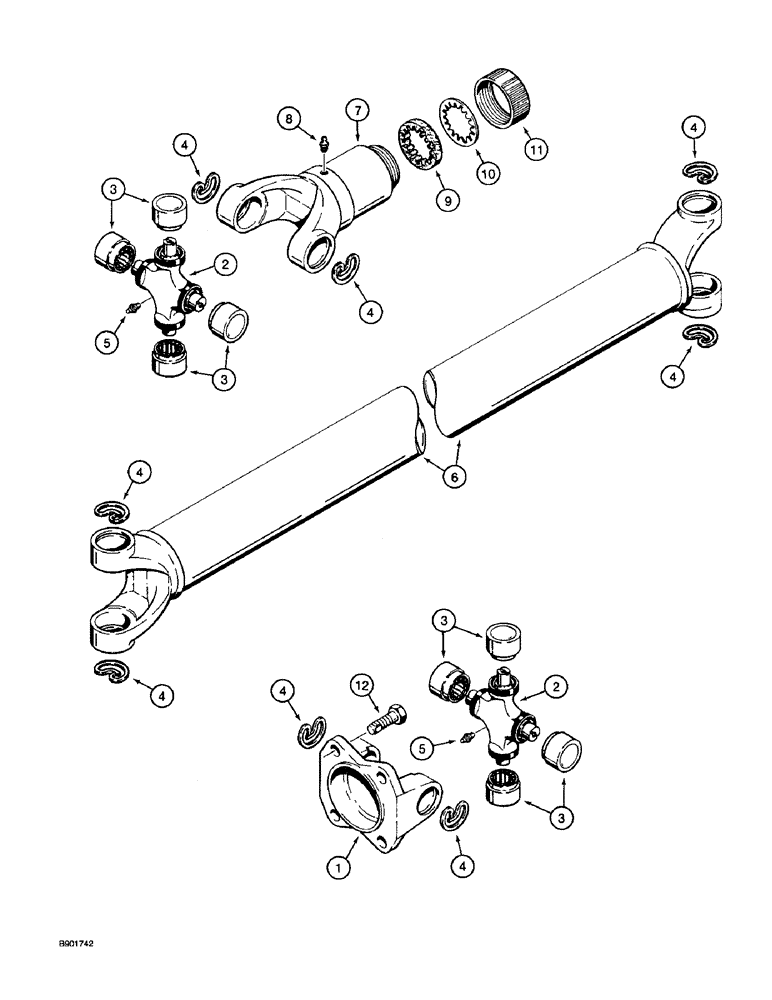

Схема запчастей Case 590 - (6-32) - 1349244C1 DRIVE SHAFT FOR FRONT DRIVE AXLE, FRONT DRIVE AXLE TO TRANSAXLE (06) - POWER TRAIN
4
3
3
12
4
3
5
4
7
5
1
6
4
8
2
10
3
2
4
4
11
9
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1349244C1

SHAFT

ASSEMBLY - drive, Includes: Ref. 1 - 11

1шт.

1

S80726

YOKE

- flange

1шт.

D144306

PACKAGE, REPAIR

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

R13992

RING, SNAP

RING - retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - drive, front drive axle

1шт.

7

D149861

YOKE

- tube, splined, to front drive axle

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

D149860

SERVICE KIT

KIT, SERVICE - Dust cap, Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - dust seal retaining

1шт.

12

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

- hex, 10 mm - 1.5 x 30 mm, special

4шт.
