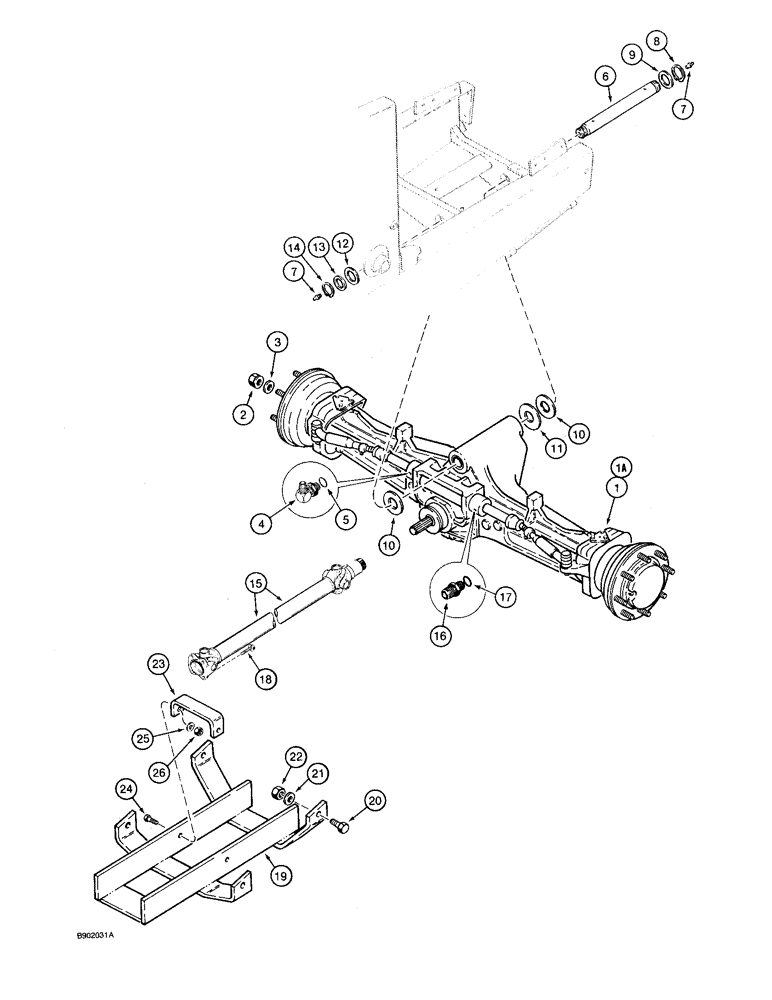

Запчасти Case 590 (6-30) - FRONT DRIVE AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

D149673

AXLE

ASSEMBLY - front drive, Carraro No. 127085, parts list figures 6-34 - 6-46, does not include hydraulic fittings at steering cylinder, Ref. 4 and 16, purchase separately

1шт.

1a

127767A1

AXLE

ASSEMBLY - front drive, Carraro No. CAV91-767, parts list figures 6-35 - 6-46, includes hydraulic fittings at steering cylinder, Ref. 4 and 16, (replaces 109937A1 axle), if used

1шт.

Ref 1A is Carraro #128732

1шт.

2

K395089

WHEEL NUT

- hex

16шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

16шт.

4

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj. O-ring, Includes: Ref. 5

1шт.

6

D127445

PIVOT PIN,50mm OD x 444mm L

SHAFT - axle pivot

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

8

800-44050

SNAP RING,M50, Ext

RING - snap, shaft retaining, front

1шт.

9

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

10

D143408

WASHER,51.56mm ID x 101.6mm OD x 1.98mm Thk

- flat, 2-1/32 ID x 4 O.D. x 1/16 inch thick, special

1шт.

11

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

- thrust, 52 mm x 114 mm x 5 mm

1шт.

12

D143431

WASHER

- special

1шт.

13

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

14

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pivot shaft, rear #175, Ext

1шт.

15

1349244C1

SHAFT

ASSEMBLY - drive, front drive axle, parts list figure 6-32

1шт.

16

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 17

1шт.

18

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

- hex, 10 mm - 1.5 x 30 mm, special, flange mounting

4шт.

19

D149468

GUARD

- drive shaft, 10 mm (3/8 inch) thick, used with Ref. 23, D149465, strap, no longer available, order Ref. 19A, 104658A1

1шт.

19a

104658A1

GUARD

- drive shaft, not shown, is identical to Ref. 19 except there are no holes in side bars

1шт.

20

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

21

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

4шт.

22

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

23

D149465

BAR

STRAP - shaft guard, used with Ref. 19, D149468 guard

1шт.

24

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, If used

2шт.

25

495-11081

WASHER,3/4", SAE

If used 3/4", SAE

2шт.

26

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, if used

2шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
