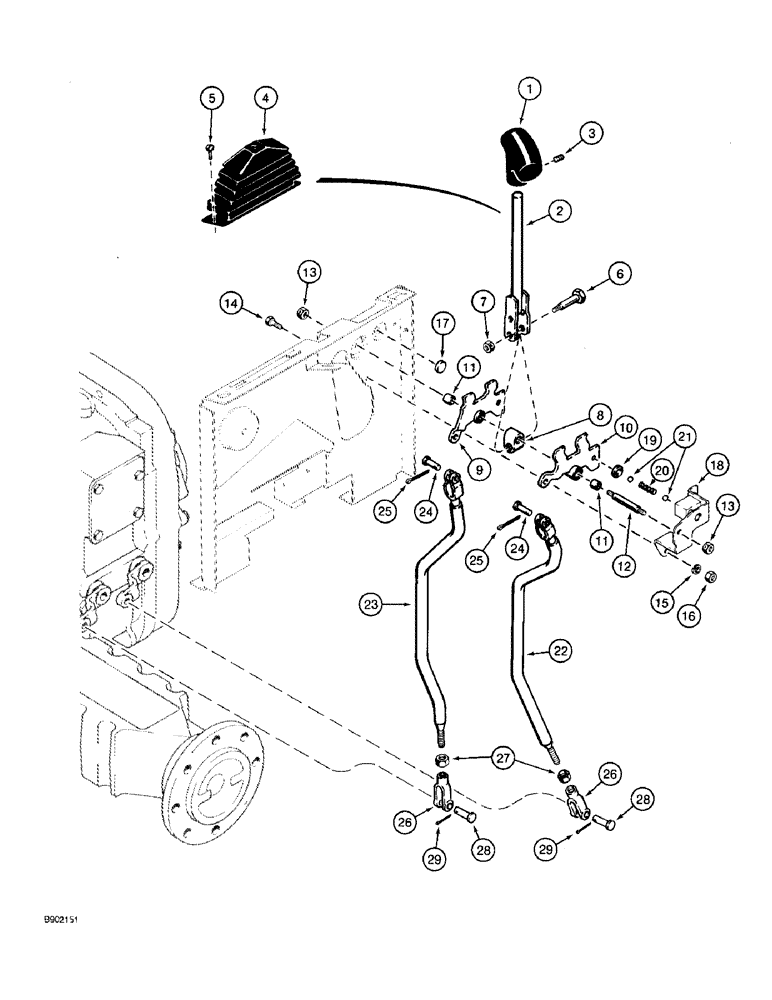

Запчасти Case 590 (6-26) - TRANSAXLE SHIFT LEVER (06) - POWER TRAIN

1

D147596

HANDLE

KNOB - shift lever, T-handle

1шт.

See Figure 4-26 for clutch cutout switch and wire.

1шт.

2

D146337

LEVER

- control, shift, transaxle

1шт.

See Figure 4-26 for clutch cutout switch and wire.

1шт.

3

178-892

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

SCREW - set, hex headless, 5/16 NF x 3/8 inch, half dog point

1шт.

4

D143303

BOOT

- transaxle control lever, mounts to side console

1шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

6

D142167

BOLT,Shoulder, Hex, 3/8" - 16 - 12.70mm Dia x 45.75mm

BOLT - shoulder, special

1шт.

7

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

8

D136635

BLOCK

- shifter pivot, plastic

1шт.

9

D147051

LARGE PLATE

LEVER - shift, Serial Range: first-second

1шт.

10

D147052

LARGE PLATE

LEVER - shift, third to fourth, Includes: Ref. 11

1шт.

11

D147737

BUSHING,12.71mm ID x 15.95mm OD x 18.55mm L

- D147051 or D147052 shift lever

1шт.

12

D142166

STUD

- pivot

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

SHADED PANEL BELOW REF 14 IS D147161. SEE PG 3-6.

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

D142577

STOP

PLUG - retainer, 5 mm thick head

1шт.

18

D146892

SUPPORT

BELLCRANK - shift detent, see figure 3-6, Ref. 11, for throttle control bracket

1шт.

19

D146895

STOP

PLUG - retainer, 9 mm thick head

1шт.

20

D148684

SPRING

- detent

1шт.

21

D146449

BALL

- 1/2 inch, grade 200, carbon steel

2шт.

22

D147060

ROD

- shift, Serial Range: third-fourth

1шт.

23

D147058

ROD

- shift, Serial Range: first-second

1шт.

24

427-6088

CLEVIS PIN,3/8" x 3/4"

PIN - clevis, 3/8 inch, short

2шт.

25

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

26

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

2шт.

27

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

28

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

2шт.

29

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.
