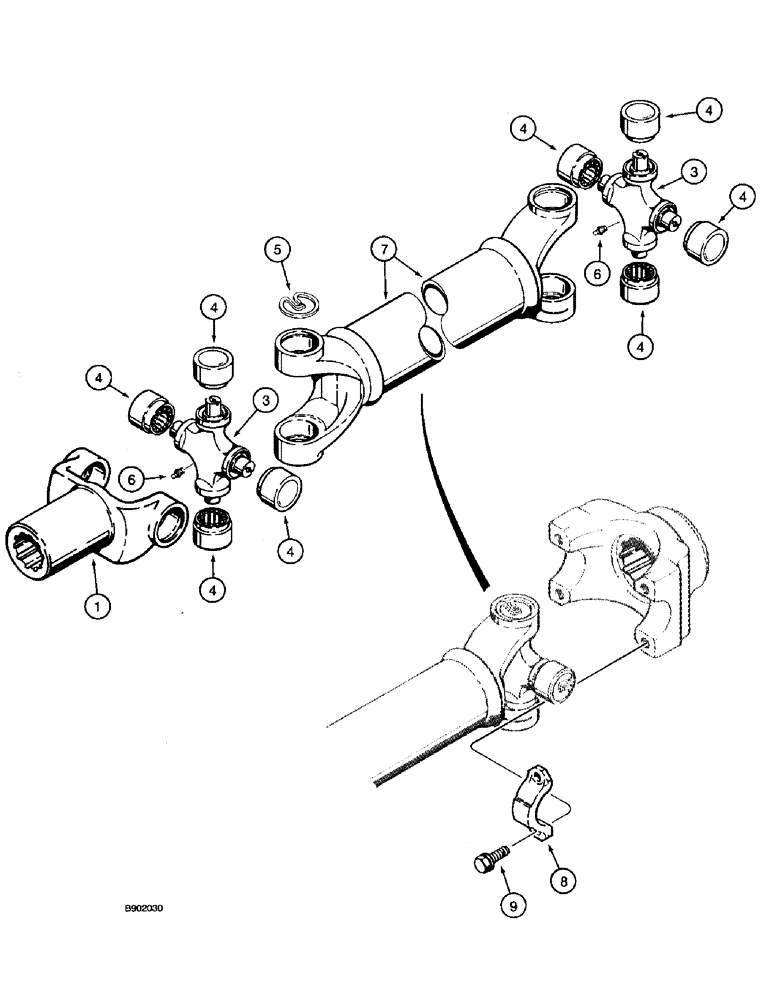

Запчасти Case 590 (6-22) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (06) - POWER TRAIN

D129436

DRIVE SHAFT

SHAFT ASSEMBLY - primary, drive, to transaxle, Includes: Ref. 1 - 7

1шт.

1

N14231

YOKE

- end, to transaxle, Includes: Ref. 2

1шт.

2

N13653

PLUG

- grease, not shown

1шт.

N14230

KIT

- universal joint, Includes: Ref. 3 - 6

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

11256

SNAP RING

- retaining

4шт.

6

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - drive, power shuttle

1шт.

8

D124146

CLAMP

STRAP - bearing

2шт.

9

D124151

BOLT

- special

4шт.
