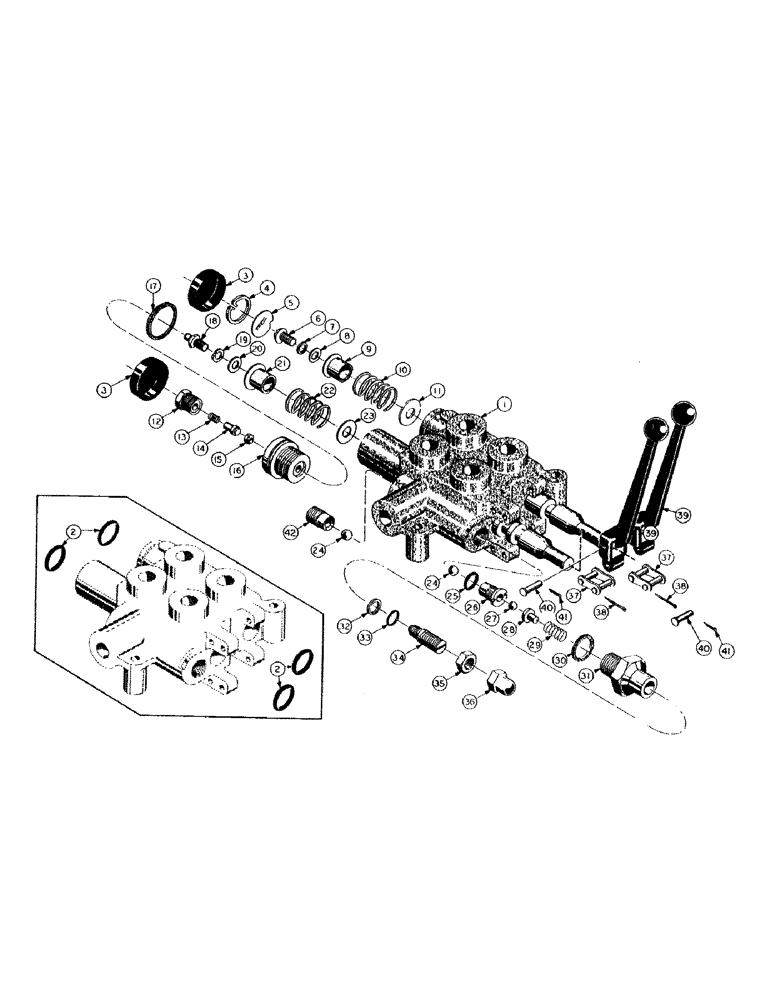

Запчасти Case 420B (16) - 38256 TERRALOADR HYDRAULIC CONTROL VALVE

38256

PIN

VALVE - control, hydraulic

1шт.

1

5465

HOUSING AND SPOOLS

1шт.

2

36642

SEAL

"O" RING - seal

4шт.

3

36645

CAP

- rubber

2шт.

4

36633

LID

- snap

1шт.

5

663023R1

CAP

- stop

1шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - centering spring

1шт.

7

36628

LOCK WASHER

- lock (If used)

1шт.

8

36644

X

WASHER - flat

1шт.

9

CAS36630

COLLAR

- stop

1шт.

10

36632

SPRING

- centering

1шт.

11

36629

WASHER - stop

1шт.

12

36656

CLIP

CAP - float detent spring

1шт.

13

36658

ROD

SPRING - float detent

1шт.

14

NLS

NO LONGER SERVICED

HOLDER - float detent finger

1шт.

15

NLS

NO LONGER SERVICED

- float detent

3шт.

16

NLS

NO LONGER SERVICED

- float detent

1шт.

17

36666

WASHER

- float detent cap

1шт.

18

36651

NUT

ADAPTER - float detent

1шт.

19

36662

GEAR

WASHER - lock

1шт.

20

36661

SHAFT

WASHER - flat

1шт.

21

36652

COLLAR

- float spring

1шт.

22

36657

CLIP

- float centering

1шт.

23

36650

WASHER

- float stop

1шт.

24

04896CS

BALL - check

2шт.

25

34118

X

"O" RING - seal, valve seat

1шт.

26

36635

SHIELD

SEAT - relief valve

1шт.

27

O7210AB

X

BALL - relief valve

1шт.

28

CAS34120

BUSHING

SPACER - ball seat spring

1шт.

29

36659

SPRING

- float relief

1шт.

30

34115

GASKET

- relief valve body

1шт.

31

34113

BODY

- relief valve

1шт.

32

36660

WASHER

- float relief spring

1шт.

33

34112

CLIP

"O" RING - seal, adjusting screw

1шт.

34

34110

ADJUSTMENT SCREW

- adjusting

1шт.

35

34111

X

NUT - jam, adjusting screw

1шт.

36

34109

CAP - acorn

1шт.

37

36640

DRAG LINK

LINK -, Serial Range: handle-valve

2шт.

38

36641

CIRCLIP

PIN - cotter, handle link

2шт.

39

D23722

HANDLE

HANDLE - control

2шт.

40

36627

SEAT

PIN - handle

2шт.

41

36625

X

PIN - cotter, handle

2шт.

42

36634

DISC

PLUG - check ball

1шт.
