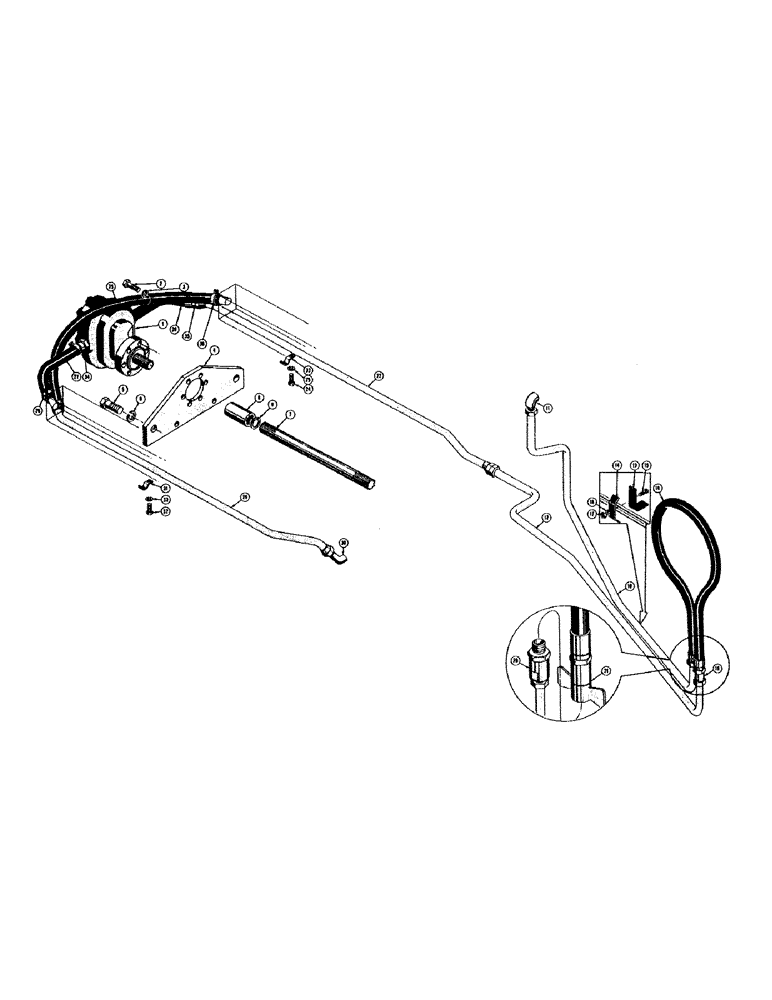

Запчасти Case 420B (14) - TERRALOADR HYDRAULICS WITH BACKHOE

1

39582

PUMP, HYDRAULIC

PUMP - hydraulic, complete (21 G.P.M.) (See Figure 18)

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8 - 16 NC x 1-1/2 (45058)

6шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

4

D20895

BRACKET - pump mounting

1шт.

5

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(45185) Hex, 3/4"-10 x 2", G5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

7

DR10512

X

SHAFT - hydraulic pump drive

1шт.

8

36280

COUPLING

- hydraulic pump to drive shaft

1шт.

9

36281

X

SNAP RING - pump drive shaft coupling

1шт.

10

D20440

TUBE - backhoe to loader valve, rear section

1шт.

11

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4" JIC and 3/4" NPT) (50116)

1шт.

12

D20436

TUBE - pump to backhoe, rear section

1шт.

13

D20438

BRACKET - tube mounting, rear

1шт.

14

D20045

PLATE ASSY.

CLAMP - tube

3шт.

15

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(45634) Hex, 5/16"-24 x 1 3/4", G5

2шт.

16

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

17

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (48101)

2шт.

18

36232

HOSE ASSY.

HOSE - backhoe attaching

1шт.

19

221-330

COUPLING - pipe (3/4" NPT) (Not required with quick disconnects (41599)

1шт.

35146

DISCONNECT - quick (Not used on some models)

2шт.

20

36262

DISCONNECT - quick (Male half)

1шт.

21

36263

DISCONNECT - quick (Female half)

1шт.

22

D21243

TUBE - pump to backhoe, front section

1шт.

23

49789

CLAMP

- tube

3шт.

24

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

(45602) Hex, 1/4"-28 x 1/2", G5, Full Thd

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

3шт.

26

D20994

HOSE - pump outlet

1шт.

27

D20996

HOSE - left hand, Serial Range: reservoir-pump

1шт.

28

49766

AUGER

CLAMP - hose

2шт.

29

D21213

TUBE - front to back of left hand reservoir

1шт.

30

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male (1" JIC and 1" NPT) (50119)

1шт.

31

49782

CLAMP - tube

2шт.

32

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

(45602) Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.

34

18987

TUBE - hydraulic pump, inlet

1шт.

35

D20444

HOSE - connects front of reservoirs

1шт.

36

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.
