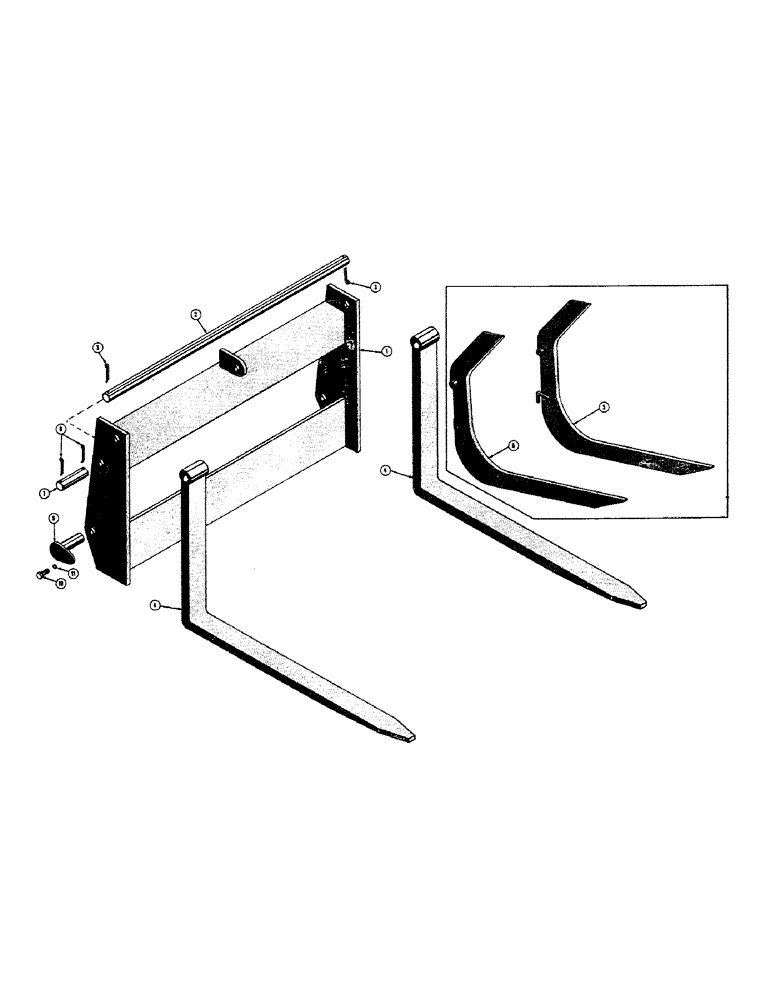

Запчасти Case 420B (09) - LOGGING AND PALLET FORKS

1

D21661

SUPPORT - fork

1шт.

2

D21656

SHAFT

- fork support

1шт.

3

132-152

PIN

- cotter (1/4 x 1-3/4) (48738)

2шт.

4

D21575

FORK TEDDER

FORK - pallet lift

2шт.

5

D21945

FORK - logging, LH

1шт.

6

D21946

FORK - logging, RH

1шт.

7

D21821

PIN - support retaining

2шт.

8

132-152

PIN

- cotter (1/4 x 1-3/4) (48738)

4шт.

9

36117

PIN - lift, Serial Range: arm-blade

2шт.

10

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

11

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.
