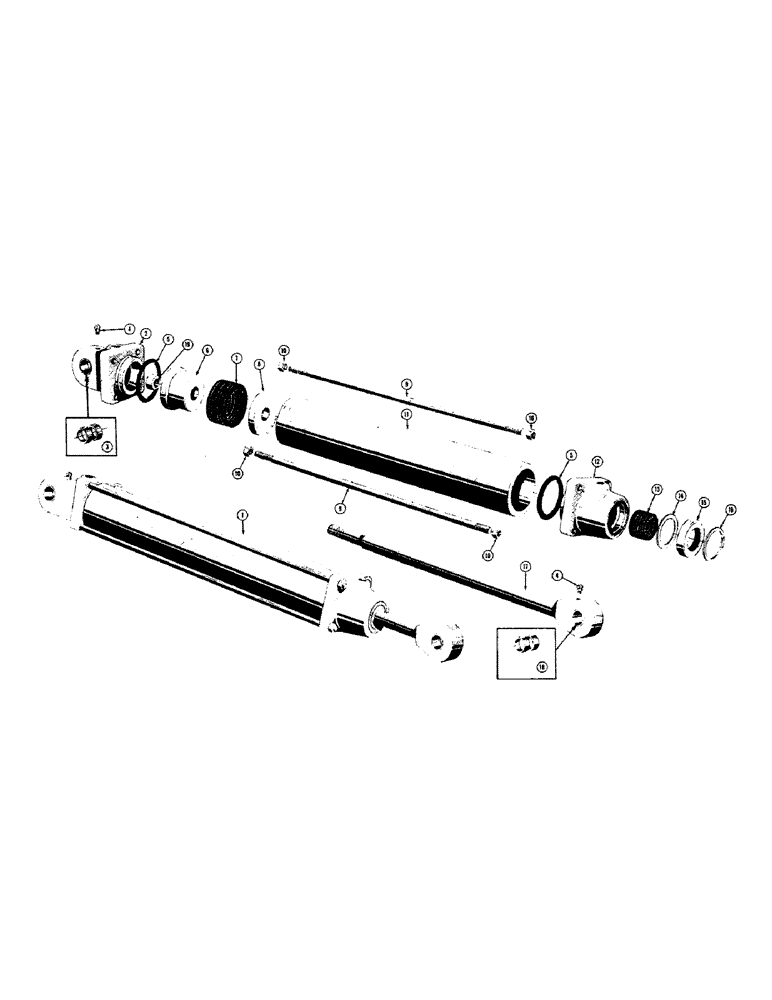

Запчасти Case 420B (52) - 30530 BACKHOE HYDRAULIC DUMP CYLINDER

1

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - dump, hydraulic

1шт.

2

D20054

END - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - straight (Lincoln #5000) (49200)

2шт.

5

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING - seal

2шт.

6

30571

PISTON - cylinder

1шт.

7

17578

PACKING

- piston

1шт.

8

NLS

NO LONGER SERVICED

WASHER - piston packing

1шт.

9

30569

ROD

- tie

4шт.

10

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF) (17586)

8шт.

11

30570

DRAWBAR

TUBE - cylinder

1шт.

12

30567

FLANGE

CAP - end, cylinder

1шт.

13

30568

PACKING

- rod

1шт.

14

70741

X

WASHER - packing, piston rod

1шт.

15

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

16

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

17

D20036

ROD

- piston

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke

2шт.

19

48378

X

NUT - lock (1 - 14 NF)

1шт.
