Запчасти Case 420B (50) - 36770 BACKHOE HYDRAULIC DIPPER ARM CYLINDER

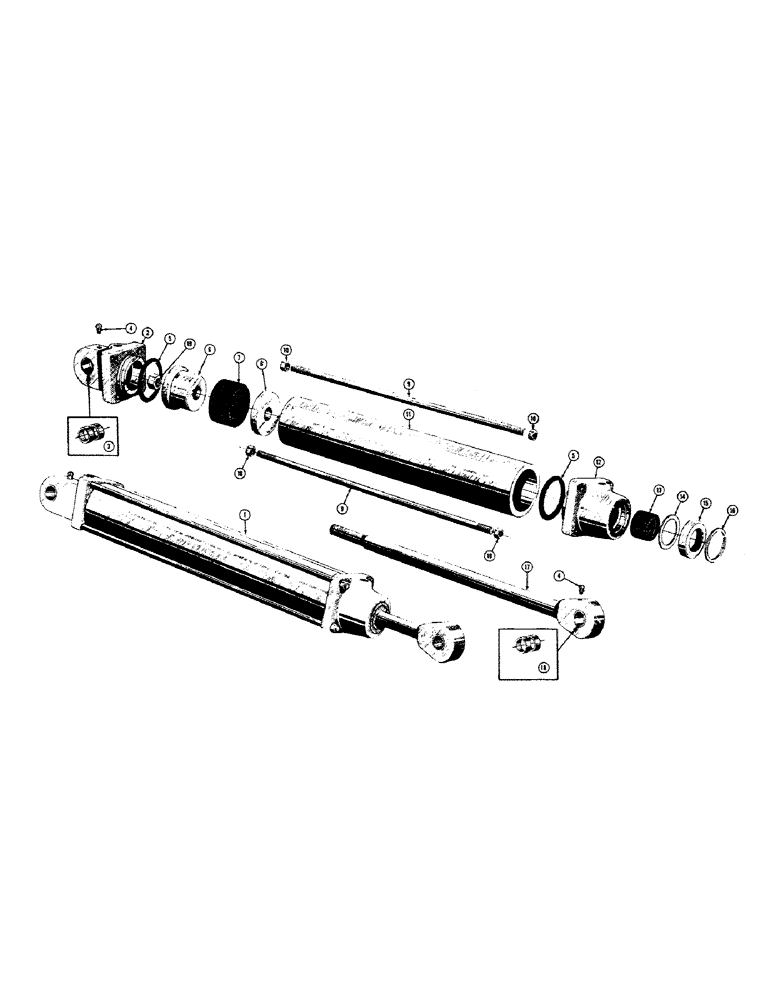

Схема запчастей Case 420B - (50) - 36770 BACKHOE HYDRAULIC DIPPER ARM CYLINDER

Артикул

Название

Примечание

Количество

1

36770

CYLINDER - dipper arm, hydraulic

1шт.

2

D20037

END - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - straight (Lincoln #5000) (49200)

2шт.

5

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - seal

2шт.

6

31520

PISTON - cylinder

1шт.

7

31526

PACKING

- piston

1шт.

8

31519

LOCKING PLATE

WASHER - piston packing

1шт.

9

36678

WASHER

ROD - tie

4шт.

10

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18 NF) (11946)

8шт.

11

36771

TUBE - cylinder

1шт.

12

73348

CAP - end, cylinder

1шт.

13

17598

PACKING

- rod

1шт.

14

31539

WASHER

- packing, piston rod

1шт.

15

31525

WIPER SEAL

- wiper, piston rod

1шт.

16

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

17

D20042

ROD - piston

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston yoke

2шт.

19

48378

X

NUT - lock (1 - 14 NF)

1шт.

Выбрано товаров: 19
