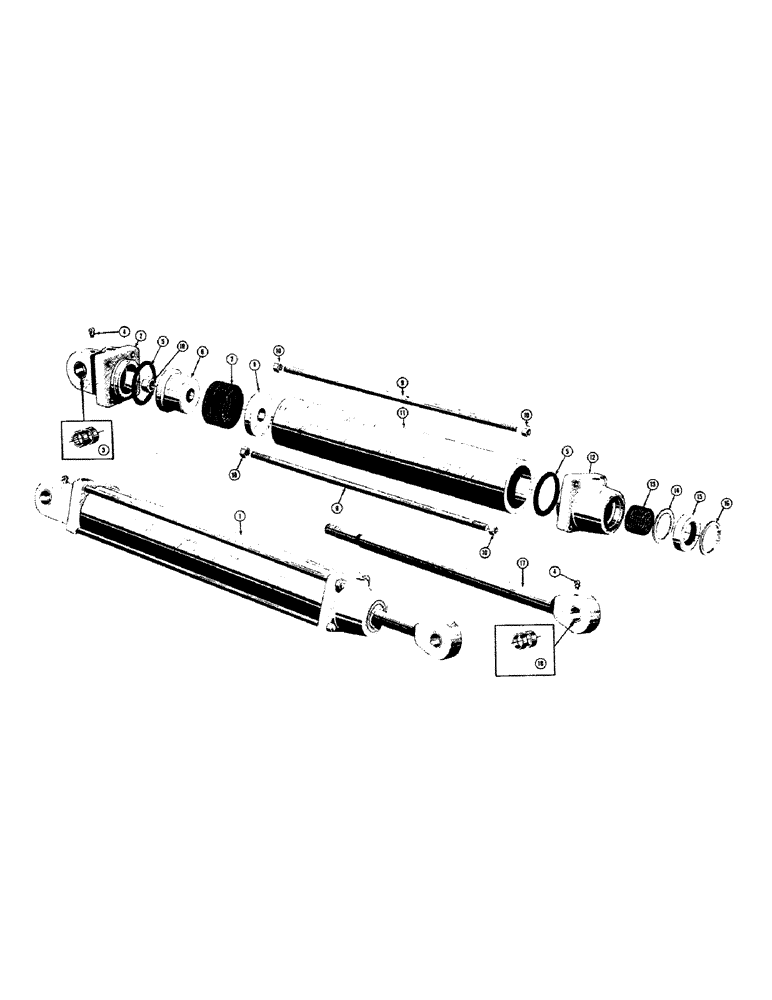

Запчасти Case 420B (49) - 38464 BACKHOE HYDRAULIC STABILIZER CYLINDERS

1

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic

2шт.

2

D20055

END - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

4

(Not used)

1шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

"O" RING - seal

2шт.

6

31663

X

PISTON - cylinder

1шт.

7

31662

PACKING

- piston

1шт.

8

31661

WASHER

- piston packing

1шт.

9

34939

ROD - tie

4шт.

10

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF) (17586)

8шт.

11

31750

TUBE - cylinder

1шт.

12

32486

RATCHET

CAP - end, cylinder

1шт.

13

17577

PACKING

- rod

1шт.

14

70740

WASHER

- packing

1шт.

15

17583

WIPER SEAL

- wiper, piston rod

1шт.

16

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

17

D20028

ROD - piston

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke

2шт.

19

131-152

HARDWARE

NUT - lock (3/4 - 16 NF) (48070)

1шт.
