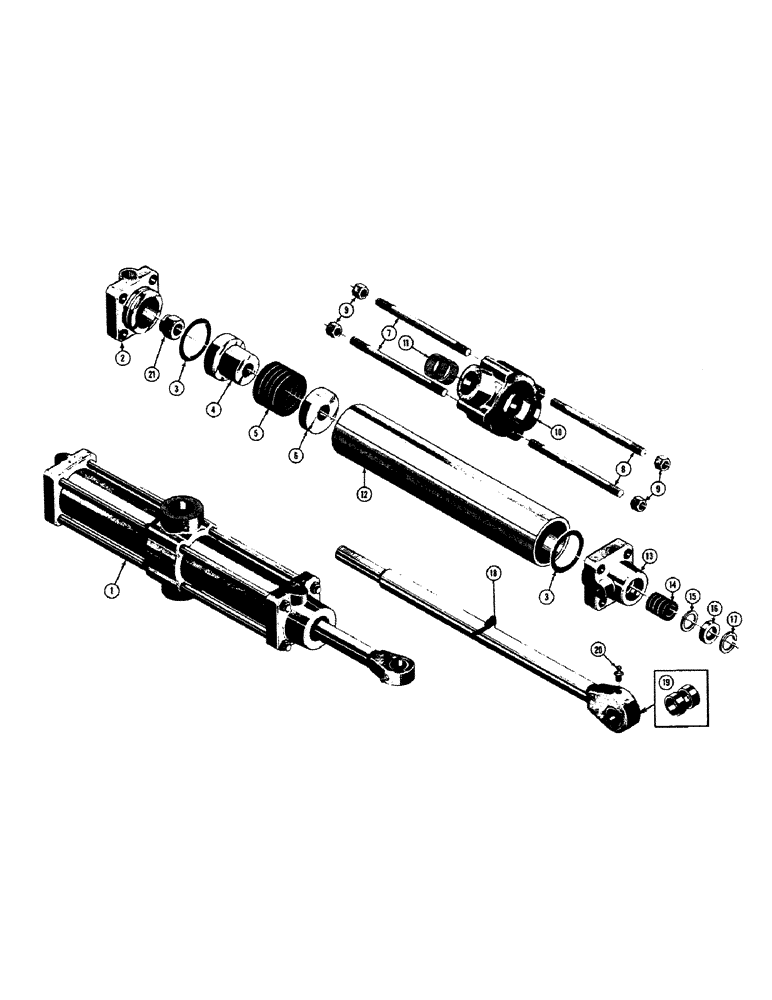

Запчасти Case 420B (48) - 38374 AND 38375 BACKHOE HYDRAULIC SWING CYLINDERS

1

38374

WASHER

CYLINDER - swing, hydraulic (LH)

1шт.

1

38375

CYLINDER - swing, hydraulic (RH)

1шт.

2

34888

END

- cylinder

1шт.

3

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal

2шт.

4

30631

X

PISTON - cylinder

1шт.

5

17598

PACKING

- piston

1шт.

6

30630

CARTRIDGE

WASHER - piston packing

1шт.

7

38370

ROD - tie, long

4шт.

8

38369

ROD - tie, short

4шт.

9

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF) (17606)

8шт.

10

D20528

TRUNNION - cylinder

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

12

38372

TUBE - cylinder

1шт.

13

30628

CAP - end, cylinder

1шт.

14

17597

PACKING

- rod

1шт.

15

36259

WASHER

- packing, piston rod

1шт.

16

17603

WIPER SEAL

- wiper, piston rod

1шт.

17

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

18

D20027

ROD - piston

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - straight (Lincoln #5000) (49200)

1шт.

21

131-152

HARDWARE

NUT - lock (3/4 - 16 NF) (48070)

1шт.
