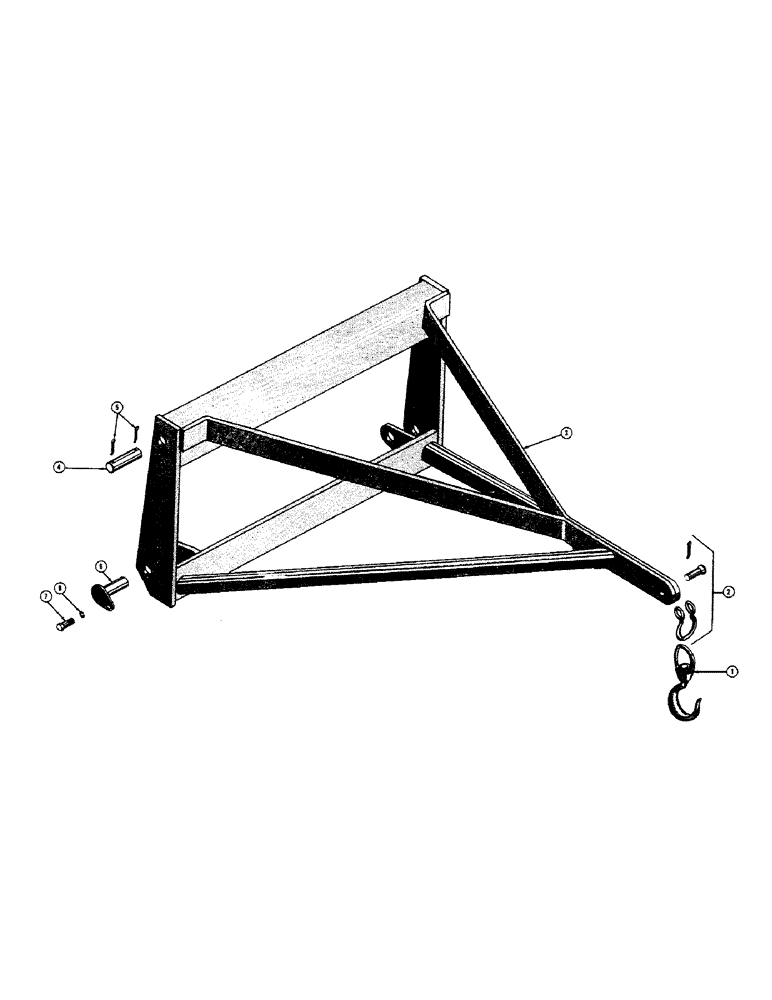

Запчасти Case 420B (08) - CRANE BOOM

1

D21823

HOOK - swivel

1шт.

2

D21824

SHACKLE - swivel hook

1шт.

3

D21744

BOOM - crane

1шт.

4

D21821

PIN - boom retaining

2шт.

5

132-152

PIN

- cotter (1/4 x 1-3/4) (48738)

4шт.

6

36117

PIN - lift, Serial Range: arm-blade

2шт.

7

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

8

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.
