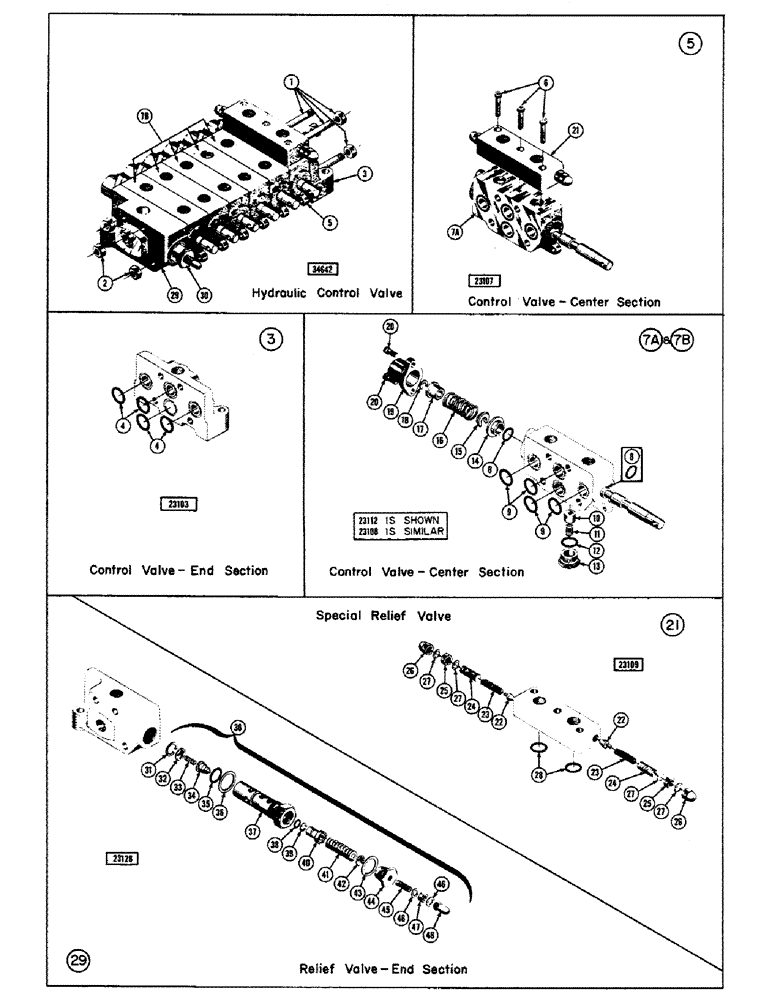

Запчасти Case 420B (46) - 34642 BACKHOE HYDRAULIC CONTROL VALVE

34642

X

VALVE - control, hydraulic

1шт.

1

38578

SOCKET WRENCH

STUD - valve assembly (Includes 1 hex nut)

4шт.

2

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex (1/2 - 20 NF)

4шт.

3

23103

DECAL

SECTION - end, control valve

1шт.

4

D21922

O-RING

"O" RING - seal (23105)

4шт.

5

23107

HYDRAULIC HOSE

SECTION - center, control valve

1шт.

6

84-624

SCREW - socket head, cup pt. (3/8 - 24 NF x 1-1/2)

3шт.

7a

23108

HYDRAULIC HOSE

VALVE - double acting, spring return

1шт.

8

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING - valve spool

2шт.

9

D21922

O-RING

"O" RING - valve body (23105)

4шт.

10

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

11

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

12

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

"O" RING - seal, check valve cap

1шт.

13

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

14

23122

HYDRAULIC HOSE

RETAINER - valve spool "O" ring

1шт.

15

16205

RETAINER - spool spring

1шт.

16

23127

SPRING

- valve spool

1шт.

17

23125

HYDRAULIC HOSE

GUIDE - valve spool spring

1шт.

18

NLS

NO LONGER SERVICED

- spring guide

1шт.

19

23115

HYDRAULIC HOSE

CAP - valve

1шт.

20

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- hex socket hd. cap (5/8 - 18 NC x 3/4) (47377)

2шт.

21

23109

HYDRAULIC HOSE

VALVE - special relief

1шт.

22

16227

HOSE

POPPET - relief valve

2шт.

23

16404

SPRING CUP

SPRING - poppet

2шт.

24

NLS

NO LONGER SERVICED

SCREW - adjusting, relief valve

2шт.

25

25-119

NUT,9/16"-18, G5

- hex (9/16 - 18 NF)

2шт.

26

48355

NUT - acorn, hex (9/16 - 18 NF)

2шт.

27

16219

GASKET

- seal, check valve cap

4шт.

28

D21922

O-RING

"O" RING - valve body (23105)

2шт.

7b

23112

HYD VALVE SECTION

SECTION - center, control valve

5шт.

8

16202

O-RING,40544" ID x 13" OD x 1"

"O" RING - seal valve spout

2шт.

9

D21922

O-RING

"O" RING - seal valve body (23105)

4шт.

10

23116

HYDRAULIC HOSE

POPPET - check valve

1шт.

11

23118

HYDRAULIC HOSE

SPRING - check valve

1шт.

12

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

"O" RING - seal, check valve cap

1шт.

13

23117

HYDRAULIC HOSE

CAP - check valve

1шт.

14

23122

HYDRAULIC HOSE

RETAINER - "O" ring, valve spool

1шт.

15

16205

RETAINER - spool spring

1шт.

16

23127

SPRING

- valve spool

1шт.

17

23125

HYDRAULIC HOSE

GUIDE - valve spool spring

1шт.

18

16413

HOSE

- spring guide

1шт.

19

23115

HYDRAULIC HOSE

CAP - valve

1шт.

20

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- hex socket head (5/16 - 18 NC x 3/4) (47377)

2шт.

29

23128

HYDRAULIC HOSE

SECTION - end, relief valve

1шт.

30

23130

VALVE - relief

1шт.

31

23138

O-RING

SNAP RING - popper retaining

1шт.

32

23144

THREADED TIE-ROD

WASHER - popper spring

1шт.

33

23137

VALVE SPRING

SPRING - poppet

1шт.

34

23134

HYDRAULIC HOSE

POPPET - relief valve

1шт.

35

O8377AB

X

"O" RING - valve shell

1шт.

36

23146

WASHER

- fibre, valve shell

1шт.

37

23133

HYDRAULIC HOSE

SHELL - relief valve

1шт.

38

VT2983

X

"O" RING - seal, valve seat

1шт.

39

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup, "O" ring

1шт.

40

23135

HYDRAULIC HOSE

SEAT - valve

1шт.

41

23136

SPRING

- relief valve

1шт.

42

23143

WASHER

- relief valve spring

1шт.

43

23148

SEAL

WASHER - fibre, relief valve cap

1шт.

44

23139

GASKET

CAP - valve

1шт.

45

23140

STUD

SCREW - adjusting

1шт.

46

23150

WASHER

- copper, adjusting screw nuts

2шт.

47

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8 - 24 NF) (23141)

1шт.

48

NLS

NO LONGER SERVICED

NUT- acorn, adjusting screw cap (3/8 - 24 NF)

1шт.
