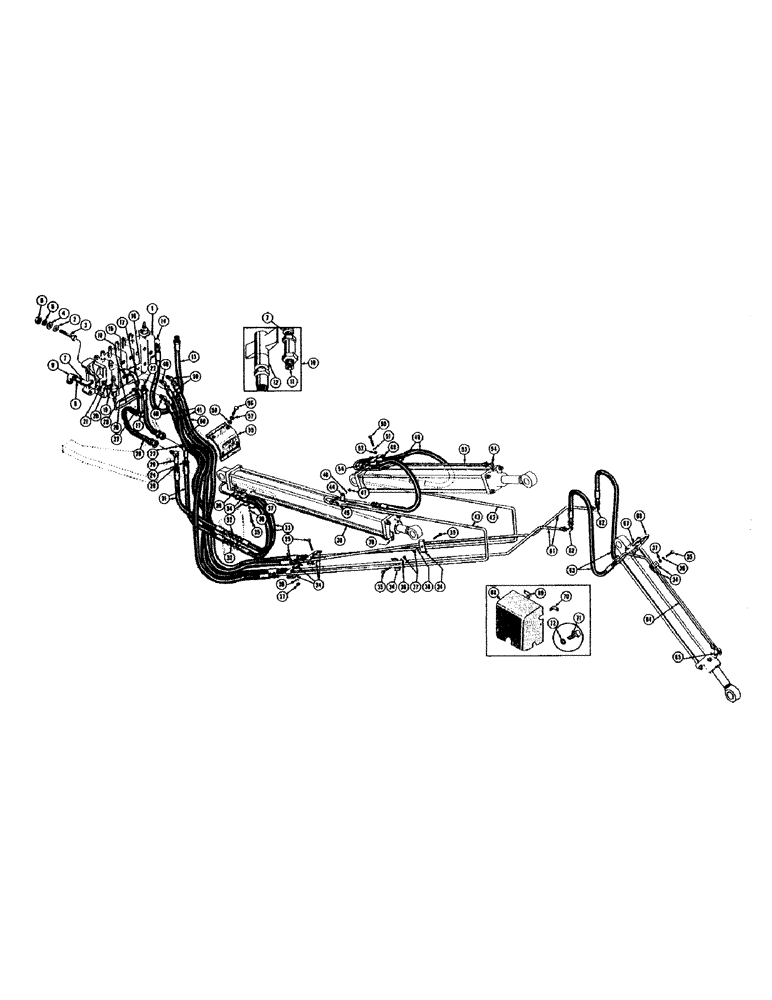

Запчасти Case 420B (42) - VALVE, BOOM, DIPPER ARM, AND DUMP CYLINDER HYDRAULICS

1

34642

X

VALVE - hydraulic control, backhoe (See Figure 46)

1шт.

2

NLS

NO LONGER SERVICED

SHIM - valve mounting

1шт.

3

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2 - 20 NF x 2-1/2 (45712)

3шт.

4

195-33

WASHER,1/2"

- plain (1-1/16" O.D. x 17/32" I.D.) (48428)

3шт.

5

92-8

LOCK WASHER,1/2"

(48448) 1/2"

3шт.

6

25-118

NUT,1/2"-20, G5

- hex (1/2) (48104)

3шт.

7

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (41674) 90º, 3/4"-14, NPT

2шт.

8

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe (3/4" NPT x 3" long) (41442)

1шт.

9

221-378

ELBOW,90 Degree, 3/4" NPT

- (3/4" JIC & 3/4" NPT)

1шт.

10

35146

DISCONNECT - quick

1шт.

11

36262

DISCONNECT - quick (Male half)

1шт.

12

36263

DISCONNECT - quick (Female half)

1шт.

13

36232

HOSE ASSY.

HOSE - valve to quick disconnect

1шт.

14

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male (3/4" JIC & 3/4" NPT) (50116)

1шт.

15

D21315

NIPPLE - pipe (1/2" NPT x 3-1/2" long)

1шт.

16

221-424

TEE,1/2" NPT

- pipe () (41583) 1/2" NPT

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees (5/8" JIC & 1/2" NPT) (50114)

2шт.

18

D20251

TUBE - control valve to relief valve

1шт.

19

33959

PIPE FITTING

VALVE - relief (See page 19)

1шт.

20

D21315

NIPPLE - pipe (1/2" NPT x 3-1/2" long)

1шт.

21

221-60

TUBE

BUSHING - reducing (3/4" NPT & 1/2" NPT) (41643)

1шт.

22

D21317

HOSE - street elbow to RH male elbow (Replaces tube on some backhoes), boom cyl hyd system

1шт.

23

50878

ROLLER

ELBOW - special 90 degrees, boom cyl hyd system

1шт.

24

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14 NF) (48198), boom cyl hyd system

1шт.

25

D21316

NIPPLE - pipe (1/2" NPT x 2" long), boom cyl hyd system

1шт.

26

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street (1/2" NPT) (41673), boom cyl hyd system

1шт.

27

60374

VALVE

- control, flow (See page 45), boom cyl hyd system

1шт.

28

D21320

HOSE - flow control valve to LH male elbow (Replaces tube on some backhoes), boom cyl hyd system

1шт.

29

50878

ROLLER

ELBOW - 90 degree special, boom cyl hyd system

1шт.

30

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14 NF) (48198), boom cyl hyd system

1шт.

31

38462

HOSE ASSY.

HOSE - to boom cylinder (Front section), hyd system

2шт.

32

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ, boom cyl hyd system

2шт.

33

35209

HOSE ASSY.

HOSE - to boom cylinder (Rear section), hyd system

2шт.

34

31665

COLLAR CLAMP

CLAMP - hose, rear section hose, boom cyl hyd system

2шт.

35

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(45634), Boom cyl hyd system Hex, 5/16"-24 x 1 3/4", G5

1шт.

36

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), boom cyl hyd system 5/16"

1шт.

37

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (48101), boom cyl hyd system

1шт.

38

35206

TUBE - to boom cylinder front ports, hyd system

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8" JIC & 1/2" NPT) (50114), boom cyl hyd system

2шт.

40

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male (5/8" JIC & 1/2" NPT) (50144), dipper arm hyd system

2шт.

41

36252

BEARING ASSY

HOSE - valve to tube, dipper arm hyd system

2шт.

42

36759

PIN

TUBE - to dipper cylinder, RH, arm hyd system

1шт.

43

36760

PIN

TUBE - to dipper cylinder, LH, arm hyd system

1шт.

34

31665

COLLAR CLAMP

CLAMP - tube, dipper arm hyd system

2шт.

35

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(45634), Dipper arm hyd system Hex, 5/16"-24 x 1 3/4", G5

1шт.

36

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), dipper arm hyd system 5/16"

1шт.

37

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (48101), dipper arm hyd system

1шт.

44

D20043

CLAMP -tube, dipper arm hyd system

2шт.

45

14-416

SCREW,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1, G5, Full Thd (45606), Dipper arm hyd system

2шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444), Dipper arm hyd system 1/4"

2шт.

47

25-114

NUT,1/4"-28, G5

- hex (1/4 - 28 NF) (48100), dipper arm hyd system

2шт.

48

D27478

HOSE ASSY.

HOSE - tube to dipper cylinder, arm hyd system

2шт.

49

31665

COLLAR CLAMP

CLAMP - hose, dipper arm hyd system

2шт.

50

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(45634), Dipper arm hyd system Hex, 5/16"-24 x 1 3/4", G5

1шт.

51

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), dipper arm hyd system 5/16"

1шт.

52

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (48101), dipper arm hyd system

1шт.

53

36811

ELECTRIC CABLE

TUBE - dipper cylinder, front port, arm hyd system

1шт.

54

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male 90 degrees (5/8" JIC & 1/2" NPT) (50114), dipper arm hyd system

2шт.

55

35192

BRACKET - hose mtg., dipper arm hyd system

1шт.

56

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4 (45659), dipper arm hyd system

4шт.

57

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446), dipper arm hyd system 3/8"

4шт.

58

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102), dipper arm hyd system

4шт.

59

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree male (5/8" JIC x 1/2" NPT) (50144), dump cyl hyd system

2шт.

60

NLS

NO LONGER SERVICED

HOSE - valve to tube, dump cyl hyd system

2шт.

61

35195

TUBE - to dump cylinder, hyd system

2шт.

62

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree bulkhead (5/8" JIC) (50526), dump cyl hyd system

2шт.

63

19178

HOSE

- to dump cylinder, hyd system

2шт.

64

35027

HYD TUBE

TUBE - to dump cylinder front port, hyd system

1шт.

65

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8" JIC & 1/2" NPT) (50114), dump cyl hyd system

1шт.

34

31665

COLLAR CLAMP

CLAMP - tube, dump cyl hyd system

2шт.

35

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(45632), Dump cyl hyd system Hex, 5/16"-24 x 1 1/4", G5

1шт.

36

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), dump cyl hyd system 5/16"

1шт.

37

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (48101), dump cyl hyd system

1шт.

66

D20255

TUBE - to dump cylinder rear port, hyd system

1шт.

67

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (5/8" JIC & 1/2" NPT) (50114), dump cyl hyd system

1шт.

68

D20557

SHIELD - hydraulic control valve, dump cyl system

1шт.

69

D20644

BRACKET - mtg., LH, dump cyl hyd system

2шт.

70

D20645

BRACKET - mtg., RH, dump cyl hyd system

1шт.

71

14-610

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5, Full Thd

HHCS - 3/8 - 24 NF x 5/8 (45653), dump cyl hyd system

4шт.

72

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446), dump cyl hyd system 3/8"

4шт.
