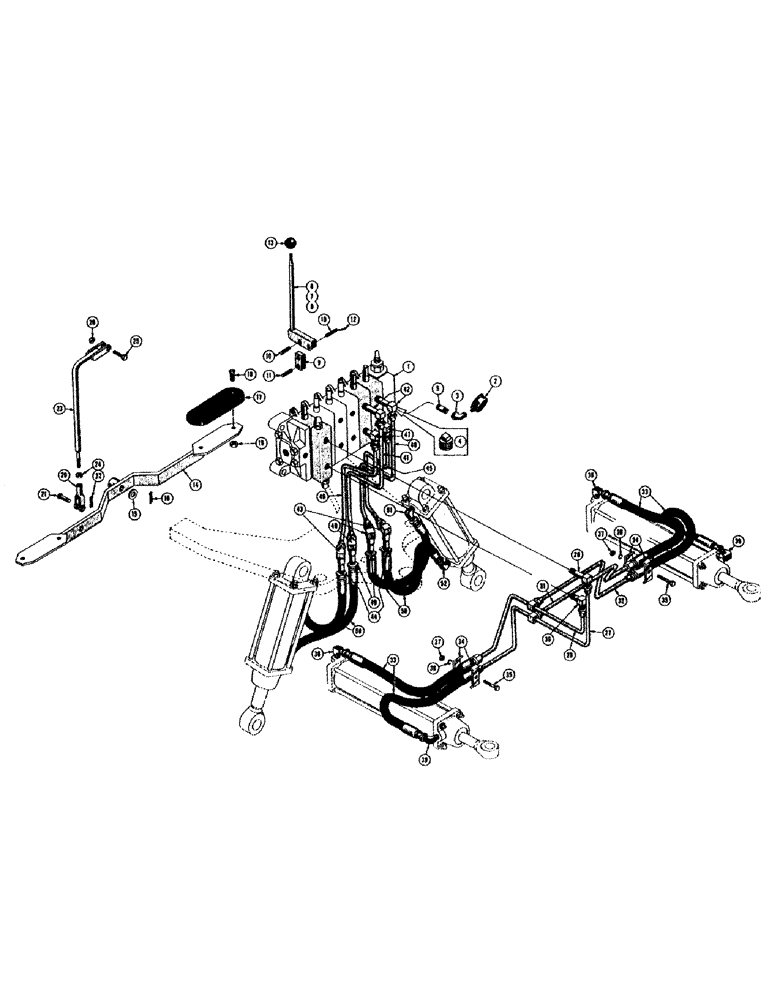

Запчасти Case 420B (40) - VALVE AND CONTROLS, SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS

1

34642

X

VALVE - hydraulic control, backhoe (See Figure 46)

1шт.

2

35117

X

GAUGE - oil pressure

1шт.

3

221-395

FITTING

ELBOW - 90 degree reducing (3/4" NPT to 1/4" NPT) (41765)

1шт.

4

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe (3/4" NPT)

1шт.

5

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe (3/4" NPT x 1-3/8" long) (41404)

1шт.

6

35382

LEVER - valve (Boom control - 11-1/4 long)

1шт.

7

35159

LEVER - valve (Dipper arm control - 9-3/4 long)

2шт.

8

35160

WASHER

LEVER - valve (Stabilizer control - 8-1/2 long)

2шт.

9

35161

LINK -, Serial Range: lever-valve

5шт.

10

35173

PIN

- valve lever to link (1-7/16 long)

10шт.

11

35172

PIN - valve to lever (1-1/8 long)

5шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

30шт.

13

70213

KNOB

- control lever

5шт.

14

36137

BAR - swing cylinder control

1шт.

15

195-45

WASHER,3/4"

(48432) 3/4"

1шт.

16

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), (48720) 3/16" x 1 1/4"

1шт.

17

35253

NUT

PEDAL - control bar

2шт.

18

74-412

SCREW - flat hd. machine (1/4 - 28 NF x 3/4) (47102)

4шт.

19

25-114

NUT,1/4"-28, G5

- hex (1/4 - 28 NF) (48100)

4шт.

20

48603

X

YOKE - swing cylinder control rod (213-4)

1шт.

21

48663

X

PIN - yoke, swing cylinder control rod (141-4)

1шт.

22

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (48683)

1шт.

23

36135

SUPPORT

ROD - swing cylinder control

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102)

1шт.

25

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24 NF x 1-3/4 (45659)

1шт.

26

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF) (17606)

1шт.

27

36193

TUBE - top of valve section LH swing cylinder hyd system

1шт.

28

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree extra long male (1/2" JIC & 1/2" NPT) (50577), swing cyl hyd system

1шт.

29

36190

HYD TUBE

TUBE - bottom of valve section to LH swing cylinder, hyd system

1шт.

30

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male (1/2" JIC & 1/2" NPT) (50112), swing cyl hyd system

1шт.

31

36196

SEAL

TUBE - to RH swing cylinder, bottom, hyd system

1шт.

32

36194

LOCK WASHER

TUBE - to RH swing cylinder, top, hyd system

1шт.

33

38349

HOSE - to swing cylinders, hyd system

4шт.

34

31665

COLLAR CLAMP

CLAMP - hose to foot rest, swing cyl hyd system

2шт.

35

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(45634), Swing cyl hyd system Hex, 5/16"-24 x 1 3/4", G5

2шт.

36

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), swing cyl hyd system 5/16"

2шт.

37

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) (48101), swing cyl hyd system

2шт.

38

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- front cylinder ports, 90 degree male (1/2" JIC & 1/2" NPT) (50112), swing hyd system

2шт.

39

D20167

X

ELBOW - special flow restrictor, swing cylinder rear ports, hyd system

2шт.

40

36198

TUBE - top of valve section to RH stabilizer (RH), cyl hyd system

1шт.

41

36200

SCREW

TUBE - top of valve section to LH stabilizer (LH), cyl hyd system

1шт.

42

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- extra long male (1/2" JIC & 1/2" NPT) (50577), stabilizer cyl hyd system

2шт.

43

50879

PROFILE

ELBOW - 90 degree special, stabilizer cyl hyd system

2шт.

44

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam (3/4 - 16 NF) (48197), stabilizer cyl hyd system

2шт.

45

36206

FLEXIBLE HOSE

TUBE - bottom of valve section to stabilizer (RH), cyl hyd system

1шт.

46

36208

TUBE - bottom of valve section to LH stabilizer (LH), cyl hyd system

1шт.

47

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- extra long male (1/2" JIC &1/2" NPT) (50112), stabilizer cyl hyd system

2шт.

48

50879

PROFILE

ELBOW - 90 degree special, stabilizer cyl hyd system

2шт.

49

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam (3/4 - 16 NF) (48197), stabilizer cyl hyd system

2шт.

50

36210

HOSE

- stabilizer cylinder, hyd system

4шт.

51

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- stabilizer cylinder, top (1/2" JIC & 1/2" NPT) (50112), hyd system

2шт.

52

D20167

X

ELBOW - special flow restrictor, stabilizer cylinder (Lower), hyd system

2шт.
