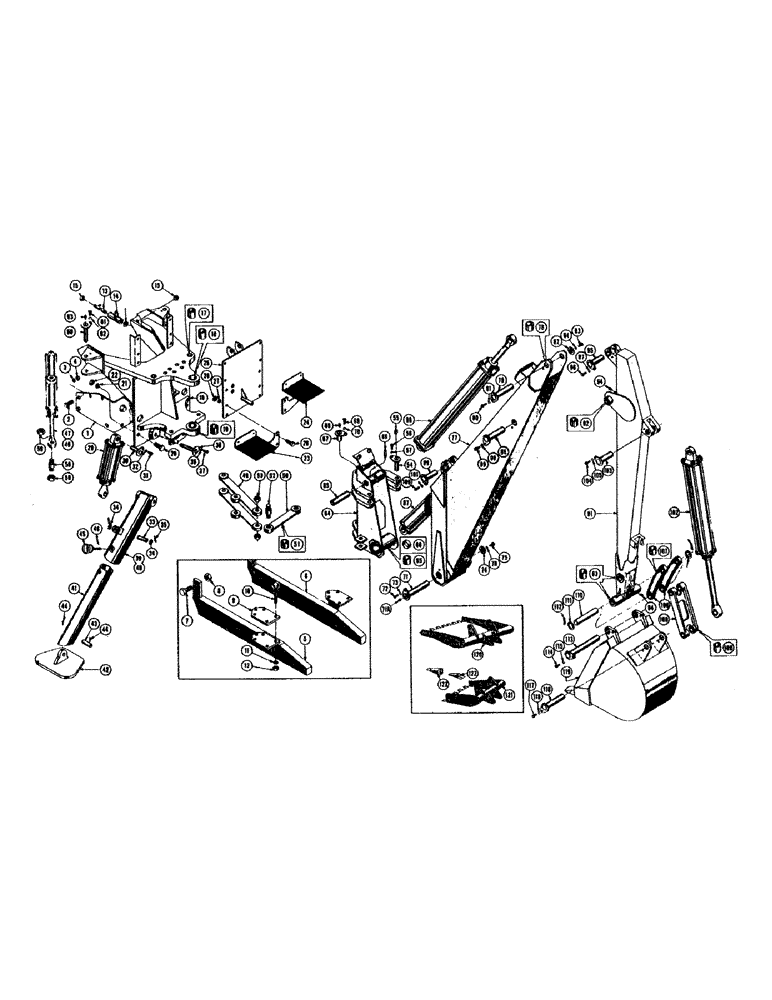

Запчасти Case 420B (34) - MOUNTING PARTS, CYLINDERS, ARMS, AND BUCKETS, MOUNTING PARTS

1

D20670

PLATE - mounting

1шт.

2

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

HHCS - 3/4 - 16 NF x 4 (45793)

6шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

6шт.

4

25-1112

NUT,3/4"-16, G5

- hex (3/4 - 16 NF) (48107)

6шт.

5

D20665

ARM - support, LH

1шт.

6

D20666

ARM - support, RH

1шт.

7

14-1656

HHCS - 1 - 14 NF x 3-1/2

2шт.

8

11937

O-RING

NUT - lock (1 - 14 NF)

2шт.

9

DR10002

BRACKET - frame to rear axle

2шт.

10

14-10112

BOLT (MACHINE),Hex, 5/8" - 18 x 7", Gr 5

HHCS - 5/8 - 18 NF x 7

8шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

8шт.

12

25-1110

NUT,5/8"-18, G5

- hex (5/8 - 18 NF) (48106)

8шт.

13

D20680

ROD - tie

2шт.

14

D20682

TUBE - spacer, tie rod

2шт.

15

11935

O-RING

NUT - lock (3/4 - 16 NF)

4шт.

16

38440

BRACKET - mounting

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing link

4шт.

18

36121

BUSHING

- tower pivot, upper

1шт.

19

70466

BUSHING

- tower pivot, lower

2шт.

20

14-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/2 (45837)

2шт.

21

92-16

LOCK WASHER,1"

WASHER, LOCK, (48456) 1"

2шт.

22

25-1116

NUT,1"-14, G5

- hex (1 - 14 NF) (48109)

2шт.

23

36084

SCREW

REST - foot, LH

1шт.

24

36085

O-RING

REST - foot, RH

1шт.

25

36646

CASING, BEARING ROLL

PLATE - mounting, valve

1шт.

26

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2 - 20 NF x 1-3/4 (45709)

6шт.

27

92-8

LOCK WASHER,1/2"

(48448) 1/2"

6шт.

28

25-118

NUT,1/2"-20, G5

- hex (1/2 - 20 NF) (48104)

6шт.

29

38464

SEPARATOR

CYLINDER - hydraulic stabilizer (See Figure 49)

2шт.

30

34961

PIN - upper pivot, stabilizer cylinder

2шт.

31

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (45704), stabilizer

2шт.

32

92-8

LOCK WASHER,1/2"

(48448), stabilizer 1/2"

2шт.

33

35037

PIN - stabilizer, Serial Range: cylinder-arm

2шт.

34

32625

WASHER - stabilizer pin (2-1/2" O.D. x 1-9/32" I.D. x 11/64")

4шт.

35

132-152

PIN

- cotter (1/4 x 1-3/4) (48738), stabilizer

4шт.

36

34629

PIN - mounting, stabilizer arm

2шт.

37

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (45704), stabilizer

2шт.

38

92-8

LOCK WASHER,1/2"

(48448), stabilizer 1/2"

2шт.

39

36269

ARM - stabilizer, RH

1шт.

40

36270

ARM - stabilizer, LH

1шт.

41

36266

LEG - stabilizer

2шт.

42

35731

BUSHING

FOOT - stabilizer

2шт.

43

36268

SPRING

PIN - stabilizer foot

2шт.

44

O2072FH

X

ROLL PIN - stabilizer, foot (1/4 x 2) (138-142)

4шт.

45

38679

PIN - stabilizer arm to lower leg

2шт.

46

132-152

PIN

- cotter (1/4 x 1-3/4) (48738), swing

2шт.

47

38374

WASHER

CYLINDER - hydraulic, swing (LH) (See Figure 48)

1шт.

48

38375

CYLINDER - hudraulic, swing (RH) (See Figure 48)

1шт.

49

D20158

LINK - swing, front

4шт.

50

36088

LINK - swing, rear

2шт.

51

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rear swing link

8шт.

52

D21342

BOLT - front swing link

4шт.

53

131-370

LOCK NUT

NUT - lock (1 - 14 NF) (17585), swing

8шт.

54

D21331

PIN - link to tower, swing

2шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - straight (Lincoln #5000) (49200), swing

2шт.

56

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (45704), swing

2шт.

57

92-8

LOCK WASHER,1/2"

(48448), swing 1/2"

2шт.

58

36260

X

BOLT - swing, Serial Range: cylinder-link

2шт.

59

131-370

LOCK NUT

NUT - lock (1 - 14 NF) (17585), swing

4шт.

60

35031

PIN

- pivot, swing cylinder

4шт.

61

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (45704), swing

4шт.

62

92-8

LOCK WASHER,1/2"

(48448), swing 1/2"

4шт.

63

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - 67-1/2 degrees (Lincoln #5300) (49215), swing

4шт.

64

36113

TRACK ROD ASSY

TOWER - boom

1шт.

65

31139

X

BUSHING - boom pivot, tower

2шт.

66

D21282

SPACER - bushings, tower & boom

1шт.

67

34895

PIN - tower to mounting bracket, boom

2шт.

68

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) (49217), Tower & boom 90º, 1/8" NPT x .84" lg

2шт.

69

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), tower & boom

2шт.

70

92-8

LOCK WASHER,1/2"

(48448), tower & boom 1/2"

2шт.

71

36156

PIN -, Serial Range: boom-tower

1шт.

71a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - straight (Lincoln #5000) (49200), tower & boom

1шт.

72

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (45704), tower & boom

1шт.

73

92-8

LOCK WASHER,1/2"

(48448), tower & boom 1/2"

1шт.

74

34948

WASHER - boom, lower (3" O.D. x 13/16" I.D.), tower

1шт.

75

14-1220

HHCS - 3/4 - 16 NF x 1-1/4 (45782), tower & boom

1шт.

76

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452), Tower & boom 3/4"

1шт.

77

36098

BOOM, tower

1шт.

78

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- pin, upper end, tower & boom

2шт.

79

34896

PIN - dipper arm to boom, tower

1шт.

80

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), tower & boom

1шт.

81

92-8

LOCK WASHER,1/2"

(48448), tower & boom 1/2"

1шт.

82

38617

WASHER - boom, upper (2-1/2" O.D. x 13/16" I.D.), tower

1шт.

83

14-1220

HHCS - 3/4 - 16 NF x 1-1/4 (45782), tower & boom

1шт.

84

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452), Tower & boom 3/4"

1шт.

85

34949

PIN - boom, Serial Range: cylinder-tower

1шт.

86

49870

BOLT

PIN - driv-lok (3/8 x 2-1/2 - type E), tower & boom

1шт.

87

36070

TOY

CYLINDER - hydraulic, boom (See Figure 51), tower

1шт.

88

34897

PIN - boom cylinder to, tower

1шт.

89

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), tower & boom

1шт.

90

92-8

LOCK WASHER,1/2"

(48448), tower & boom 1/2"

1шт.

91

36030

ROLLER

ARM - dipper

1шт.

92

31148

BUSHING - dipper, Serial Range: arm-boom

2шт.

93

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket and link pins to dipper arm

8шт.

94

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - straight (Lincoln #5000) (49200), dipper arm

2шт.

95

31109

PIN ASSY.

PIN - dipper arm, cylinder

1шт.

96

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), dipper arm

1шт.

97

92-8

LOCK WASHER,1/2"

(48448), dipper arm 1/2"

1шт.

98

36770

CYLINDER - hydraulic, dipper arm (See Figure 50)

1шт.

99

D20285

PIN - dipper arm, Serial Range: cylinder-boom

1шт.

100

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), dipper arm

1шт.

101

92-8

LOCK WASHER,1/2"

(48448), bucket 1/2"

1шт.

102

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - hydraulic, bucket dump (See Figure 52)

1шт.

103

31109

PIN ASSY.

PIN - bucket cylinder to dipper arm

1шт.

104

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), bucket

1шт.

105

92-8

LOCK WASHER,1/2"

(48448), bucket 1/2"

1шт.

106

34973

LINK - bucket

2шт.

107

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket link

4шт.

108

34974

LINK - bucket dump

1шт.

109

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dump link, bucket

4шт.

110

34999

PIN - 34973 links, bucket

2шт.

111

32625

WASHER - pin (2-1/2" O.D. x 1-9/32" I.D. x 11/64"), bucket

4шт.

112

132-152

PIN

- cotter (1/4 x 1-3/4) (48738), bucket

4шт.

113

35288

PIN - dipper, Serial Range: arm-bucket

1шт.

114

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), bucket

1шт.

115

92-8

LOCK WASHER,1/2"

(48448), bucket 1/2"

1шт.

116

35290

PIN

- bucket dump, Serial Range: link-bucket

1шт.

117

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706), bucket

1шт.

118

92-8

LOCK WASHER,1/2"

(48448), bucket 1/2"

1шт.

119

D20807M

BUCKET - (14") Machinery item

1шт.

37289

BLADE - cutting, D20807M bucket

1шт.

119

37535M

BUCKET - (16") Machinery item (Use D20808M)

1шт.

119

D20808M

BUCKET - (16") Machinery item (Replaces 37535M)

1шт.

36894

BLADE - cutting, 37535M and D20808 buckets

1шт.

120

37698M

BUCKET - bellhole (16") Machinery item

1шт.

37696

BLADE - cutting, 37698M bucket

1шт.

119

D20809M

BUCKET - (19") Machinery item (Standard)

1шт.

35282

FINGER

BLADE - cutting, D20809M bucket

1шт.

35271M

BUCKET - (24") Machinery item (Use D20810M)

1шт.

119

D20810M

BUCKET - (24") Machinery item (Replaces 35271M)

1шт.

35277

KNIFE

BLADE - cutting, 35271M and D20810M buckets

1шт.

35293M

BUCKET - (30") Machinery item (Use D20811M)

1шт.

119

D20811M

BUCKET - (30") Machinery item (Replaces 35293M)

1шт.

35294

BLADE - cutting, 35293M and D20811M buckets

1шт.

120

37446M

BUCKET - bellhole (30") Machinery item

1шт.

37448

BLADE - cutting, 37446M bucket

1шт.

120

D20461M

BUCKET - bellhole and graveyard (36") Machinery item

1шт.

D20453

BLADE - cutting, D20461M bucket

1шт.

121

37910M

BUCKET - graveyard (38") Machinery item

1шт.

37908

BLADE - cutting, 37910M bucket

1шт.

122

35204

SHANK - bucket teeth (4 for 14", 16", 19"; 5 for 24"; 6 for 30"; 8 for 36", 38" buckets) (Included with all buckets)

1шт.

123

35205

X

TOOTH - bucket (4 for 14", 16", 19"; 5 for 24"; 6 for 30"; 8 for 36" and 38" buckets) (Included with all buckets)

1шт.
