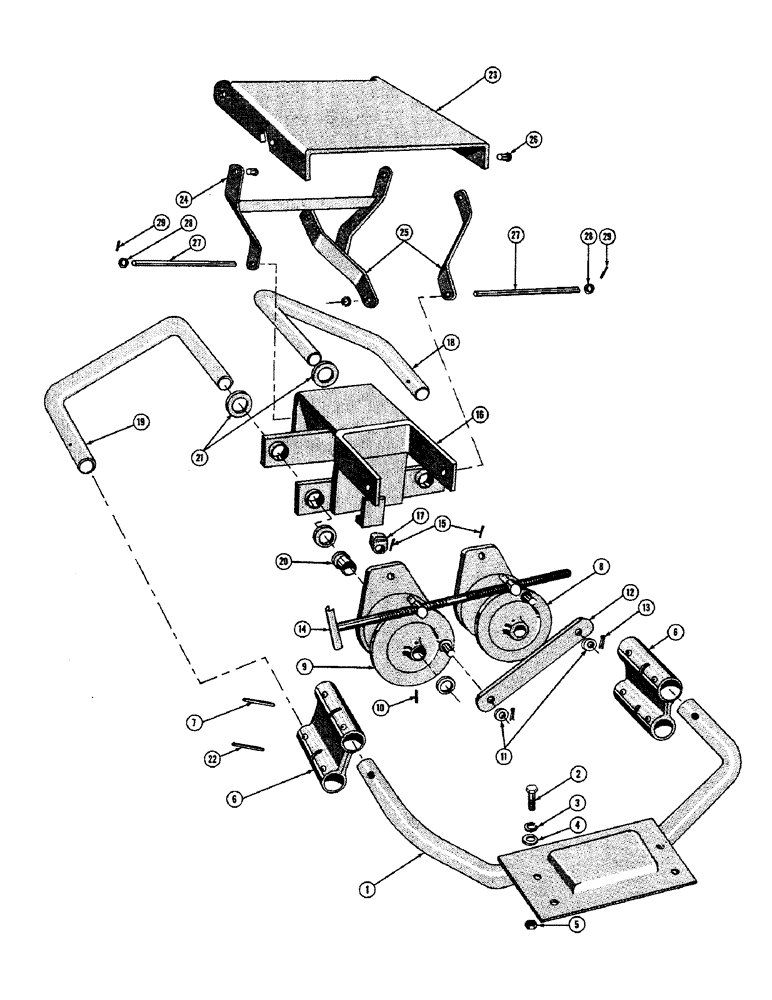

Запчасти Case 420B (32) - EASY RIDE SEAT

1

G13034

SUPPORT - seat

1шт.

2

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4 (45657)

4шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

4шт.

4

95-6

WASHER,3/8"

- std. wrot (3/8) (48406)

4шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102)

4шт.

6

G45004

LEVER

- short suspension

2шт.

7

O2105FH

X

PIN - roll, seat support (5/16 x 1-3/4)

2шт.

8

G45002

SPRING SEAT

SPRING - rubber, RH

1шт.

9

G45003

SPRING SEAT

SPRING - rubber, LH

1шт.

10

135-76

GROOVED PIN,1/4" x 1 1/4", Type A

PIN, GROOVED, 1/4" x 1 1/4, Type A

2шт.

11

O2922A

X

WASHER - stabilizer link (1" O.D. x 17/32" I.D. x 14 ga.)

4шт.

12

G45005

LINK - stab

1шт.

13

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

14

G45001

STUD

- adjusting

1шт.

15

O2060FH

X

PIN - roll, adjusting stud (3/8 x 3/4)

2шт.

16

G45031

BRACKET - support assembly

1шт.

17

VT5513

X

BUMPER - rubber

1шт.

18

G46000

SHAFT - spring, RH

1шт.

19

G46001

SHAFT - spring, LH

1шт.

20

G46002

FLANGED BEARING

BEARING - flange

2шт.

21

O1167AB

X

WASHER - spring shafts (1-1/4" O.D. x 49/64" I.D x 14 ga.)

6шт.

22

O2068FH

X

PIN - roll, for spring shafts (1/4 x 1-1/4)

2шт.

23

G10778

CHANNEL

- seat mounting

1шт.

24

G13379

ARM - front pivot, mounting channel

1шт.

25

G10775

ARM

- rear pivot, mounting channel

2шт.

26

G10779

RIVET

- pivot arm, seat mounting channel

4шт.

27

G10785

X

SHAFT - pivot

2шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16) (48405)

4шт.

29

O2700FH

X

PIN - roll, pivot shaft (3/32 x 5/8 )

4шт.
