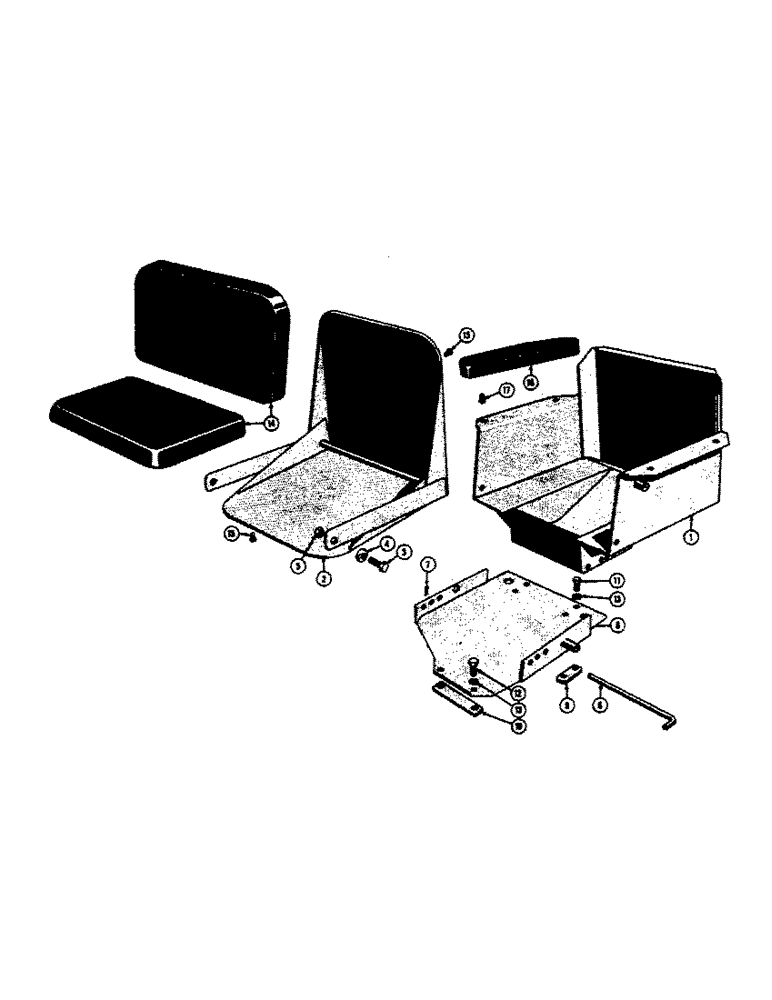

Запчасти Case 420B (31) - HOOD, GRILL, AND SIDE PANELS, SEAT

1

36061

SEAT - tractor

1шт.

2

36060

OIL SEAL,53.19mm ID x 69.19mm OD x 9.53mm Thk

FRAME - seat

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4 (45707)

2шт.

4

95-8

WASHER,1/2"

- std. wrot (48408) 1/2"

2шт.

5

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF) (17586)

2шт.

6

36047

PIN - seat adjusting

1шт.

7

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), (48693) 1/8" x 5/8"

1шт.

8

36057

BEARING CONE,38.11mm ID x 19.05mm W

BRACKET - mounting, seat

1шт.

9

D20072

SPACER - mounting bracket, rear

2шт.

10

D20080

SPACER - mounting bracket, front

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(45057) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(45059) Hex, 3/8"-16 x 1 3/4", G5

2шт.

13

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

14

36112

CUSHION - seat

2шт.

15

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- flat hd. machine (1/4 - 20 NC x 3/4) (46961)

8шт.

16

D20853

CUSHION - arm rest

2шт.

17

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- flat hd. machine (1/4 - 20 NC x 3/4) (46961)

4шт.
