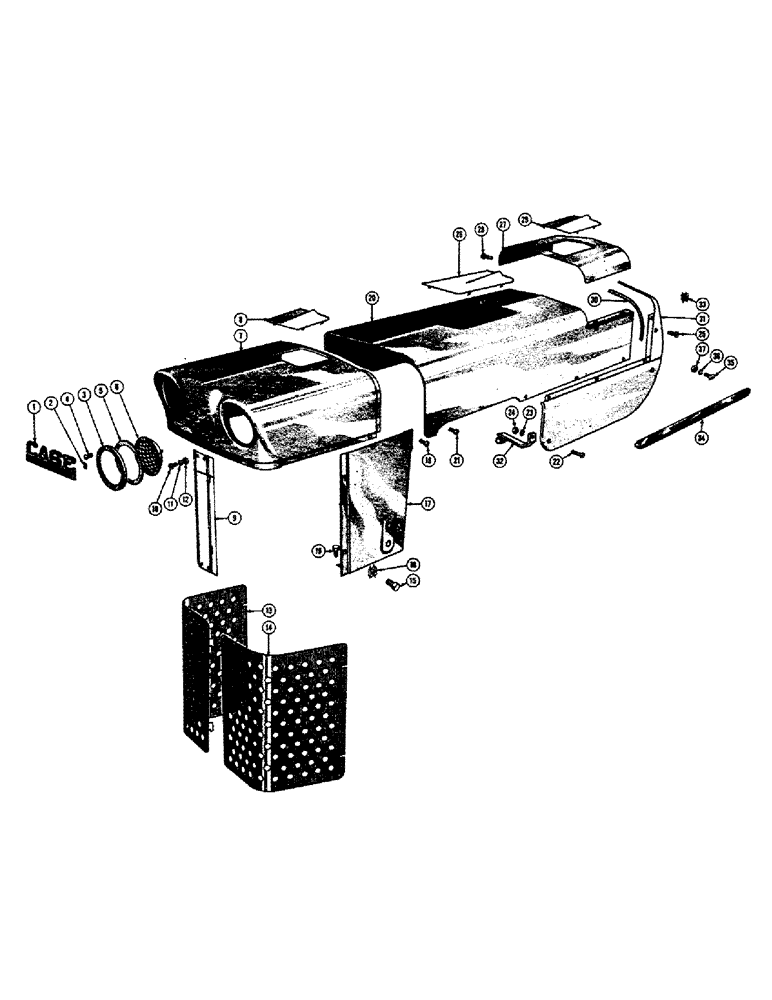

Запчасти Case 420B (30) - HOOD, GRILLE, AND SIDE PANELS

1

A11320

PLATE

NAMEPLATE - "CASE"

1шт.

2

A11319

X

CLIP - speed, nameplate mounting

2шт.

3

A11275

RING

- retainer head lamp

2шт.

4

187-1008

SCREW - self tapping (#6 - 32 x 1/2" pan hd., type #1)

6шт.

5

A11276

GASKET

- head lamp and rim

2шт.

6

A11280

LAMP

- head RH and LH

2шт.

7

G14078

CAP - grille

1шт.

8

A11270

DOOR

- radiator access

1шт.

9

G14053

BRACE - center, grille

1шт.

10

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- truss hd. machine (1/4 - NC x 3/4)

4шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

12

25-104

NUT,1/4"-20, G5

(47800) 1/4"-20, G5

4шт.

13

D20492

GRILLE - RH section

1шт.

14

D20494

GRILLE - LH section

1шт.

15

G16716

X

SCREW - grille to side panel

4шт.

16

G48002

X

NUT - retainer

4шт.

G14060

PANEL - side, RH front

1шт.

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- truss hd. machine (1/4 - NC x 1/2)

2шт.

17

G14061

PANEL - side, LH front

1шт.

18

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- truss hd. machine (1/4 - NC x 1/2)

2шт.

19

193-510

HHCS - 5/16 - NC x 3/4 (Sems)

2шт.

20

G16717

HOOD - top

1шт.

21

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- truss hd. machine (1/4 - NC x 1/2)

2шт.

22

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- truss hd. machine (1/4 - NC x 3/4)

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.

24

25-104

NUT,1/4"-20, G5

(47800) 1/4"-20, G5

2шт.

25

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- truss hd. machine (5/16 - NC x 1/2)

4шт.

26

G13938

DOOR - fuel and oil access

1шт.

27

G16719

COVER

- battery

1шт.

28

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- tress hd. machine (1/4 - NC x 1/2)

4шт.

29

G13939

DOOR

- battery access

1шт.

30

G46137

MOULDING - rubber (16" long)

2шт.

G13992

PANEL - side, RH rear

1шт.

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- truss hd. machine (5/16 - NC x 3/4)

2шт.

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- truss hd. machine (1/4 - NC x 3/4)

1шт.

31

G13993

PANEL - side, LH rear

1шт.

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- truss hd. machine (5/16 - NC x 1/2)

2шт.

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- truss hd. machine (1/4 - NC x 3/4)

1шт.

G14054

SUPPORT - RH side panel to torque tube

1шт.

32

G14055

SUPPORT - LH side panel to torque tube

1шт.

33

G48001

X

NUT - retainer, hood to instrument panel (5/16 - NC)

4шт.

34

G46174

X

MOULDING - chrome, rear panel

2шт.

35

A11459

BOLT

"T" BOLT - moulding strip

6шт.

36

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

37

129-17

NUT,Hex, #10 - 24

NUT - hex (10-32)

6шт.
