Запчасти Case 420B (28) - TRACTOR MODIFICATION PARTS

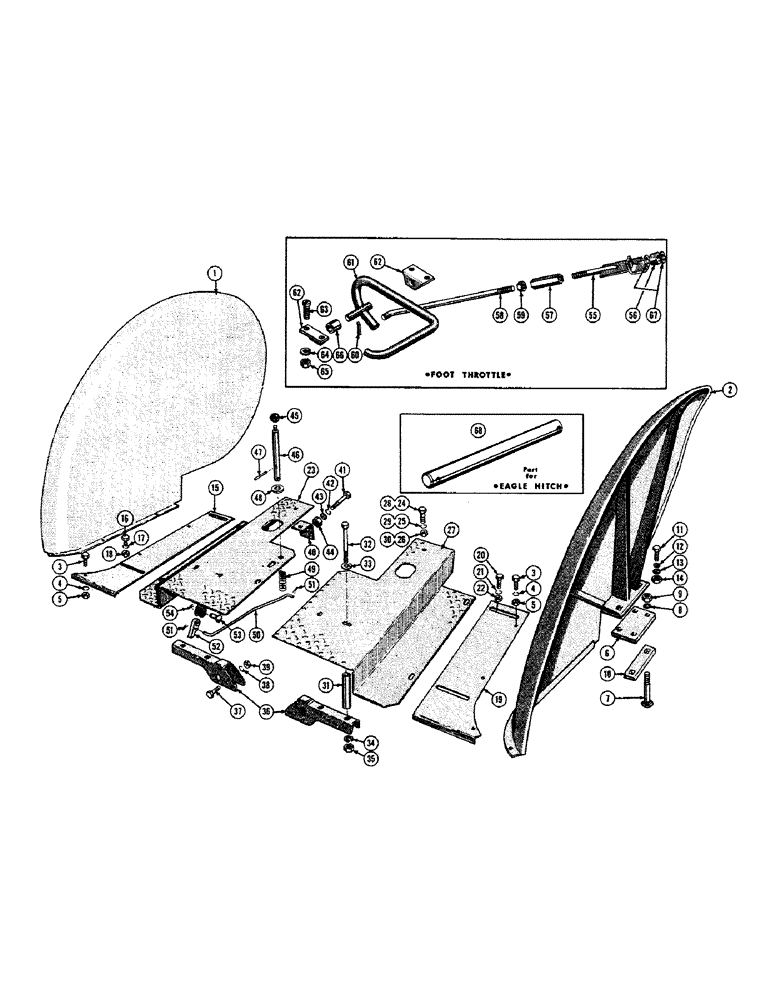

Схема запчастей Case 420B - (28) - TRACTOR MODIFICATION PARTS

Артикул

Название

Примечание

Количество

1

G13374

FENDER - RH

1шт.

2

G13375

FENDER - LH

1шт.

3

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 7/8 (45605)

6шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

6шт.

5

25-114

NUT,1/4"-28, G5

-hex (1/4 - 28 NF) (48100)

6шт.

6

38391

SPRING

SPACER - fender mounting

2шт.

7

11-7104

BOLT - carriage (7/16 - 14 NC x 6-1/2) (46721)

4шт.

8

92-7

LOCK WASHER,7/16"

WASHER, LOCK, (48447) 7/16"

4шт.

9

25-107

NUT,7/16"-14, G5

- hex (7/16 - 14 NC)

4шт.

10

VT2305

CLAMP - fender

2шт.

11

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8 - 24 NF x 1-1/2 (45658)

4шт.

12

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

4шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- std. wrot (5/16) (48405)

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102)

4шт.

15

D20800

EXTENSION - step plate, RH

1шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(45031) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16 - 18 NC) (47801)

2шт.

19

D20801

EXTENSION - step plate, LH

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(45031) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

21

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16 - 18 NC) (47801)

2шт.

23

D20720

PLATE - step, RH

1шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1 (45656)

1шт.

25

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

1шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102)

1шт.

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 7/8 (45605)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.

25-114

NUT,1/4"-28, G5

- hex (1/4 - 28 NF) (48100)

2шт.

27

D20718

PLATE - step, LH

1шт.

28

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 x 1 (45656)

1шт.

29

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102)

1шт.

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4 - 28 NF x 7/8 (45605)

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

2шт.

25-114

NUT,1/4"-28, G5

- hex (1/4 - 28 NF) (48100)

2шт.

31

36506

SPACER

- pipe, inner support (Step plate)

4шт.

32

14-688

HHCS - 3/8 - 24 NF x 5-1/2 (45670)

4шт.

33

95-6

WASHER,3/8"

- std. wrot (3/8) (48406)

4шт.

34

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

4шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8 - 24 NF) (48102)

4шт.

36

G16551

SUPPORT - front, floor plate

2шт.

37

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(45059) Hex, 3/8"-16 x 1 3/4", G5

6шт.

38

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

39

25-106

NUT,3/8"-16, G5

- hex (3/8 - 16 NC) (47802)

6шт.

40

D20725

BRACKET - step plate, rear

2шт.

41

14-10112

BOLT (MACHINE),Hex, 5/8" - 18 x 7", Gr 5

HHCS - 5/8 - 18 NC x 7

2шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

2шт.

43

95-10

WASHER,5/8"

- std. wrot (5/8) (48410)

2шт.

44

25-1110

NUT,5/8"-18, G5

- hex (5/8 - 18 NC) (48106)

2шт.

45

G10766

KNOB

- lever, brake release

1шт.

46

37278

LEVER - hand, brake release

1шт.

47

O2114FH

X

ROLL PIN - lever to step plate (1/8 x 1) (138-61)

1шт.

48

95-8

WASHER,1/2"

- std. wrot (48408) 1/2"

1шт.

49

G10707

VALVE SPRING

SPRING - brake release lever

1шт.

50

36513

SPACER

LINK - connecting, brake release, Serial Range: lever-pawl

1шт.

51

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (48681) 3/32" x 1/2"

2шт.

52

G16604

BRAKE LINE

PAWL - brake lock

1шт.

53

VC1230

PIN - pivot, brake pawl

1шт.

54

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

1шт.

55

G13469

BELL CRANK - foot throttle rod to governor control rod lever

1шт.

56

G46175

SPACER - bell crank to cross shaft

1шт.

57

G16660

TURNBUCKLE - actuating, Serial Range: rod-bellcrank

1шт.

58

D20732

ROD - actuating, foot, Serial Range: throttle-bellcrank

1шт.

59

25-104

NUT,1/4"-20, G5

(47800) 1/4"-20, G5

1шт.

60

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), (48762) 1/16" x 1/2"

1шт.

61

G13475

PEDAL - foot throttle

1шт.

62

G10762

BRACKET - pivot, foot throttle pedal

2шт.

63

75-412

SCREW,Rd, 1/4" x 3/4"

- rd. hd. machine (1/4 - 20 NC x 3/4)

4шт.

64

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (48444) 1/4"

4шт.

65

25-104

NUT,1/4"-20, G5

(47800) 1/4"-20, G5

4шт.

66

G47035

SPACER - pedal to pivot shaft

1шт.

67

95-7

WASHER,7/16"

- std. wrot (7/16) (48407)

2шт.

68

DR10603

SHAFT - turnbuckle pivot (Replaces G10472), parts for eagle hitch

1шт.

Выбрано товаров: 74
