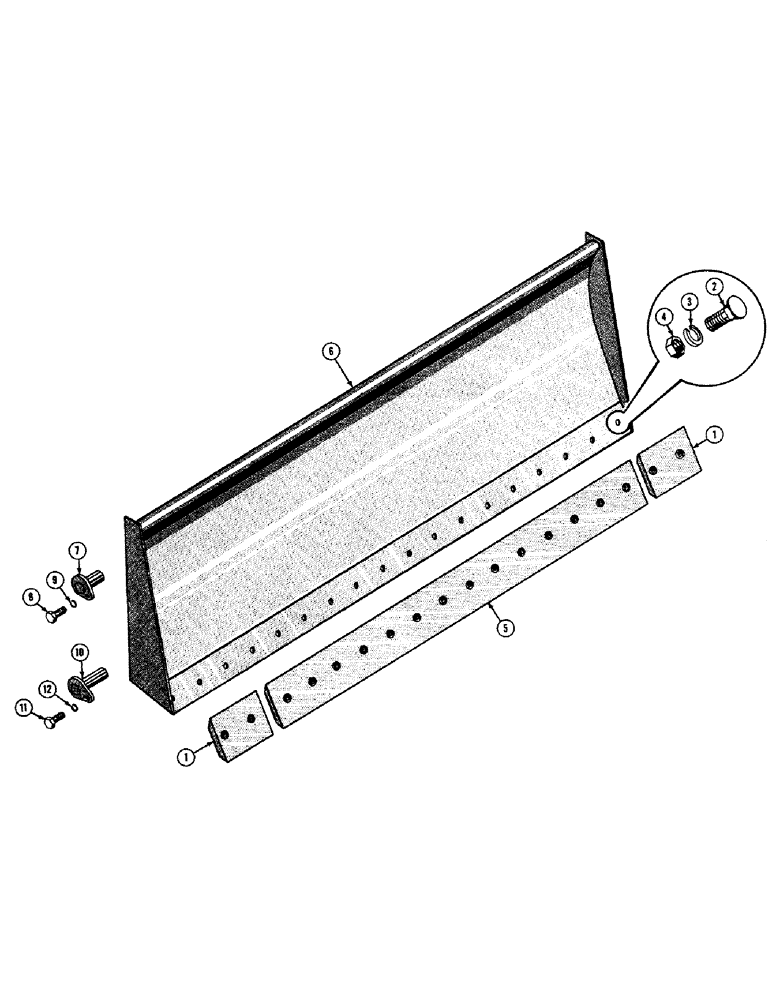

Запчасти Case 420B (07) - BULL DOZER BLADE

1

38150

EDGE

BLADE - cutting, end

2шт.

2

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2 - 13 NC x 1-3/4) (46707)

4шт.

3

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex (1/2 - 13 NC) (47804)

4шт.

5

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

2

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2 - 13 NC x 1-3/4) (46707)

14шт.

3

19-828

BOLT,1/2"-13 x 1 3/4", G5

WASHER - med. sec. lock (1/2) (48448)

14шт.

4

25-108

NUT,1/2"-13, G5

- hex (1/2 - 13 NC) (47804)

14шт.

6

D21195

BLADE - bull dozer

1шт.

7

D21218

PIN - bucket, Serial Range: cylinder-blade

2шт.

8

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

9

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

10

36117

PIN - lift, Serial Range: arm-blade

2шт.

11

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

12

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.
