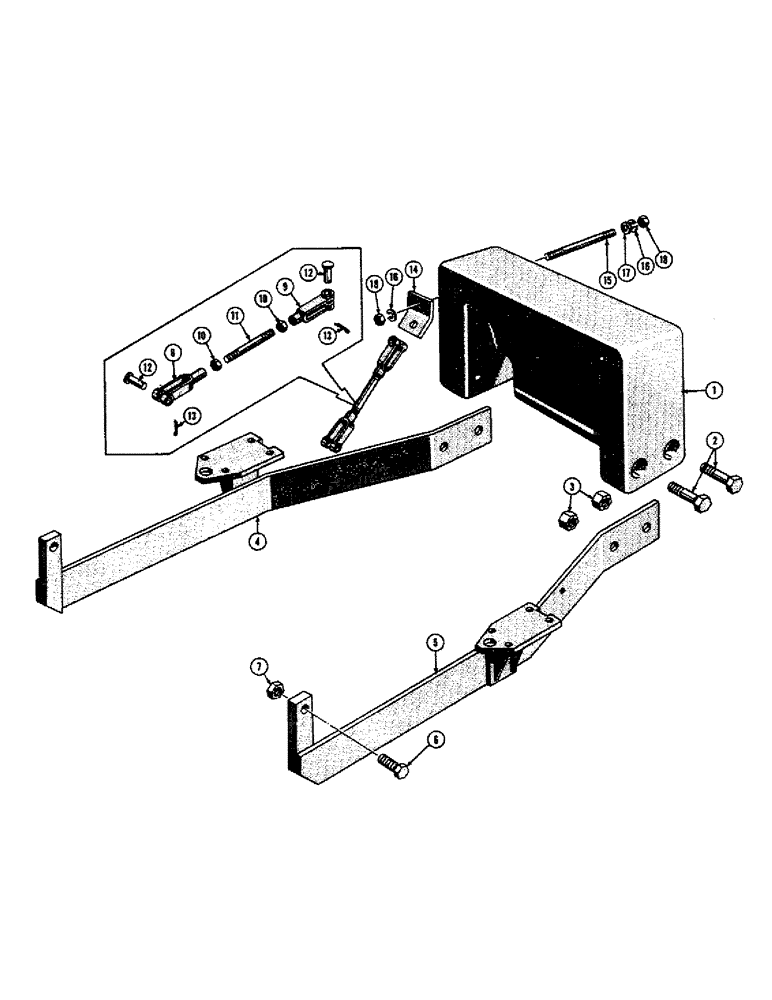

Запчасти Case 420B (26) - 900 POUND REAR COUNTERWEIGHT

1

32105

COUNTERWEIGHT - 900#

1шт.

2

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HHCS - 1 - 14 NF x 5 (45845)

4шт.

3

131-370

LOCK NUT

NUT - lock (1 - 14 NF) (17585)

4шт.

4

D20161

ARM - support, RH

1шт.

5

D20162

ARM - support, LH

1шт.

6

14-1656

HHCS - 1 - 14 NF x 3-1/2

2шт.

7

129-500

WING NUT,#10-32

NUT - lock (1 - 14 NF) (11937)

2шт.

8

48606

X

YOKE - stabilizer rod, lower

2шт.

9

O2701AB

X

YOKE - stabilizer rod, upper (48605)

2шт.

10

25-118

NUT,1/2"-20, G5

- hex (1/2 - 20 NF) (48104)

4шт.

11

D21054

ROD - stabilizer

2шт.

12

O2499AB1

X

PIN - yoke (48665)

4шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), (48695) 1/8" x 1"

4шт.

14

32167

SUPPORT - stabilizer rod

2шт.

15

32169

GEAR

BOLT - rod support

2шт.

16

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

17

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D.) (48428)

2шт.

18

25-118

NUT,1/2"-20, G5

- hex (1/2 - 20 NF) (48104)

4шт.
