Запчасти Case 420B (25) - 700 POUND AND 900 POUND REAR WEIGHT BOXES, TRACTOR WITH BACKHOE REMOVED

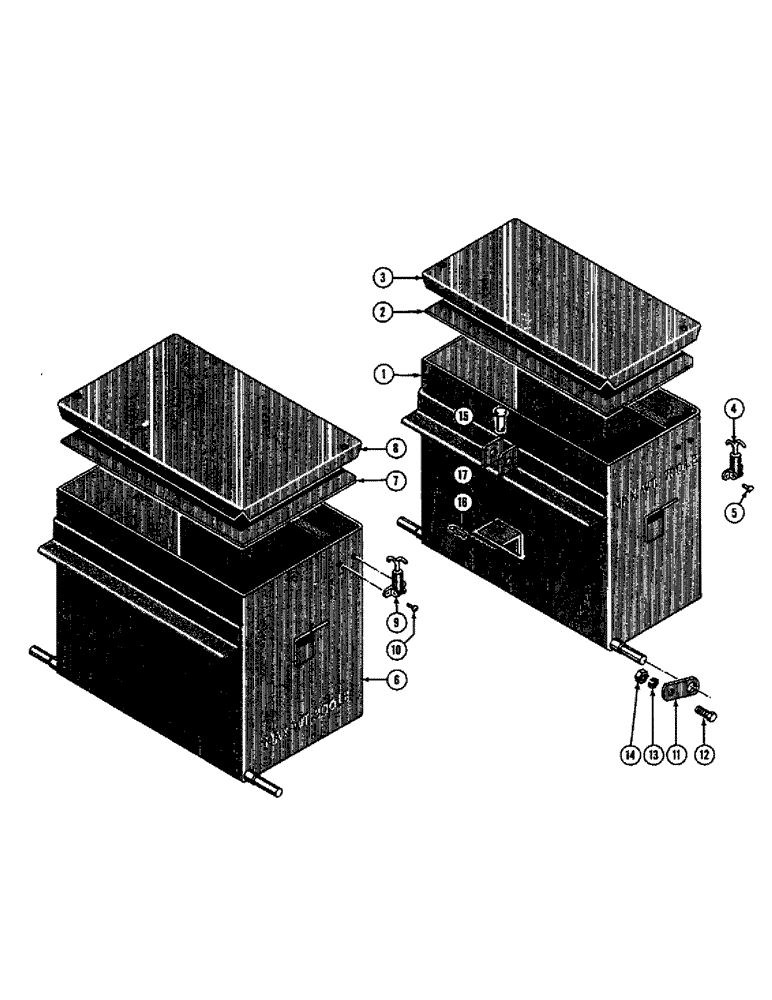

Схема запчастей Case 420B - (25) - 700 POUND AND 900 POUND REAR WEIGHT BOXES, TRACTOR WITH BACKHOE REMOVED

Артикул

Название

Примечание

Количество

1

DR10591

BOX - weight (700#)

1шт.

2

DR10587

SHELF - tool box (700# box)

1шт.

3

DR10589

LID - weight box, 700#

1шт.

4

O3771AB

X

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/4 x 5/16)

4шт.

6

D10270

BOX - weight (900#)

1шт.

7

D21183

SHELF - tool box (900# box)

1шт.

8

D21182

LID - weight box, 900#

1шт.

9

O3771AB

X

CATCH - lid

2шт.

10

45-35

RIVET - button head (3/16 x 5/16)

4шт.

11

DR10594

STRAP - support, weight box (Lower)

2шт.

12

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

HHCS - 3/4 - 16 NF x 1-1/2

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

14

25-1112

NUT,3/4"-16, G5

- hex (3/4 - 16 NF) (48107)

2шт.

15

VT2969

X

PIN - support

1шт.

16

VC1419

X

PIN - cotter (Hairpin)

1шт.

17

DR15093

SUPPORT - weight box, upper (Welded onto backhoe mounting plate)

1шт.

Выбрано товаров: 17
