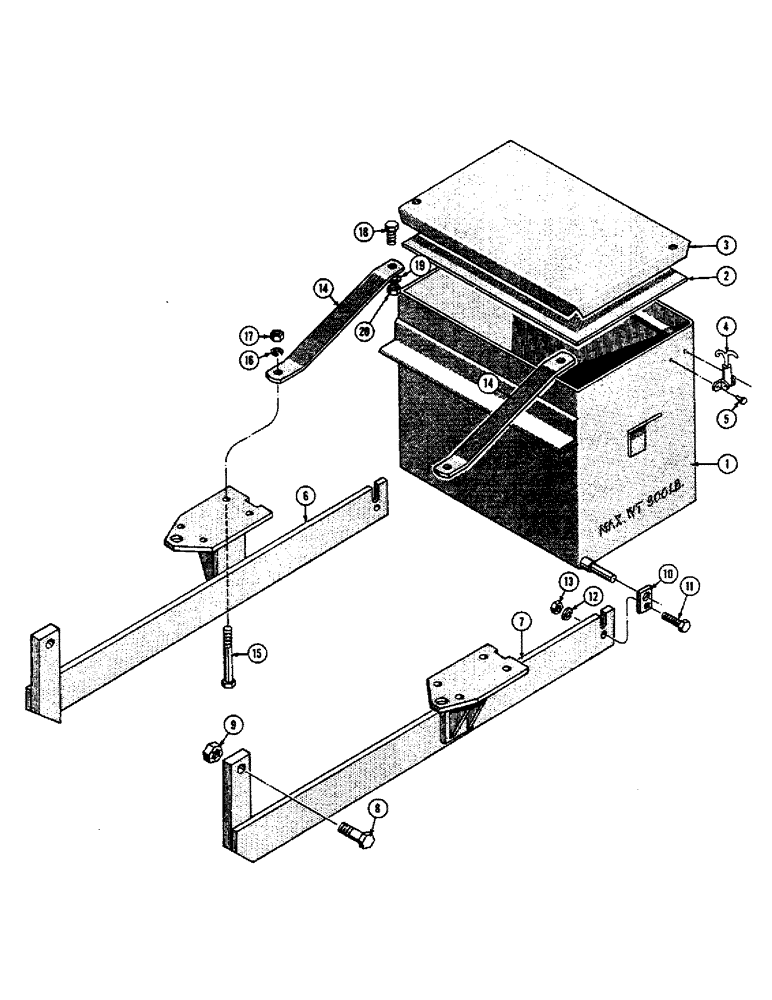

Запчасти Case 420B (24) - 900 POUND REAR WEIGHT BOX, TRACTOR WITH TERRALOADR

1

D10270

BOX - weight (900#)

1шт.

2

D21183

SHELF - tool box

1шт.

3

D21182

LID - weight box

1шт.

4

O3771AB

X

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/16 x 5/16)

4шт.

6

DR10596

ARM - support, RH

1шт.

7

DR10597

ARM - support, LH

1шт.

8

14-1656

HHCS - 1 - 14 NF x 3-1/2

2шт.

9

129-500

WING NUT,#10-32

NUT - lock (1 - 14 NF) (11937)

2шт.

10

DR10733

STRAP - mounting, weight box (Lower)

2шт.

11

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4 (45707)

2шт.

12

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

13

25-118

NUT,1/2"-20, G5

- hex (1/2 - 20 NF) (48104)

2шт.

14

DR10604

STRAP - support, weight box (Upper)

2шт.

15

14-10120

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

HHCS - 5/8 - 18 NF x 7-1/2 (46966)

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (48450) 5/8"

2шт.

17

25-1110

NUT,5/8"-18, G5

- hex (5/8 - 18 NF) (48106)

2шт.

18

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4 - 16 NF x 1-3/4 (45784)

2шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

20

25-1112

NUT,3/4"-16, G5

- hex (3/4 - 16 NF) (48107)

2шт.
