Запчасти Case 420B (22) - D20411 AND D20412 TERRALOADR HYDRAULIC BUCKET CYLINDERS

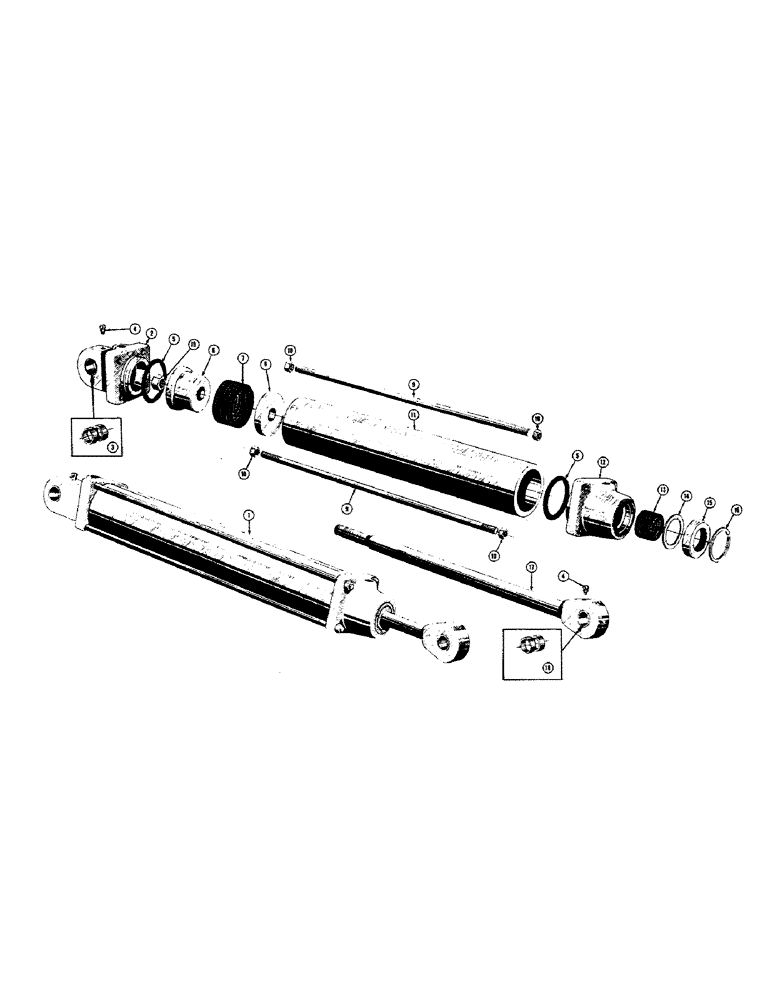

Схема запчастей Case 420B - (22) - D20411 AND D20412 TERRALOADR HYDRAULIC BUCKET CYLINDERS

Артикул

Название

Примечание

Количество

1

D20411

CYLINDER - bucket, hydraulic (LH)

1шт.

1

D20412

CYLINDER - bucket, hydraulic (RH)

1шт.

2

D20038

END - cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8 NPT - 67-1/2 degrees (Lincoln #5300) (49215)

2шт.

5

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal

2шт.

6

30631

X

PISTON - cylinder

1шт.

7

17598

PACKING

- piston

1шт.

8

30630

CARTRIDGE

WASHER - piston packing

1шт.

9

39857

GASKET

ROD - tie

4шт.

10

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24 NF) (17606)

8шт.

11

NLS

NO LONGER SERVICED

TUBE - cylinder (39859)

1шт.

12

30628

CAP - end, cylinder

1шт.

13

17597

PACKING

- rod

1шт.

14

36259

WASHER

- packing, piston rod

1шт.

15

17603

WIPER SEAL

- wiper, piston rod

1шт.

16

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

17

D20405

ROD - piston

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke

2шт.

19

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex (3/4 - 16 castle)

1шт.

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

Выбрано товаров: 21
