Запчасти Case 420B (21) - D20700 TERRALOADR HYDRAULIC LIFT CYLINDERS

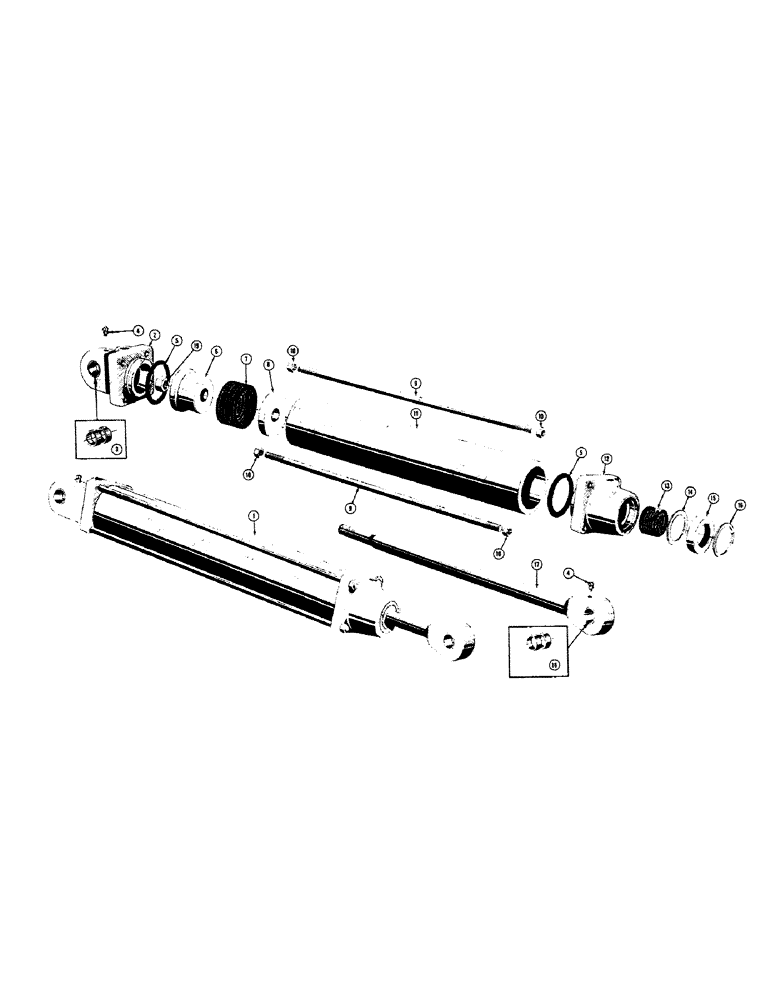

Схема запчастей Case 420B - (21) - D20700 TERRALOADR HYDRAULIC LIFT CYLINDERS

Артикул

Название

Примечание

Количество

1

D20700

CYLINDER - lift, hydraulic

1шт.

2

D20052

END - cylinder end

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NPT straight (Lincoln #5000) (49200)

2шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

"O" RING - seal

2шт.

6

31663

X

PISTON - cylinder

1шт.

7

31662

PACKING

- piston

1шт.

8

31661

WASHER

- piston packing

1шт.

9

D20797

ROD - tie

4шт.

10

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF) (17586)

8шт.

11

D20701

TUBE - cylinder

1шт.

12

32486

RATCHET

CAP - end, cylinder

1шт.

13

17577

PACKING

- rod

1шт.

14

70740

WASHER

- packing, piston rod

1шт.

15

17583

WIPER SEAL

- wiper, piston rod

1шт.

16

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

17

D20794

ROD ASSY.

ROD - piston

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke

2шт.

19

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - hex (3/4 - 16 castle)

1шт.

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

Выбрано товаров: 20
