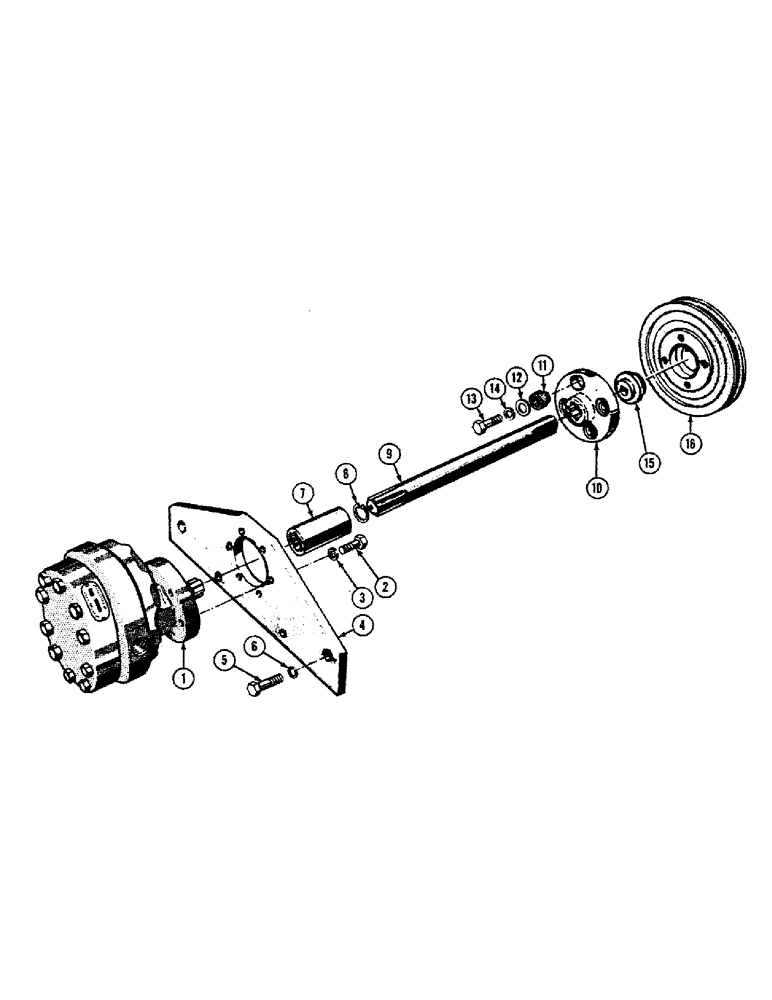

Запчасти Case 420B (20) - TERRALOADR, BACKHOE HYDRAULIC PUMP DRIVE

1

39582

PUMP, HYDRAULIC

PUMP - hydraulic, loader and backhoe (See Figure 18)

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8 - 16 NC x 1-1/2 (45058)

6шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (48446) 3/8"

6шт.

4

D20895

BRACKET - pump mounting

1шт.

5

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(45185) Hex, 3/4"-10 x 2", G5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

2шт.

7

NLS

NO LONGER SERVICED

-, Serial Range: shaft-pump

1шт.

8

36281

X

SNAP RING -, Serial Range: coupling-shaft

1шт.

9

DR10512

X

SHAFT - hydraulic pump drive

1шт.

10

G36217

HUB ASSY.

COUPLING - flexible, pump drive, Serial Range: shaft-pulley

1шт.

11

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

12

VT3340

X

WASHER - coupling bolt (3/4" O.D. x 29/64" I.D.)

4шт.

13

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (45083)

4шт.

14

92-7

LOCK WASHER,7/16"

WASHER, LOCK, (48447) 7/16"

4шт.

15

G11263

NUT

- fan drive pulley

1шт.

16

G1162

X

PULLEY - fan and generator drive

1шт.
