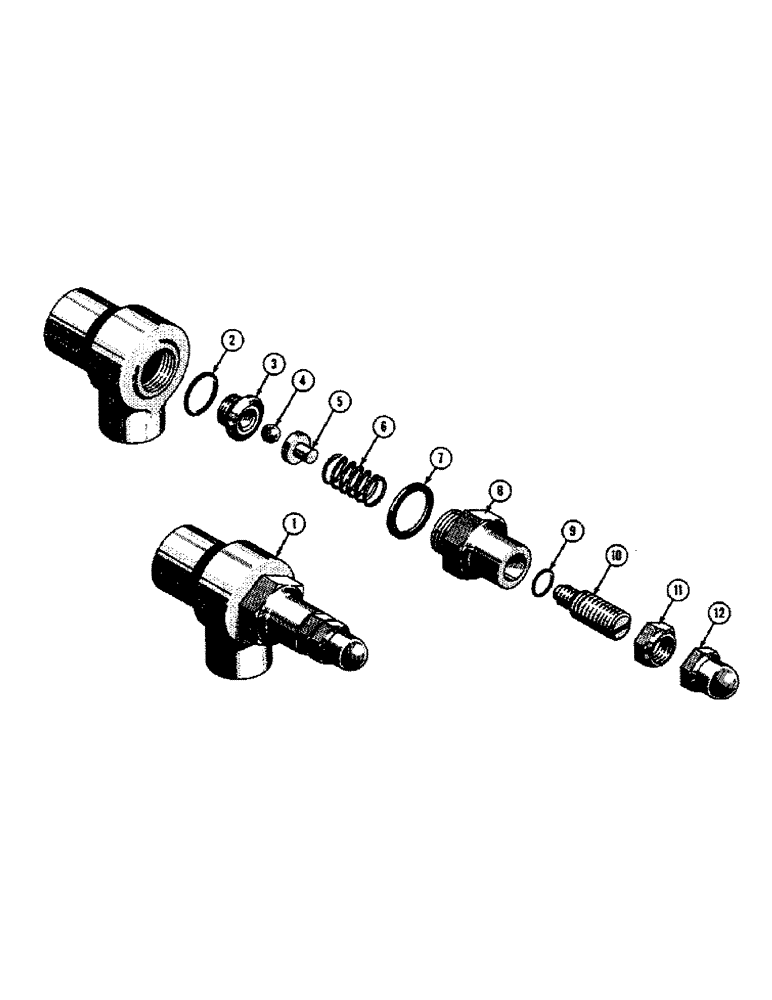

Запчасти Case 420B (19) - 33959 SPECIAL RELIEF VALVE, TERRALOADR AND BACKHOE

1

NLS

NO LONGER SERVICED

VALVE - relief

2шт.

2

34118

X

"O" RING - seal

1шт.

3

34119

SEAT, VALVE

SEAT - valve

1шт.

4

O7210AB

X

BALL - relief valve

1шт.

5

CAS34120

BUSHING

SPACER - spring

1шт.

6

34114

VALVE, PRESSURE RELI

SPRING - relief valve

1шт.

7

34115

GASKET

- body cap

1шт.

8

34113

BODY

CAP - hex, body

1шт.

9

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

"O"RING - seal

1шт.

10

34110

ADJUSTMENT SCREW

- adjusting

1шт.

11

34111

X

NUT - hex jam

1шт.

12

34109

NUT - acorn

1шт.
