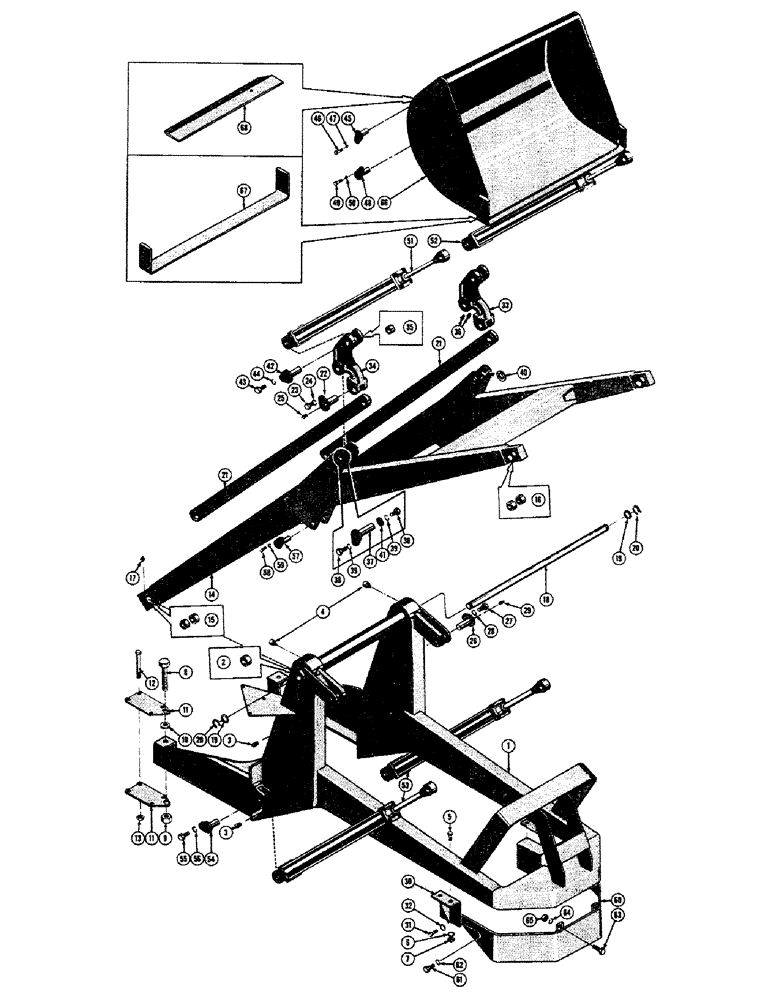

Запчасти Case 420B (04) - FRAME, LIFT ARM, BUCKET, AND CYLINDERS

1

D20705

FRAME - complete

1шт.

2

DR10018

BUSHING - cross shaft

2шт.

3

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - hudraulic oil reservoirs (1" NPT)

4шт.

4

31543

BREATHER

- hydraulic oil tank

2шт.

5

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2 - 20 NF x 1-1/2 (45708)

4шт.

6

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

7

25-118

NUT,1/2"-20, G5

- hex (1/2 - 20 NF) (48104)

4шт.

8

16-16120

X

HHCS - 1-14 NF x 7-1/2 (45852)

2шт.

9

131-370

LOCK NUT

NUT - hex, locknut (1 - 14) (17585)

2шт.

10

195-53

WASHER,1" x 2" x .134"

- plain (1-1/16" I.D. x 2" O.D.) (48436)

2шт.

11

DR10002

BRACKER - frame to rear axle

4шт.

12

14-10120

BOLT,Hex, 5/8" - 18 x 7-1/2", Gr 5

HHCS - 5/8 - 18 NF x 7-1/2

8шт.

13

131-154

LOCK NUT,5/8"-18, GA

NUT - hex, locknut (5/8 - 18 NF) (11946)

8шт.

14

D20731

ARM - lift

1шт.

15

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- lift arm (Rear)

4шт.

16

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- lift arm (Front)

4шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) (49217) 90º, 1/8" NPT x .84" lg

2шт.

18

DR10000

SHAFT - cross, lift arm pivot

1шт.

19

DR10004

WASHER

- cross shaft (1-17/32 I.D. x 2-1/2" O.D. x 1/8")

2шт.

20

DR10197

X

SNAP RING - cross shaft retaining

2шт.

21

DR10745

ROD - leveling

2шт.

22

D21230

PIN - leveling rod, front

2шт.

23

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

24

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NP - straight (Lincoln #5000) (49200)

2шт.

26

D20724

PIN - leveling arm, rear

2шт.

27

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

28

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 NP - straight (Lincoln #5000) (49200)

2шт.

30

DR10204

BRACKET - mounting, frame (Front)

2шт.

31

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (48452) 3/4"

8шт.

33

DR10752

LEVER - leveling, LH

1шт.

34

DR10753

LEVER - leveling, RH

1шт.

35

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- leveling levers

8шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Lincoln #5400) (49217) 90º, 1/8" NPT x .84" lg

4шт.

37

DR10766

PIN - leveling lever to lift arm

2шт.

38

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

4шт.

39

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

40

32625

WASHER - spacer, pin (2-1/2" O.D. x I.D. x 11/64")

2шт.

41

DR10768

WASHER

- retaining, pin (2" O.D. x 9/16" x 1/4") (If used)

2шт.

42

36117

PIN - leveling lever to bucket cylinder

2шт.

43

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

44

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

45

D21218

PIN - bucket, Serial Range: cylinder-bucket

2шт.

46

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

47

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

48

36117

PIN - lift, Serial Range: arm-bucket

2шт.

49

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

50

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

51

D20412

CYLINDER - bucket, hydraulic (RH) (See Figure 22)

1шт.

52

D20411

CYLINDER - bucket, hydraulic (LH) (See Figure 22)

1шт.

53

D20700

CYLINDER - loader lift, hydraulic (See Figure 21)

2шт.

54

36117

PIN - lift, Serial Range: cylinder-frame

2шт.

55

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

56

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

57

D21235

PIN - lift cylinder to lift arm

2шт.

58

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2 - 20 NF x 1 (45706)

2шт.

59

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

60

D21274

GUARD - hydraulic pump

1шт.

61

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2 - 20 NF x 3/4 (45704)

2шт.

62

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

63

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2 - 20 NF x 1-1/4 (45707)

2шт.

64

92-8

LOCK WASHER,1/2"

(48448) 1/2"

2шт.

65

25-118

NUT,1/2"-20, G5

- hex (1/2 - 20 NF) (48104)

2шт.

66

DR10538M

BUCKET - 12.2 cu. ft. (63-3/8 outside width) Standard (Machinery item)

1шт.

67

DR10209

EDGE

BLADE - cutting

1шт.

68

D10235

GUARD - spill

1шт.

DR10539M

BUCKET - 17.1 cu. ft. (79-3/8 outside width) (Machinery items)

1шт.

D20549

EDGE

BLADE - cutting

1шт.

D10387M

BUCKET - 22.5 cu. ft. (Snow) (Machinery item)

1шт.

D20549

EDGE

BLADE - cutting

1шт.

D10388M

BUCKET - 14.6 cu. ft. (Dry materials) (Machinery item)

1шт.

DR10209

EDGE

BLADE - cutting

1шт.
