(140) - 1400 LB. COUNTERWEIGHT, (WITH BACKHOE REMOVED)

Запчасти Case 32S (140) - 1400 LB. COUNTERWEIGHT, (WITH BACKHOE REMOVED)

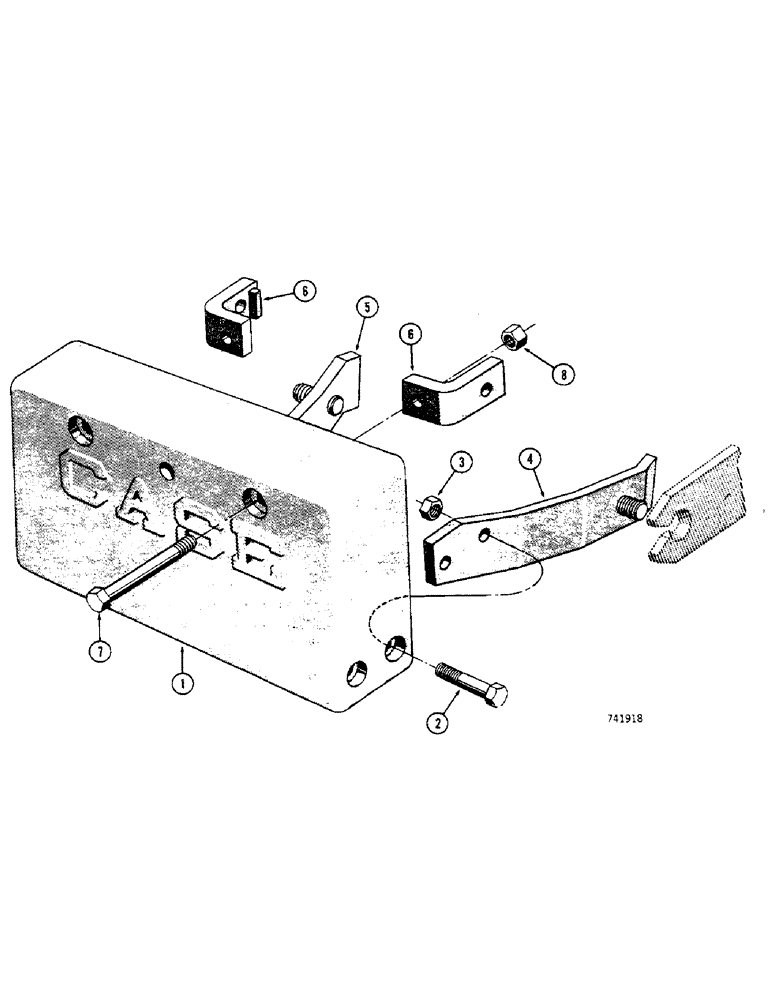

Схема запчастей Case 32S - (140) - 1400 LB. COUNTERWEIGHT, (WITH BACKHOE REMOVED)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D31204

BALANCER

COUNTERWEIGHT - 1400 lbs.

1шт.

2

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - hex., lock (1"-8 N.C.)

4шт.

4

D31528

SUPPORT

ARM - support, R.H.

1шт.

5

D31529

SUPPORT

ARM - support, L.H.

1шт.

6

D31530

BRACKET

- attaching top

2шт.

7

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

8

230-41116

NUT,1"-8, GA

NUT - hex., lock (1"-8 N.C.)

2шт.
