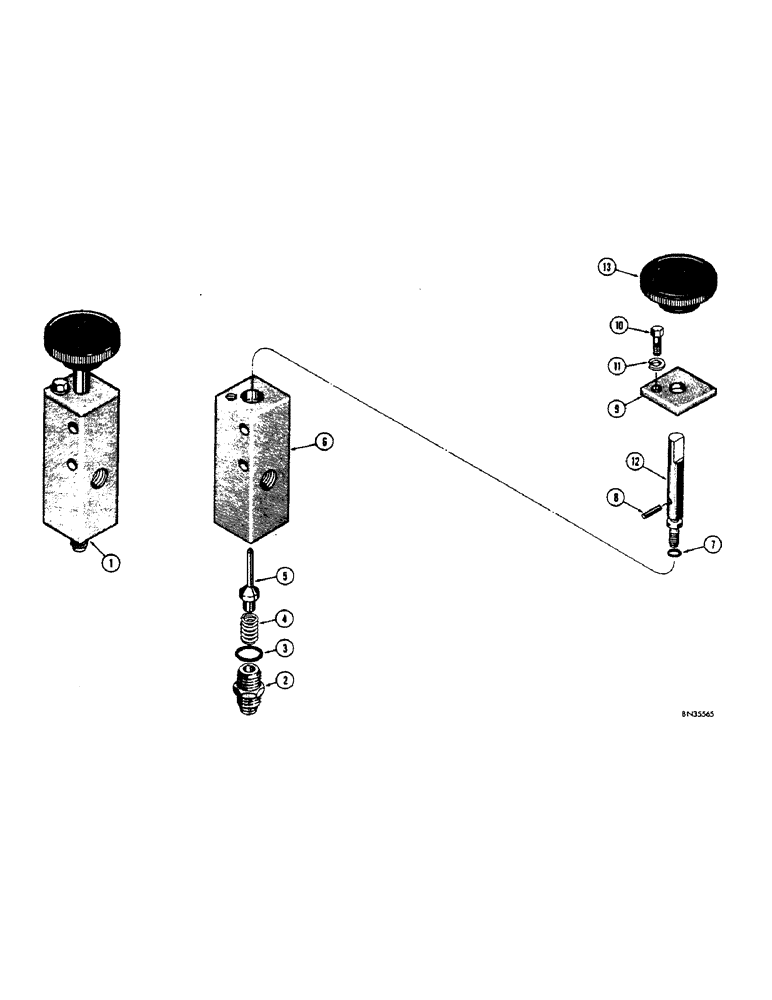

Запчасти Case 32S (135A) - 32-S BACKHOE LOCKING VALVE D36662

1

D36662

PISTON

VALVE - hyd. locking complete, Includes: Ref. 2 - 13

1шт.

2

218-5079

HYD CONNECTOR,1/2" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - 3/8" JIC X 3/8" JIC, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5079 connector

1шт.

4

D36669

SPRING

- valve

1шт.

5

D36668

X

POPPET - valve

1шт.

6

D36663

HOUSING - valve

1шт.

7

O9772AB

X

SEAL - "O" ring

1шт.

8

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN, 3/32" x 9/16", Slotted

1шт.

9

D36665

RETAINER

- shaft

1шт.

10

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

D36664

SHAFT - control

1шт.

13

D36667

KNOB

- control

1шт.

321-907

DECAL

- lock valve

1шт.
