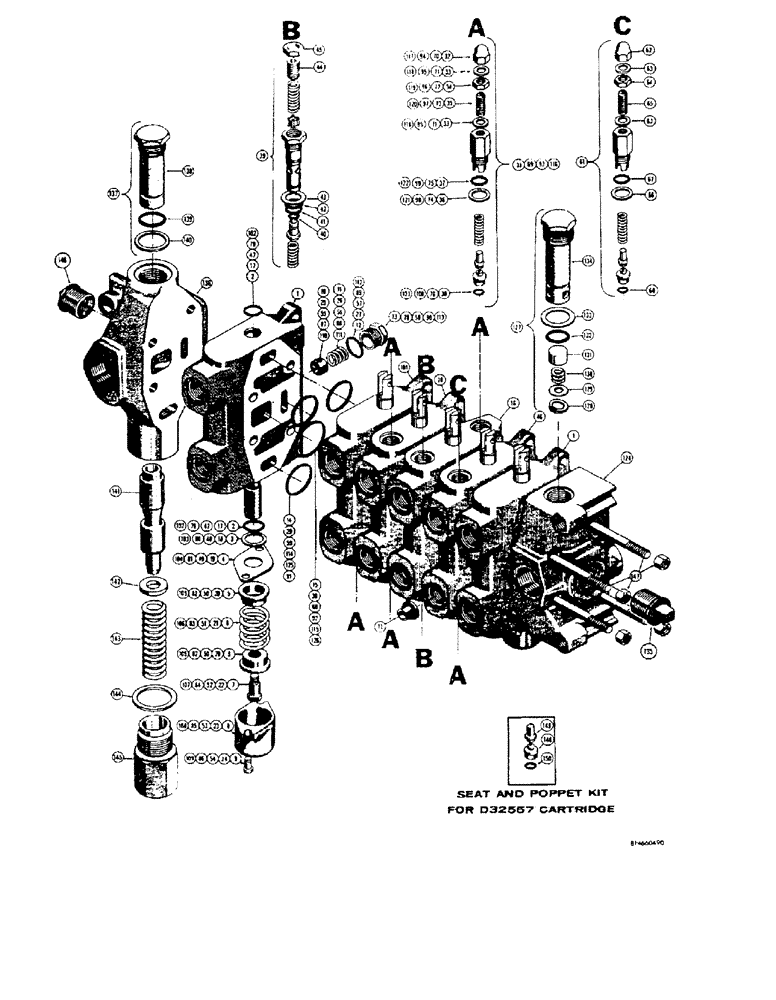

Запчасти Case 32S (125A) - 32-S BACKHOE VALVE D36658

D36658

VALVE - control, backhoe, Includes: Ref. 1 - 147

1шт.

1

D26842

ELEMENT

SECTION - valve, stabilizer, Includes: Ref. 2 - 15

2шт.

2

O8416AB

X

SEAL - "O" ring, spool (For service of upper or lower "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

3

D26829

RING

- backup

1шт.

4

D26830

PLATE

- retaining

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering

1шт.

7

D26833

BOLT

- stripper

1шт.

8

D26823

CAP

- valve

1шт.

9

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach., sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

10

D26824

SPOOL

POPPET - check valve

1шт.

11

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

13

D30696

CYLINDER END CAP

CAP - check valve

1шт.

14

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

15

CASL35522

SEAL

QUAD RING - section

1шт.

16

D36597

X

SECTION - valve, swing, Includes: Ref. 17 - 45

1шт.

17

O8417AB

SEAL - "O" ring, spool (For service of upper or lower "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

18

D26829

RING

- backup

1шт.

19

D26830

PLATE

- retaining

1шт.

20

D26831

GUIDE

- spring

2шт.

21

D26832

SPRING

- centering

1шт.

22

D26833

BOLT

- stripper

1шт.

23

D26823

CAP

- valve

1шт.

24

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach., sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

25

D26824

SPOOL

POPPET - check valve

1шт.

26

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

27

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

28

D30696

CYLINDER END CAP

CAP - check valve

1шт.

29

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

30

CASL35522

SEAL

QUAD RING - section

1шт.

31

D32557

CARTRIDGE

- secondary relief, adj. (For seat and poppet kit, see refs 148 - 150), Includes: Ref. 32 - 38

1шт.

32

129-526

CROWN NUT,Low, 3/8" - 24

- cap (3/8" - 24 NF)

1шт.

33

D32560

X

GASKET - copper-lead

2шт.

34

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam (3/8" - 24 NF)

1шт.

35

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set (3/8" - 24 NF x 1")

1шт.

36

D31450

WASHER

- gasket

1шт.

37

D26872

O-RING

SEAL - "O" ring, outer

1шт.

38

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

39

D26838

FILTER

CARTRIDGE - relief, cross-over (Color code - brown) 1300 P.S.I. preset at factory, Includes: Ref. 40 - 45

2шт.

40

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, poppet

1шт.

41

D31412

O-RING

SEAL - "O" ring, shell (Lower)

1шт.

42

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring, shell (Upper)

1шт.

43

D26870

GASKET

WASHER - gasket

1шт.

44

D26878

X

SCREW - set, adj.

1шт.

45

D26879

LOCK NUT

NUT - lock

1шт.

46

D36596

SECTION - valve, boom, Includes: Ref. 47 - 76

1шт.

47

O8416AB

X

SEAL - "O" ring, spool (For service of upper or lower "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

48

D26829

RING

- backup

1шт.

49

D26830

PLATE

- retaining

1шт.

50

D26831

GUIDE

- spring

2шт.

51

D26832

SPRING

- centering

1шт.

52

D26833

BOLT

- stripper

1шт.

53

D26823

CAP

- valve

1шт.

54

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach., sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

55

D26824

SPOOL

POPPET - check valve

1шт.

56

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

57

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

58

D30696

CYLINDER END CAP

CAP - check valve

1шт.

59

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

60

CASL35522

SEAL

QUAD RING - section

1шт.

61

D32556

CARTRIDGE

- boom down pressure relief, adjustable, Includes: Ref. 62 - 68

1шт.

62

129-526

CROWN NUT,Low, 3/8" - 24

- cap, (3/8" - 24 NF)

1шт.

63

D32560

X

GASKET - copper-lead

2шт.

64

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

65

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1" long

1шт.

66

D31450

WASHER

- gasket

1шт.

67

D26872

O-RING

SEAL - "O" ring, outer

1шт.

68

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

69

D32557

CARTRIDGE

- boom down pressure relief, adj. (For seat and poppet kit, see refs 148 - 150), Includes: Ref. 70 - 76

1шт.

70

129-526

CROWN NUT,Low, 3/8" - 24

- cap, 3/8" - 24 NF

1шт.

71

D32560

X

GASKET - copper-lead

2шт.

72

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

1шт.

73

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1" long

1шт.

74

D31450

WASHER

- gasket

1шт.

75

D26872

O-RING

SEAL - "O" ring, outer

1шт.

76

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

77

D27565

VALVE

CHECK - restrictor (7/32" dia. orifice)

1шт.

78

D36812

SECTION - valve, crowd, Includes: Ref. 79 - 100

1шт.

79

O8416AB

X

SEAL - "O" ring, spool (For service of upper or lower "O" ring, use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

80

D26829

RING

- backup

1шт.

81

D26830

PLATE

- retaining

1шт.

82

D26831

GUIDE

- spring

2шт.

83

D26832

SPRING

- centering

1шт.

84

D26833

BOLT

- stripper

1шт.

85

D26823

CAP

- valve

1шт.

86

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach. sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

87

D26824

SPOOL

POPPET - check valve

1шт.

88

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

89

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

90

D30696

CYLINDER END CAP

CAP - check valve

1шт.

91

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

92

CASL35522

SEAL

QUAD RING - section

1шт.

93

D32557

CARTRIDGE

- secondary relief, adj. (For seat and poppet kit see refs 148 - 150), Includes: Ref. 94 - 100

2шт.

94

129-526

CROWN NUT,Low, 3/8" - 24

- cap, (3/8" - 24 NF)

1шт.

95

D32560

X

GASKET - copper-lead

2шт.

96

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, (3/8" - 24 NF)

1шт.

97

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1" long

1шт.

98

D31450

WASHER

- gasket

1шт.

99

D26872

O-RING

SEAL - "O" ring, outer

1шт.

100

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

101

D36823

SECTION - valve, bucket, Includes: Ref. 102 - 123

1шт.

102

O8416AB

X

SEAL - "O" ring, spool (For service of upper or lower "O" ring use D36830)

2шт.

D36830

RING

SEAL - quad ring

1шт.

103

D26829

RING

- backup

1шт.

104

D26830

PLATE

- retaining

1шт.

105

D26831

GUIDE

- spring

2шт.

106

D26832

SPRING

- centering

1шт.

107

D26833

BOLT

- stripper

1шт.

108

D26823

CAP

- valve

1шт.

109

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- mach. sltd. fill. hd. (1/4" - 20 NC x 3/4")

2шт.

110

D26824

SPOOL

POPPET - check valve

1шт.

111

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

112

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

113

D30696

CYLINDER END CAP

CAP - check valve

1шт.

114

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

115

CASL35522

SEAL

QUAD RING - section

1шт.

116

D32557

CARTRIDGE

- secondary relief, adj. (For seat and poppet kit, see refs 148 - 150), Includes: Ref. 117 - 123

1шт.

117

129-526

CROWN NUT,Low, 3/8" - 24

- cap, (3/8" - 24 NF)

1шт.

118

D32560

X

GASKET - copper-lead

2шт.

119

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, (3/8" - 24 NF)

1шт.

120

176-295

SET SCREW,3/8"-24 x 1", Slotted

SCREW - set, 3/8" - 24 NF x 1"

1шт.

121

D31450

WASHER

- gasket

1шт.

122

D26872

O-RING

SEAL - "O" ring, outer

1шт.

123

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner

1шт.

124

D37349

KNIFE SECTION

SECTION - valve, inlet, Includes: Ref. 125 - 135

1шт.

125

D61904

SEALING RING,Square, 2.38mm Thk x 33.34mm ID, 90 Duro

QUAD RING - section

3шт.

126

CASL35522

SEAL

QUAD RING - section

1шт.

127

D31416

LOCK VALVE

VALVE - check complete, Includes: Ref. 128 - 134

1шт.

128

D26858

RING, SNAP

RING - spirolox

1шт.

129

D31420

RING

RETAINER - spring

1шт.

130

D31419

SPRING

- check valve

1шт.

131

D31418

VALVE POPPET

POPPET - check valve

1шт.

132

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

133

D30681

GASKET

WASHER - gasket

1шт.

134

D31417

CARTRIDGE

- check valve

1шт.

135

221-664

PLUG,Hex Hd, 1/2"-14

- pipe, sq. hd. (1/2" NPT)

1шт.

136

D37146

KNIFE SECTION

SECTION - outlet, Includes: Ref. 137 - 147

1шт.

137

D36806

PLUG

ASSEMBLY - complete, Includes: Ref. 138 - 140

1шт.

138

NSS

NOT SOLD SEPARAT

PLUG

1шт.

139

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL

1шт.

140

D30681

GASKET

- copper-lead

1шт.

141

D36599

SPOOL

1шт.

142

D36807

SPACER

1шт.

143

D36600

VALVE SPRING

SPRING

1шт.

144

D36808

GASKET

- cap

1шт.

145

D36805

CAP - valve

1шт.

146

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, sq. hd. (1/2" NPT)

1шт.

147

D26846

STUD

ASSEMBLY - valve

1шт.

D39188

PACKAGE

KIT - seat and poppet, Includes: Ref. 148 - 150

1шт.

148

NSS

NOT SOLD SEPARAT

SEAT

1шт.

149

NSS

NOT SOLD SEPARAT

POPPET

1шт.

150

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.
