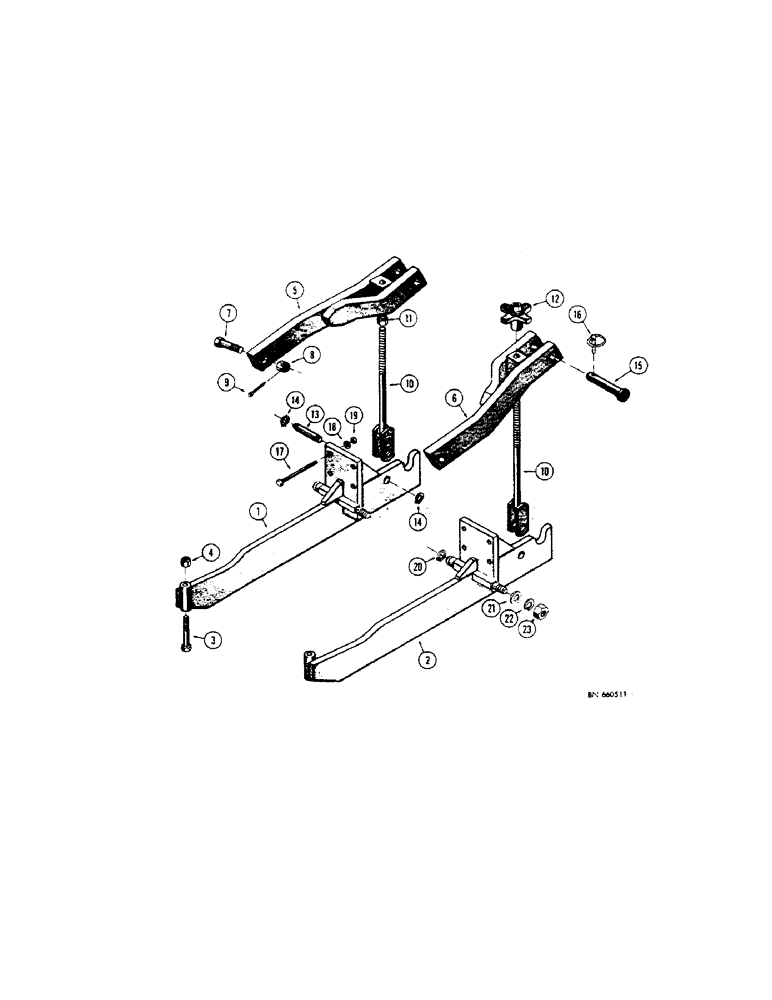

Запчасти Case 32S (079A) - MOUNTING PARTS FOR MODEL 32-S BACKHOE, (WITH P.T.O. AND/OR DRAFT-O-MATIC)

1

D37619

ARM - support R.H.

1шт.

2

D37620

ARM - support L.H.

1шт.

3

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

4

230-41112

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" - 10 NC)

2шт.

5

D38052

STRAP - anchor, R.H.

1шт.

6

D38053

STRAP - anchor, L.H.

1шт.

7

D38061

X

BOLT - special (1-1/4" - 7 UNC x 3-3/4")

2шт.

8

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - castle (1-1/4" - 7 UNC)

2шт.

9

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

10

D37097

ROD

- tension

2шт.

11

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

2шт.

12

D33773

NUT

- star

2шт.

13

D33816

PIN

- 1-1/4" dia.

2шт.

14

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

15

NLS

NO LONGER SERVICED

- anchor

2шт.

16

D33805

PIN

- klik

2шт.

17

113-639

BOLT

HHCS - 5/8" - 11 NC x 8" long

8шт.

18

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

86625068

NUT,5/8"-11, G8

- hex. (5/8" - 11 NC)

8шт.

20

O3658CH

X

RING - retaining

2шт.

21

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

25-1010

NUT,5/8"-11, G5

2шт.
